Air Cleaner Element Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

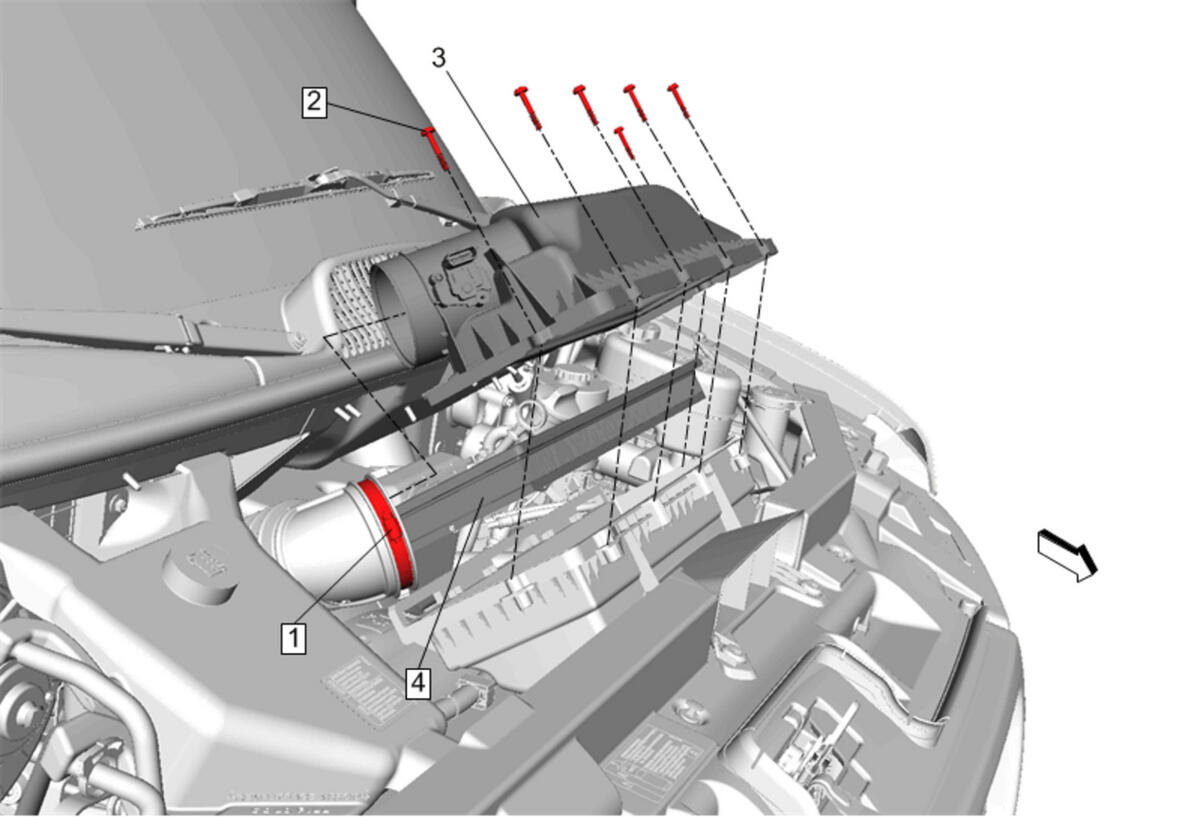

| Callout | Component Name |
|---|---|
| 1 | Air Cleaner Outlet Duct Clamp
CAUTION:
Refer to Fastener Caution . Tighten 4 N.m (35 lb in) |
| 2 | Air Cleaner Upper Housing Bolt[6x] Tighten 4 N.m (35 lb in) |
| 3 | Air Cleaner Upper Housing Procedure Disconnect the electrical connector. |
| 4 | Air Cleaner Element |
