Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:

When installing the vehicle hose, note the following:

  • Route the same way as when removed.
  • Ensure that the hose is free of kinks and is routed clear of sharp objects.
  • Ensure that the vent is not plugged.

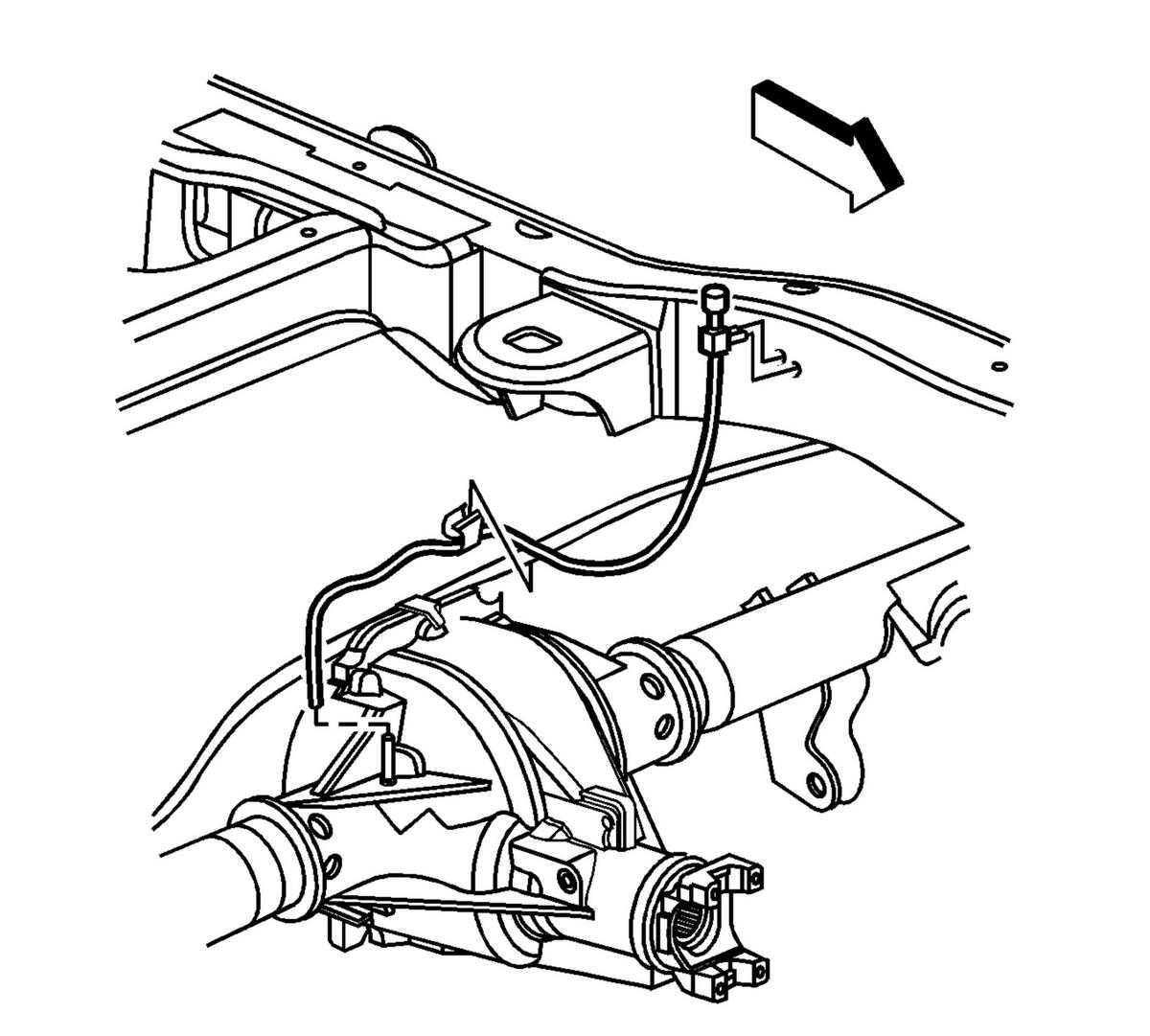

  1. GM1197862

    Install the vent hose to the axle.

  2. Install the vent hose retaining clip to the parking brake cable.
  3. Install the vent hose to the clip attached to the frame.
  4. Lower the vehicle.
