Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Brake Dust Warning .
- Disable the parking brake cable adjuster. Parking Brake Cable Adjuster Disabling
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the rear tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
Parking Brake Rear Cable (2) @ Rear Parking Brake Actuator Lever (1) - Remove - Parking Brake Rear Cable Replacement - Left Side , or Parking Brake Rear Cable Replacement - Right Side
- NOTE:
Do not separate the brake rotor from the wheel hub.
Rear Brake Rotor and Hub Assembly (1) - Remove - Rear Axle Hub, Bearing, Cup, and/or Seal Replacement
Rear Parking Brake Shoe (1) - Remove [2x] - Parking Brake Shoe Replacement (JH6) , or Parking Brake Shoe Replacement (JH9)
Rear Brake Shield (1) - Remove - Rear Brake Shield Replacement (JH9)

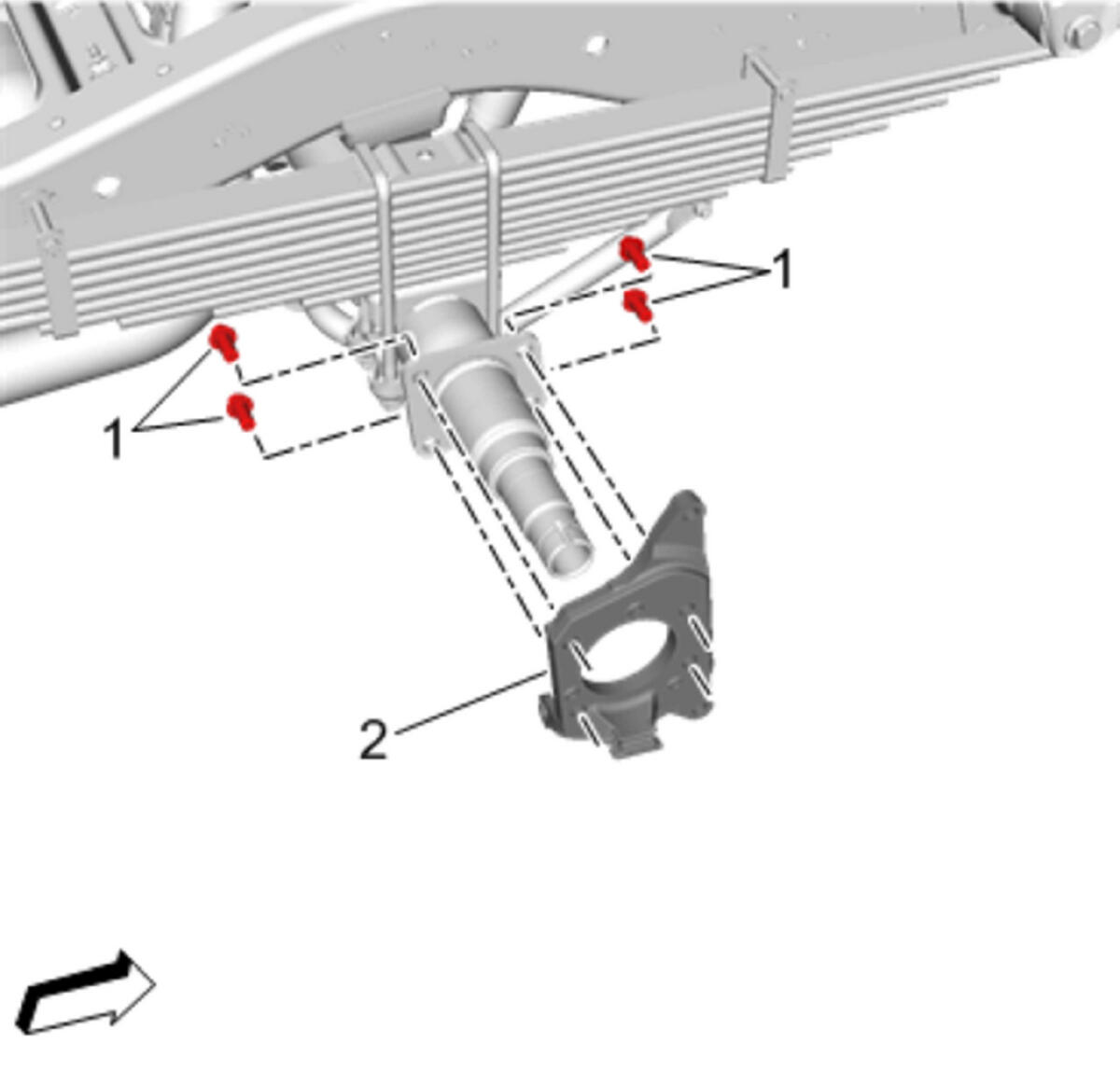

Parking Brake Bolt (1) - Remove [4x]
- Rear Parking Brake Anchor Backing Plate (2) - Remove
