Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Brake Dust Warning .
- Release the parking brake.
- Disable the parking brake cable adjuster. Parking Brake Cable Adjuster Disabling
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
Parking Brake Rear Cable (2) @ Rear Parking Brake Actuator Lever (1) - Remove - Parking Brake Rear Cable Replacement - Left Side , or Parking Brake Rear Cable Replacement - Right Side
Rear Brake Rotor (1) - Remove - Rear Brake Rotor Replacement (JH6) , or Rear Brake Rotor Replacement (JH9)
- NOTE:
It is not necessary to remove the axle shaft, it is shown removed for clarity.
Rear Parking Brake Shoe (1) - Remove [2x] - Parking Brake Shoe Replacement (JH6) , or Parking Brake Shoe Replacement (JH9)

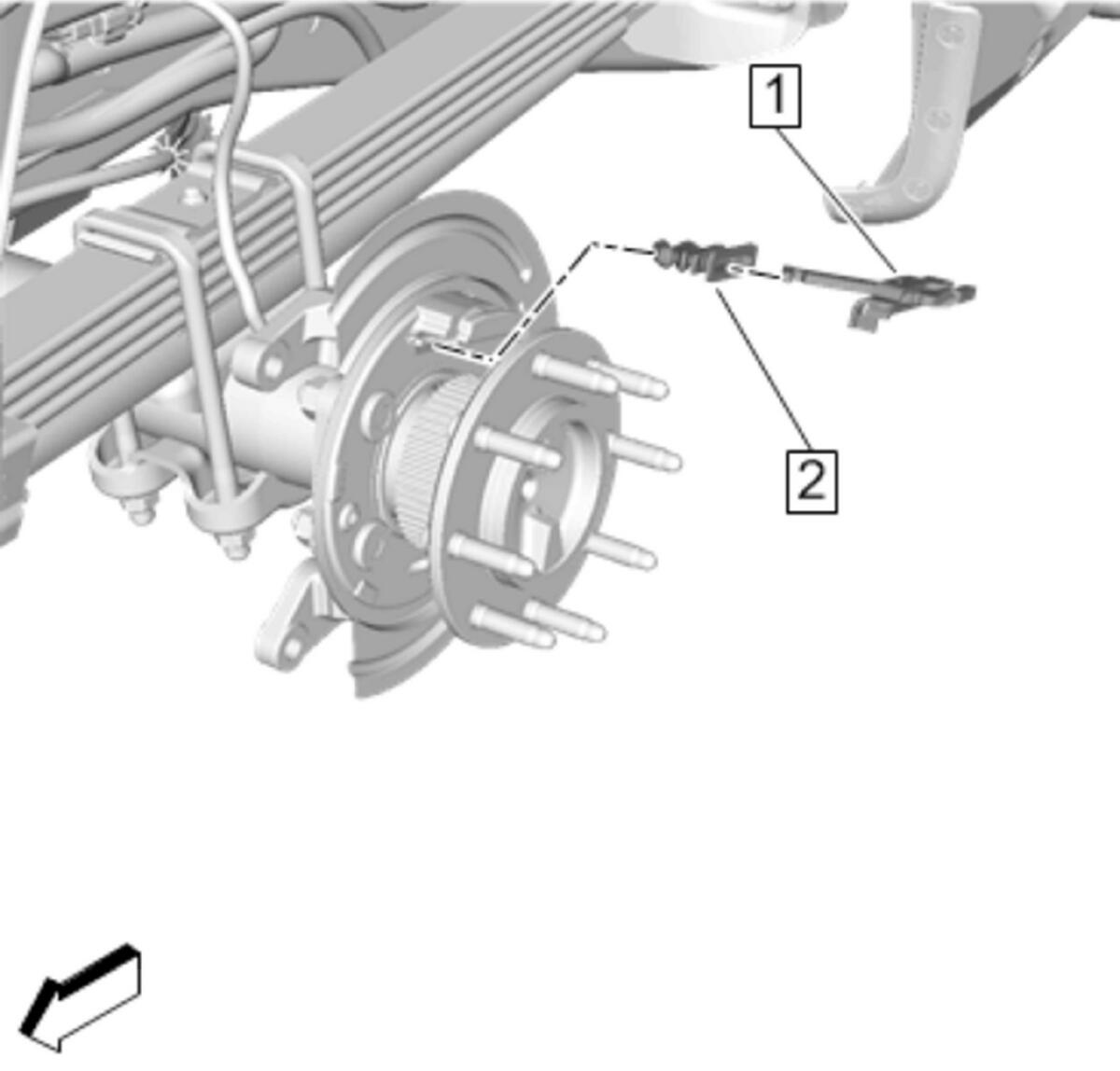

Rear Parking Brake Actuator Lever (1) - Remove
- Rear Parking Brake Actuator Boot (2) @ Rear Parking Brake Actuator Lever (1) - Separate
