Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Parking Brake Lever Handle (2) - Remove - Parking Brake Lever Handle Replacement
Body Hinge Pillar Trim Panel (1) - Remove - Body Hinge Pillar Trim Panel Replacement
Floor Air Outlet Duct - Left Side (2) - Remove - Floor Air Outlet Duct Replacement - Left Side
- NOTE:
It is only necessary to reposition the parking brake control module without disconnecting the parking brake front cable.
Parking Brake Control Module (2) - Reposition - Parking Brake Control Module Replacement
- Disconnect the electrical connector.

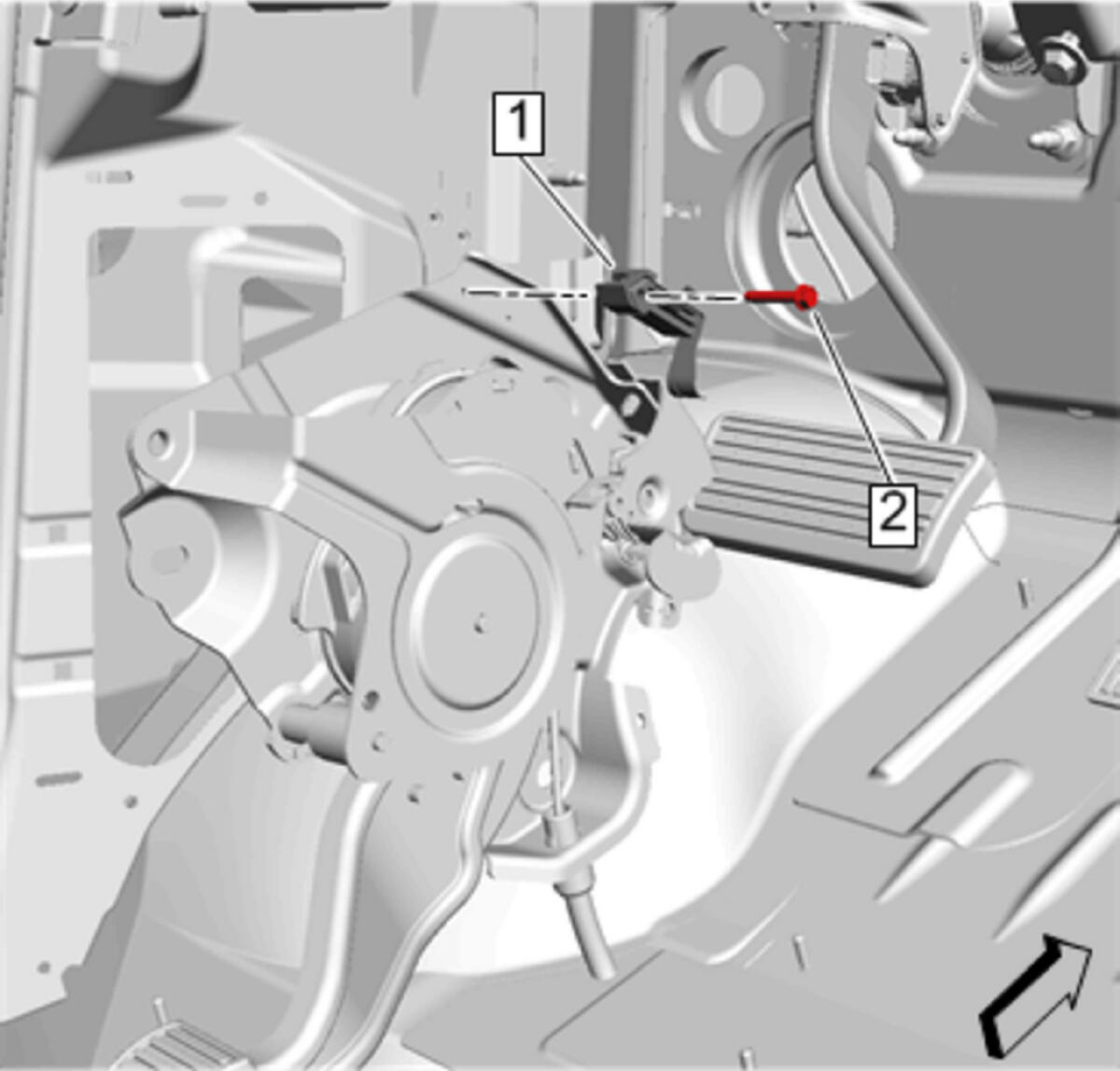

Parking Brake Actuator Position Switch Bolt (2) - Remove
- Parking Brake Switch (1) - Remove
