Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Route the right parking brake rear cable as previously noted. Pass the right parking brake rear cable through the parking brake rear cable guides and frame brackets as necessary.

Parking Brake Rear Cable- Right Side (2) - Install

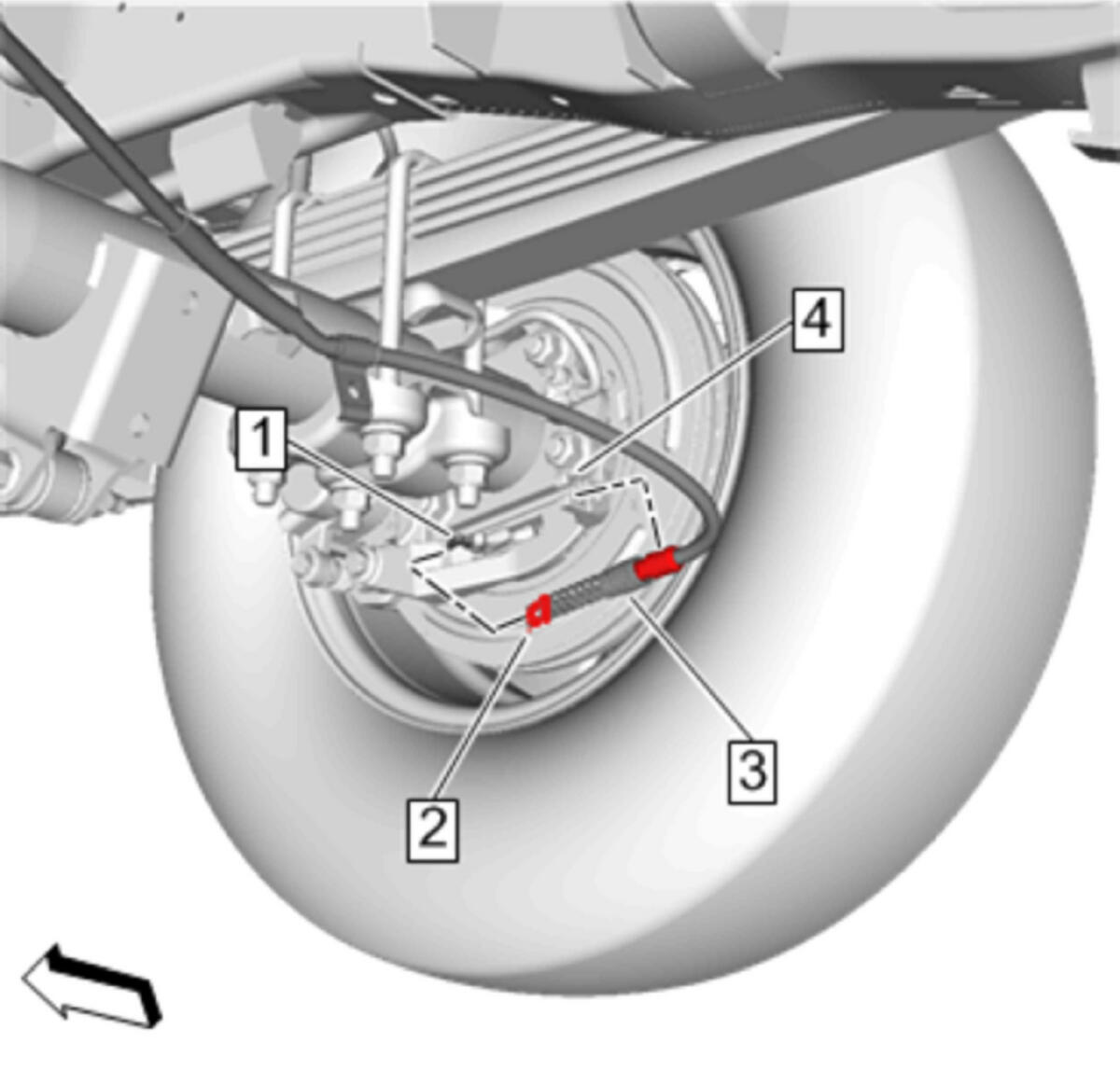

Parking Brake Rear Cable- Right Side (2) @ Rear Parking Brake Actuator Lever (1) - Install
Perform the following procedure to install the right parking brake rear cable (2) to the rear parking brake anchor backing plate (4).
1. Compress the right parking brake rear cable spring (3) by pushing toward the rear parking brake actuator lever (1).
2. Route the right parking brake rear cable (2) through the slot in the rear parking brake anchor backing plate.
3. Push the right parking brake rear cable housing into the rear parking brake anchor backing plate (4) until the locking tabs snap into place.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

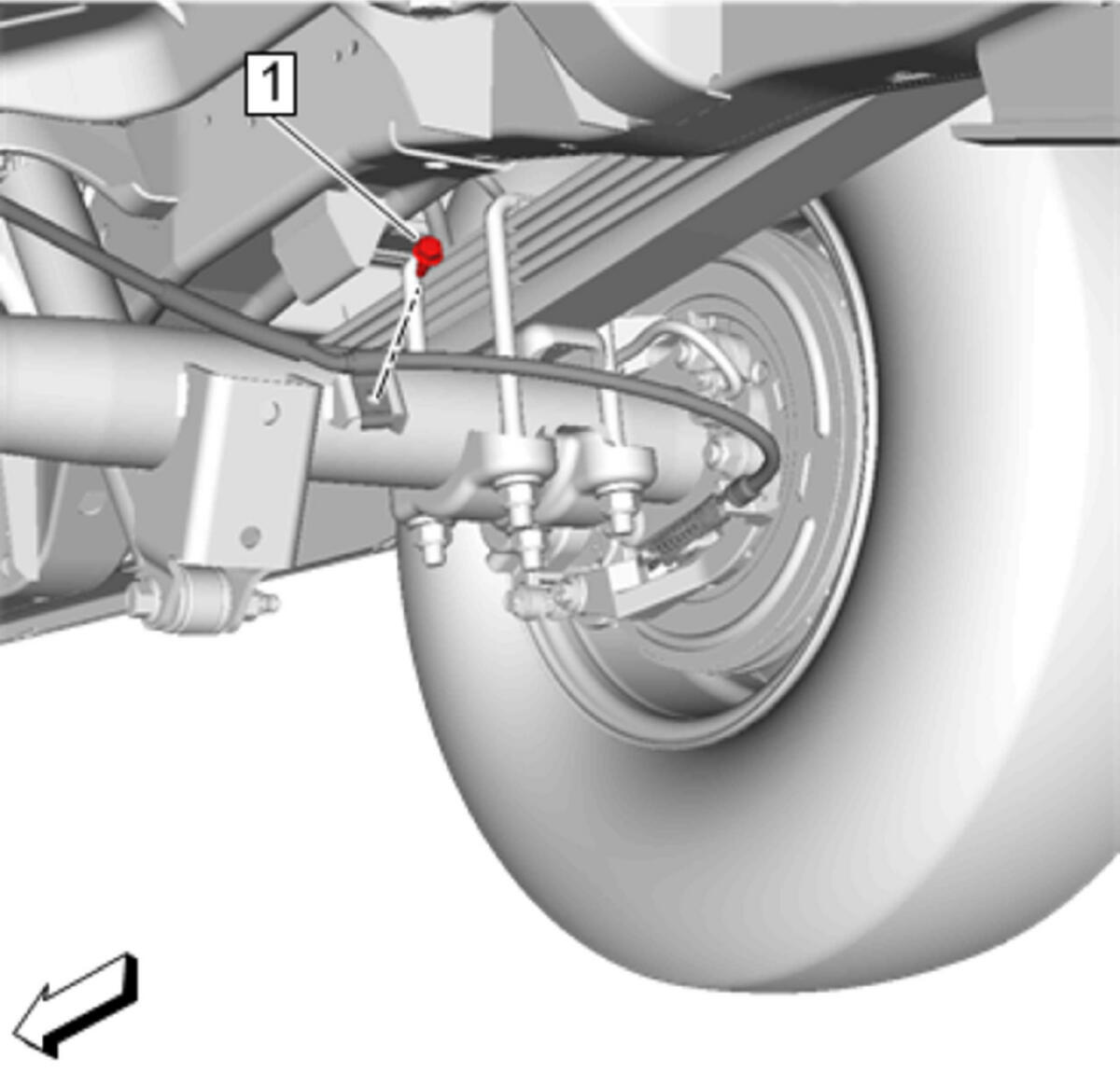

Parking Brake Rear Cable Clip Bolt (1) - Install and tighten13 N.m (115 lb in)
Courtesy of GENERAL MOTORS COMPANY

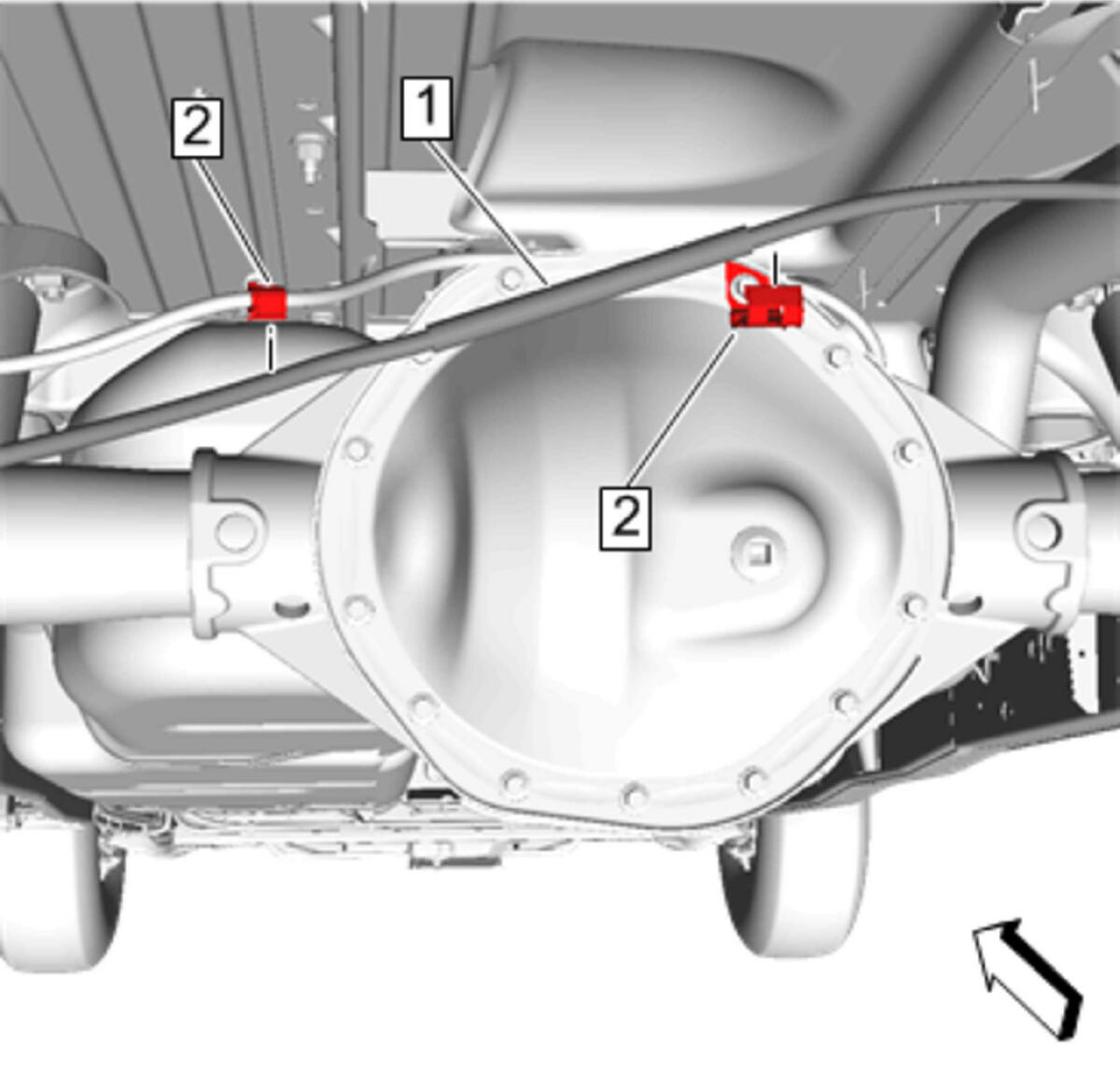

Parking Brake Rear Cable- Right Side (1) @ Parking Brake Rear Cable Clip (2) - Engage [2x]
Courtesy of GENERAL MOTORS COMPANY

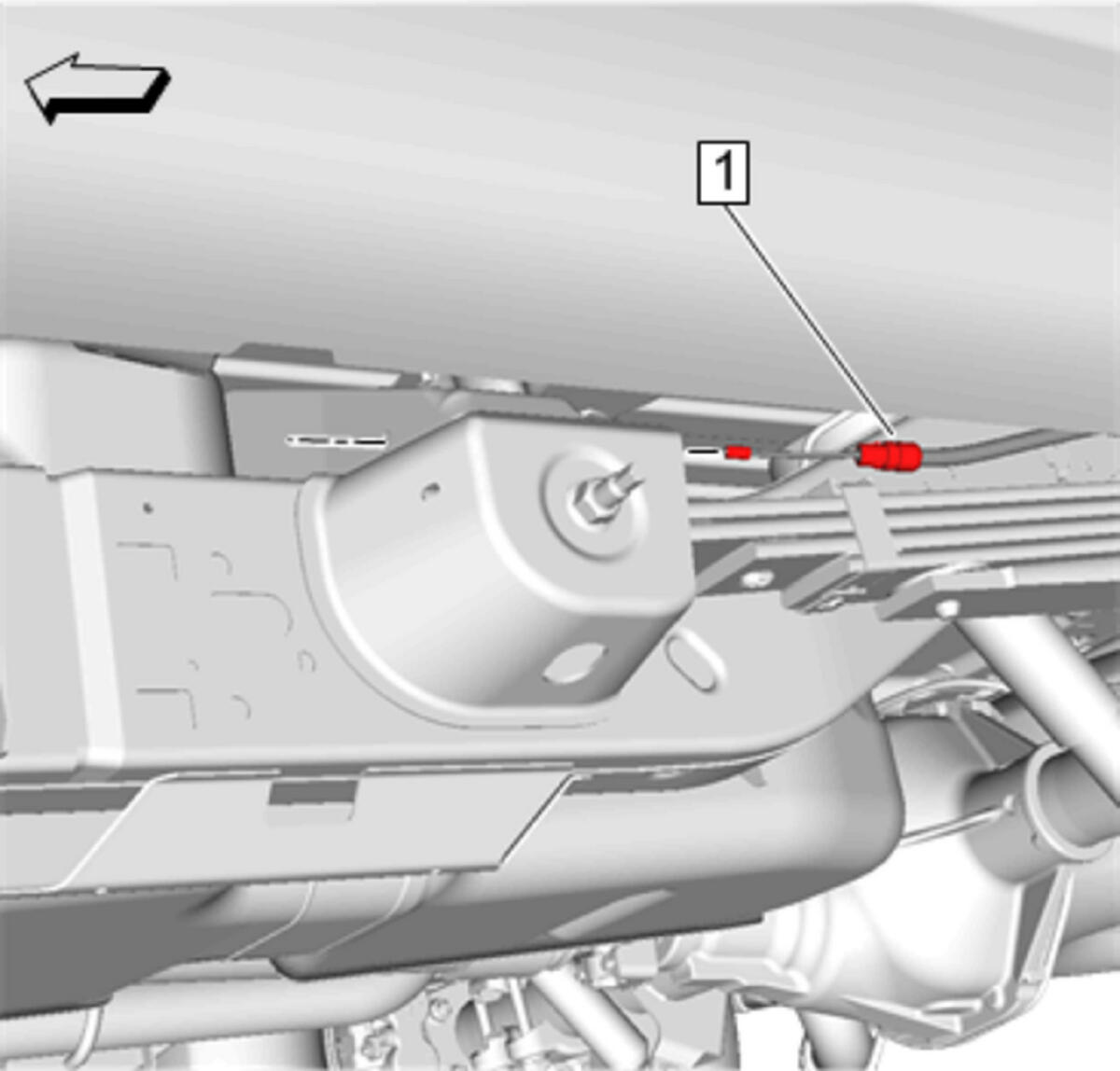

Parking Brake Rear Cable- Right Side (1) @ Frame - Install
Courtesy of GENERAL MOTORS COMPANY

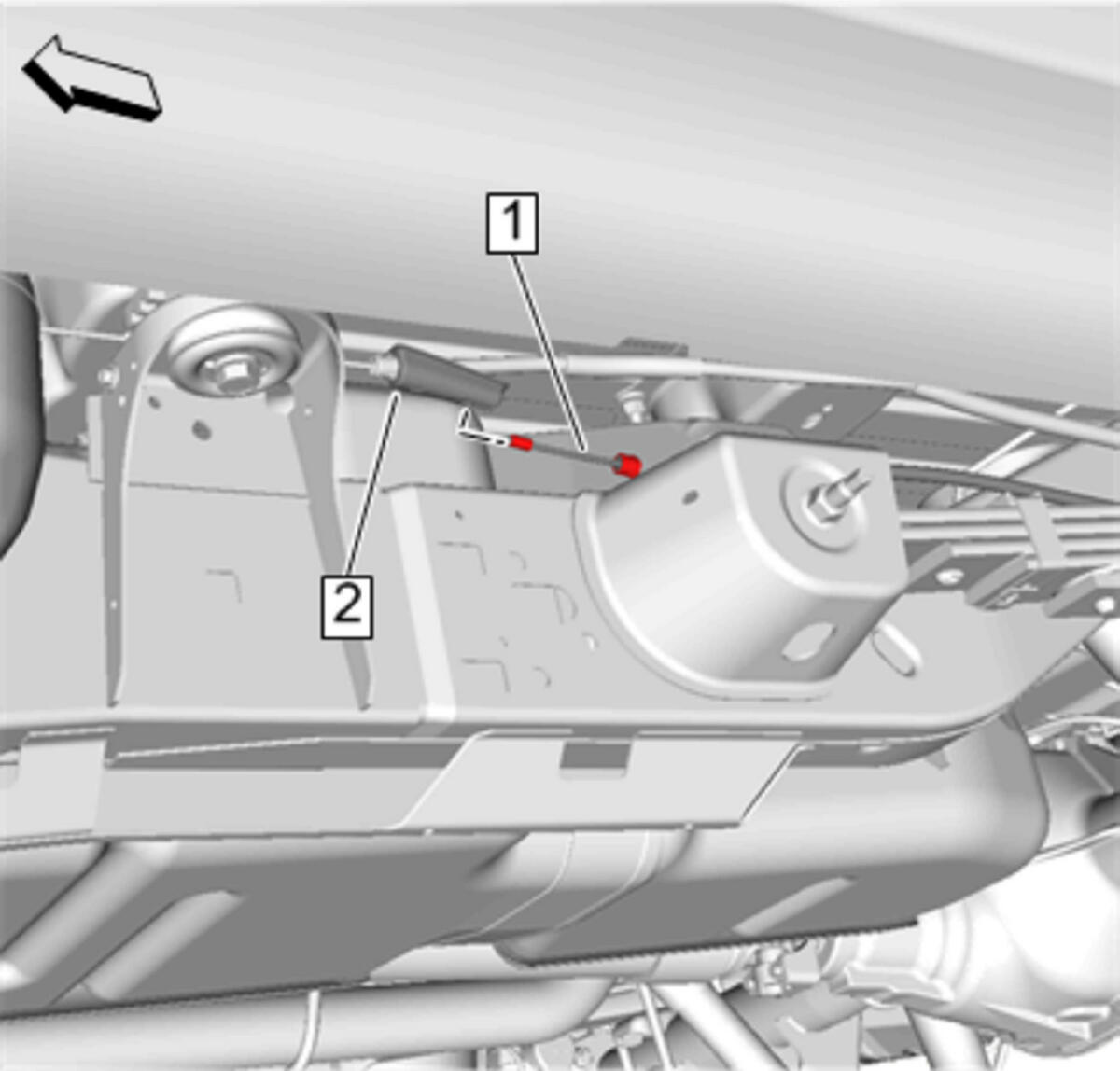

Parking Brake Rear Cable- Right Side (1) @ Parking Brake Cable Equalizer (2) - Connect
Remove the support and lower the vehicle.
Enable the parking brake cable adjuster. Parking Brake Cable Adjuster Enabling
Adjust the parking brake. Parking Brake Adjustment
