Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
Ensure that the parking brake lever handle cable is routed the same as removed.

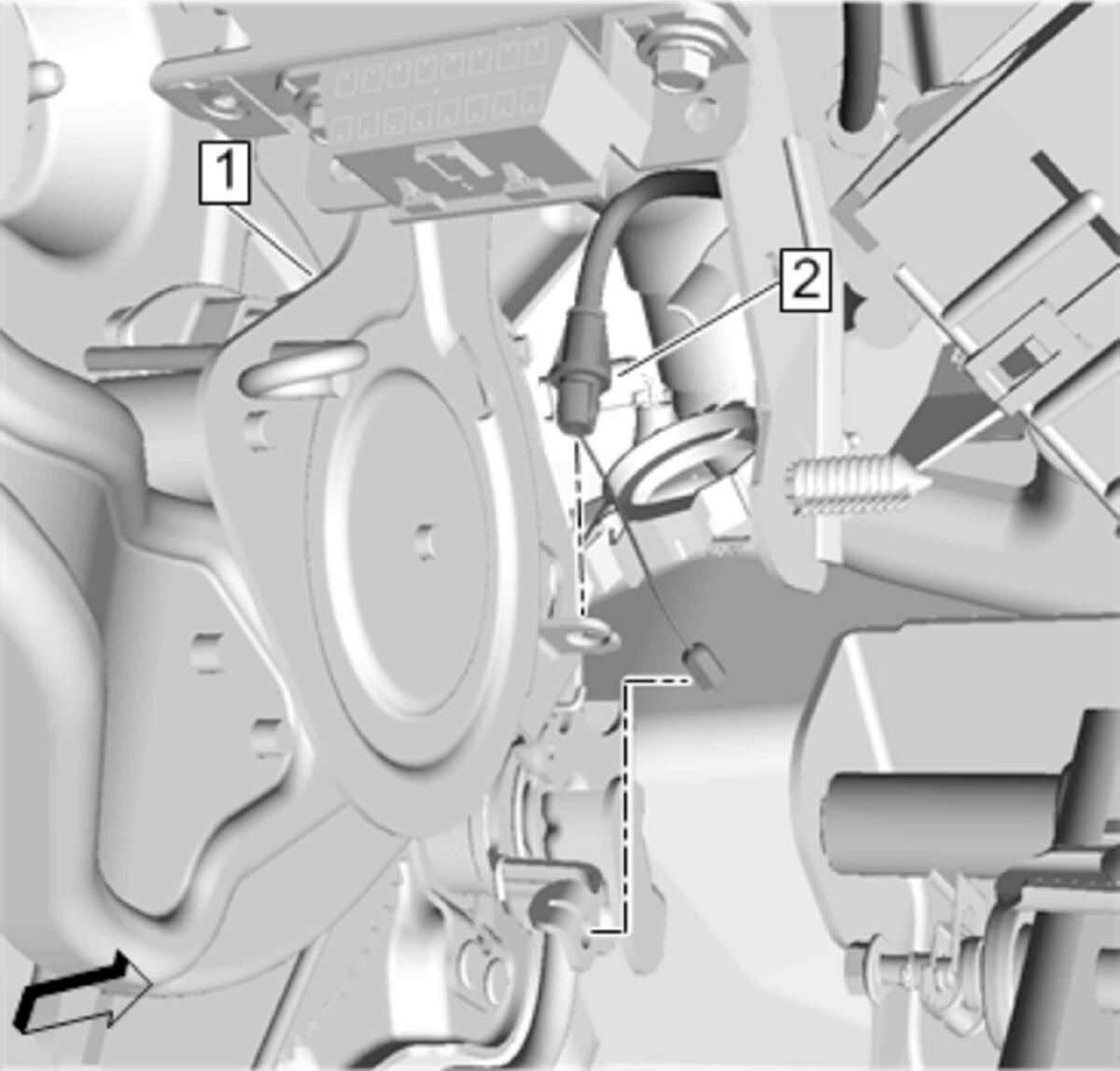

Parking Brake Lever Handle (2) - Install
- Parking Brake Lever Handle Bolt (1) - Install and tighten10 N.m (89 lb in)
Parking Brake Lever Handle Cable (2) @ Parking Brake Control Module (1) - Connect
CAUTION:
Refer to Fastener Caution .
