Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Release the parking brake.
Disable the parking brake cable adjuster. Parking Brake Cable Adjuster Disabling
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Note the parking brake intermediate cable routing for proper installation.

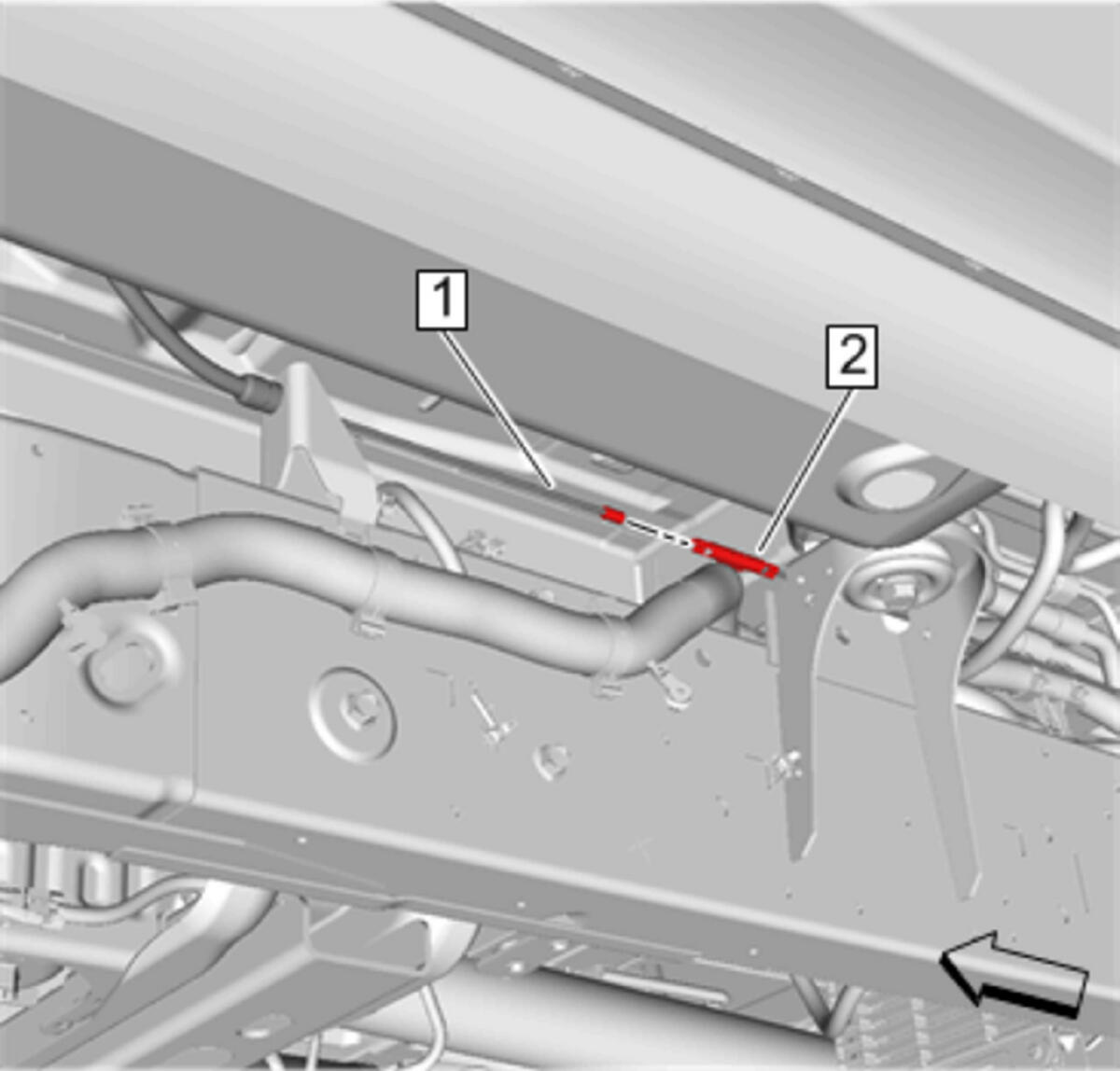

Parking Brake Intermediate Cable (2) @ Parking Brake Front Cable (1) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

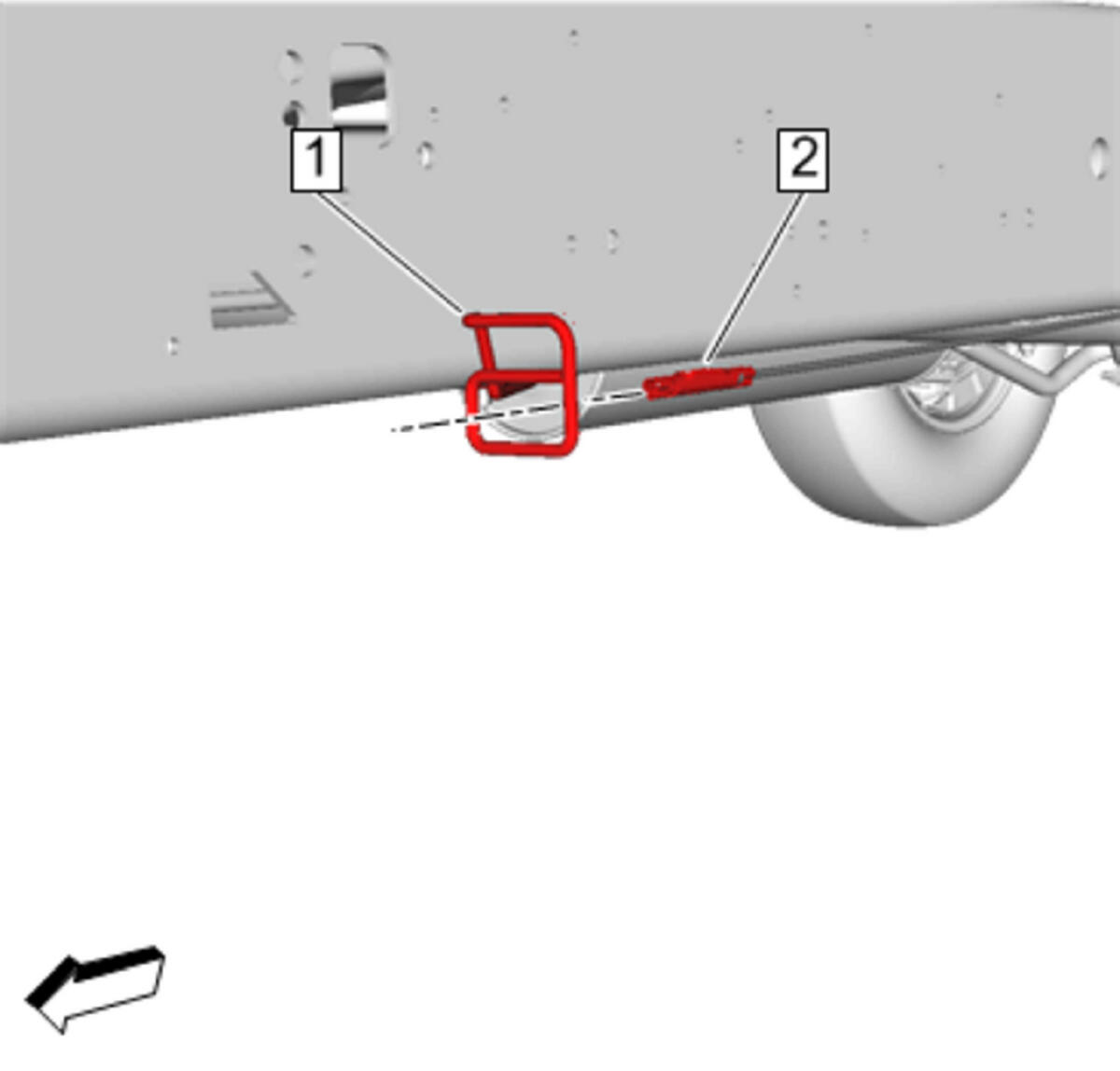

Parking Brake Intermediate Cable (1) @ Parking Brake Rear Cable- Left Side (2) - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Route the parking brake intermediate cable (2) through the parking brake rear cable guide (1), if equipped.
Parking Brake Intermediate Cable (2) - Remove
