Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

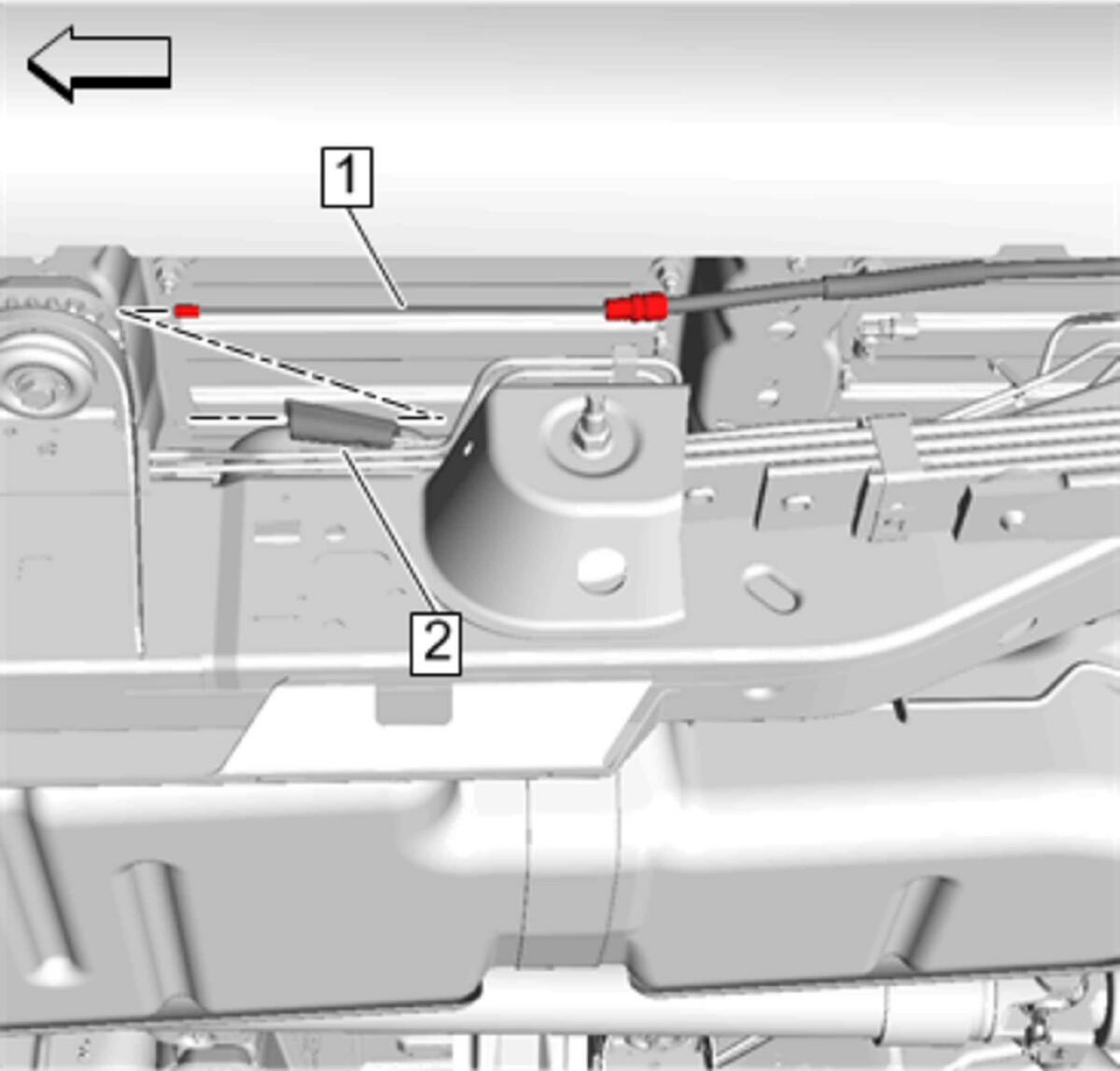

Parking Brake Cable Equalizer (1) @ Parking Brake Rear Cable- Right Side (2) - Install

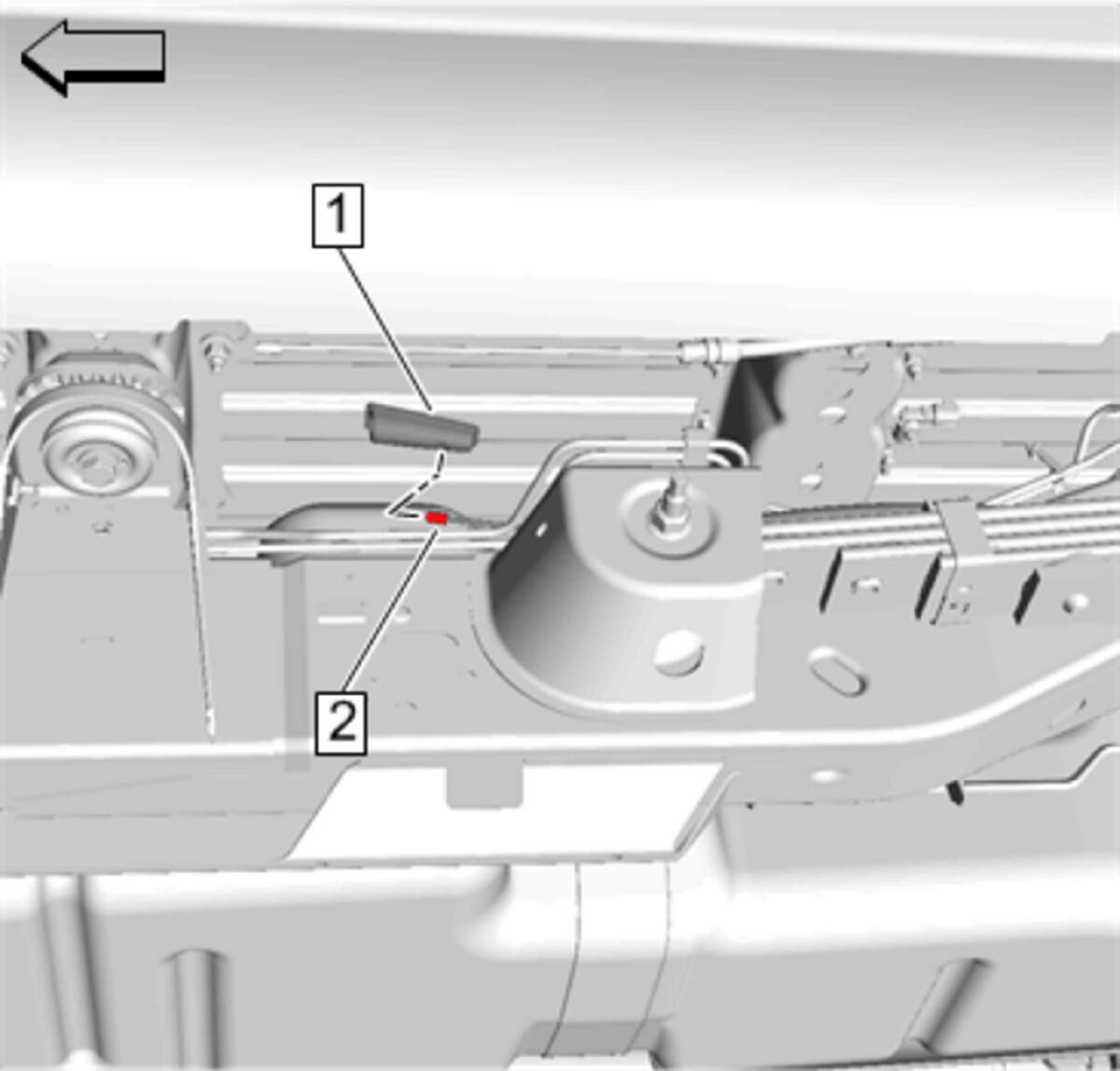

Parking Brake Rear Cable- Left Side (1) @ Parking Brake Cable Equalizer (2) - Install

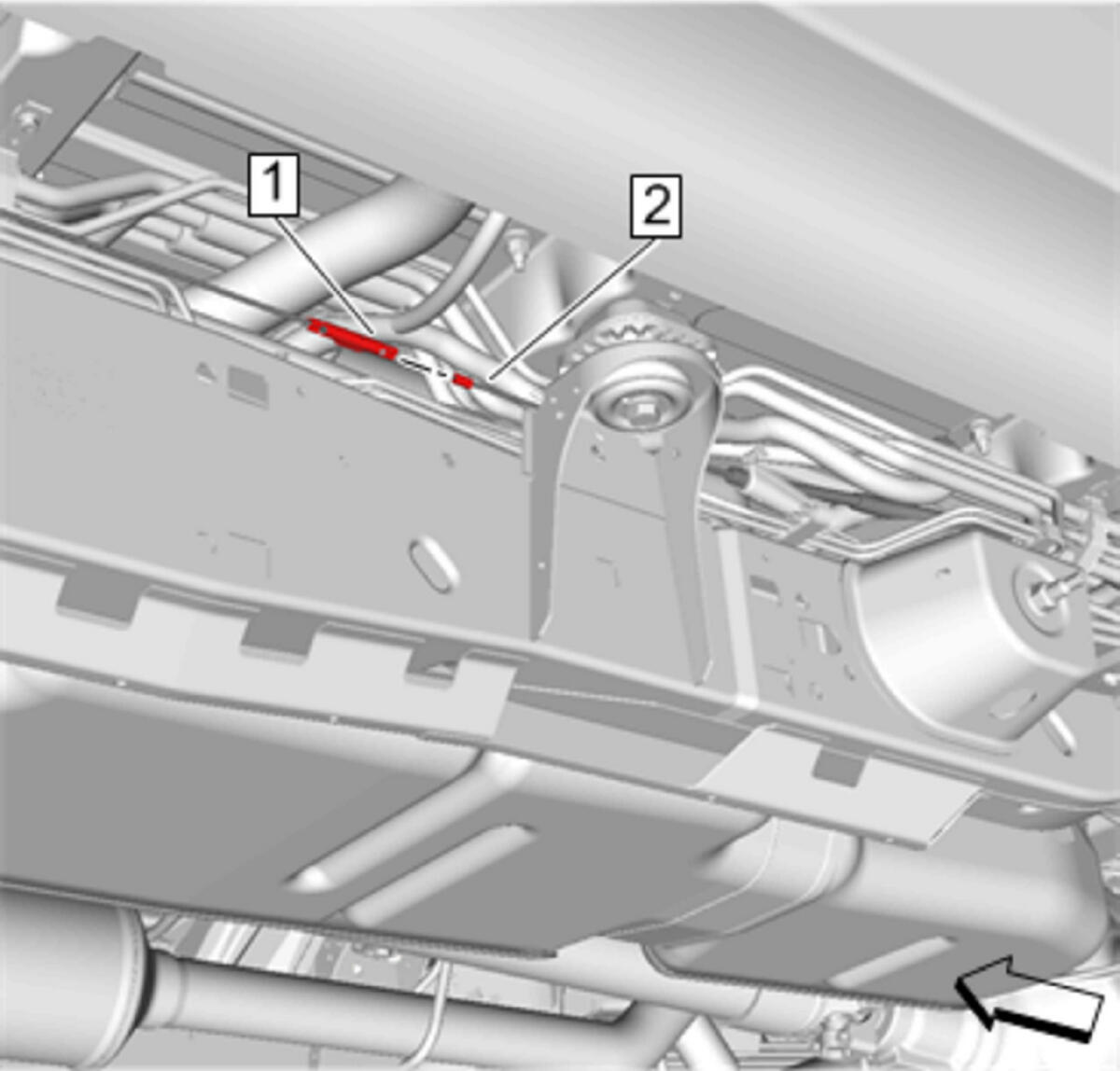

Parking Brake Intermediate Cable (1) @ Parking Brake Rear Cable- Left Side (2) - Connect
- Remove the support and lower the vehicle.
- Enable the parking brake cable adjuster. Parking Brake Cable Adjuster Enabling
- Adjust the parking brake. Parking Brake Adjustment
