Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

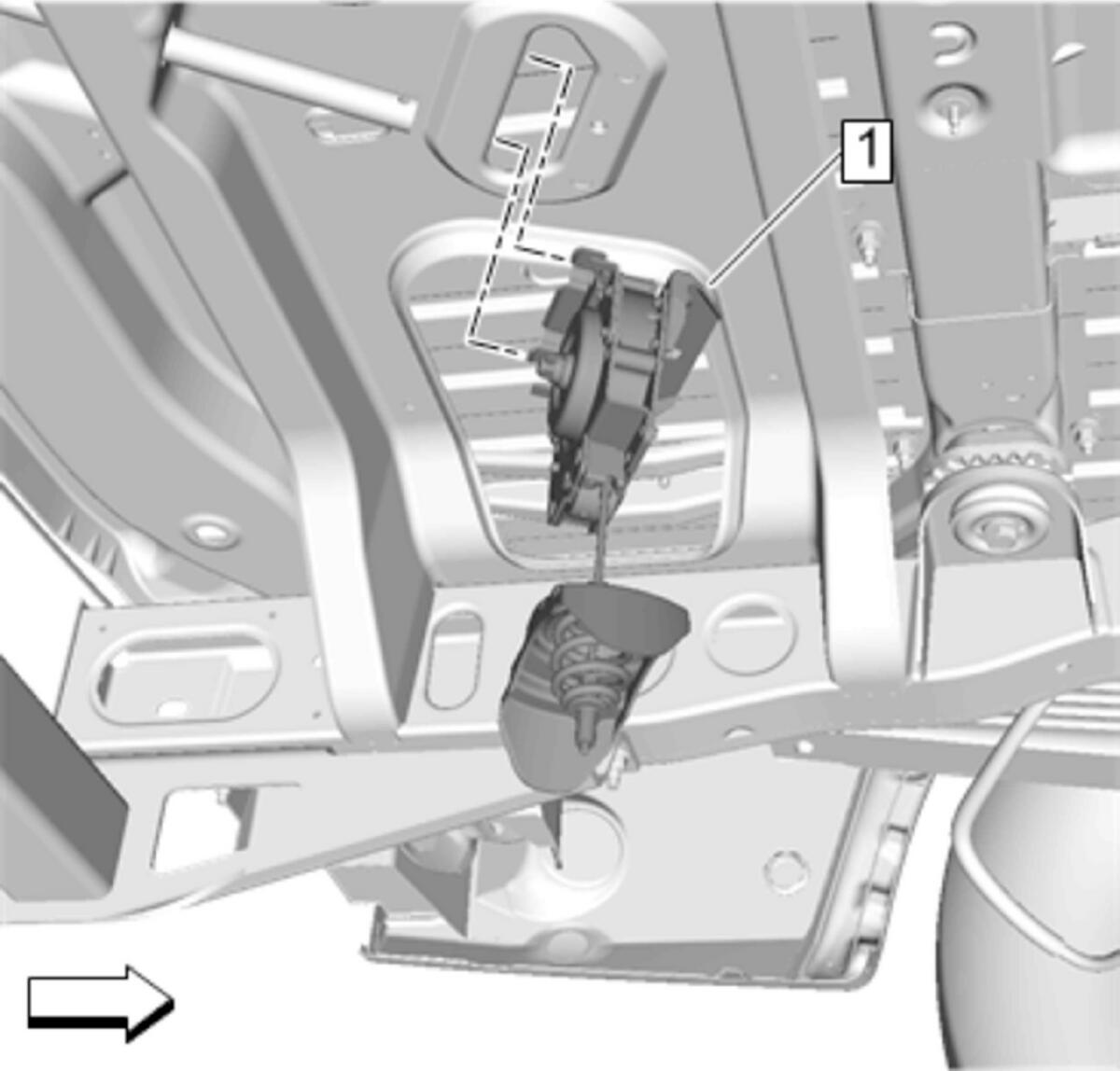

  1. GM4848478

    Spare Wheel Hoist (1) - Install

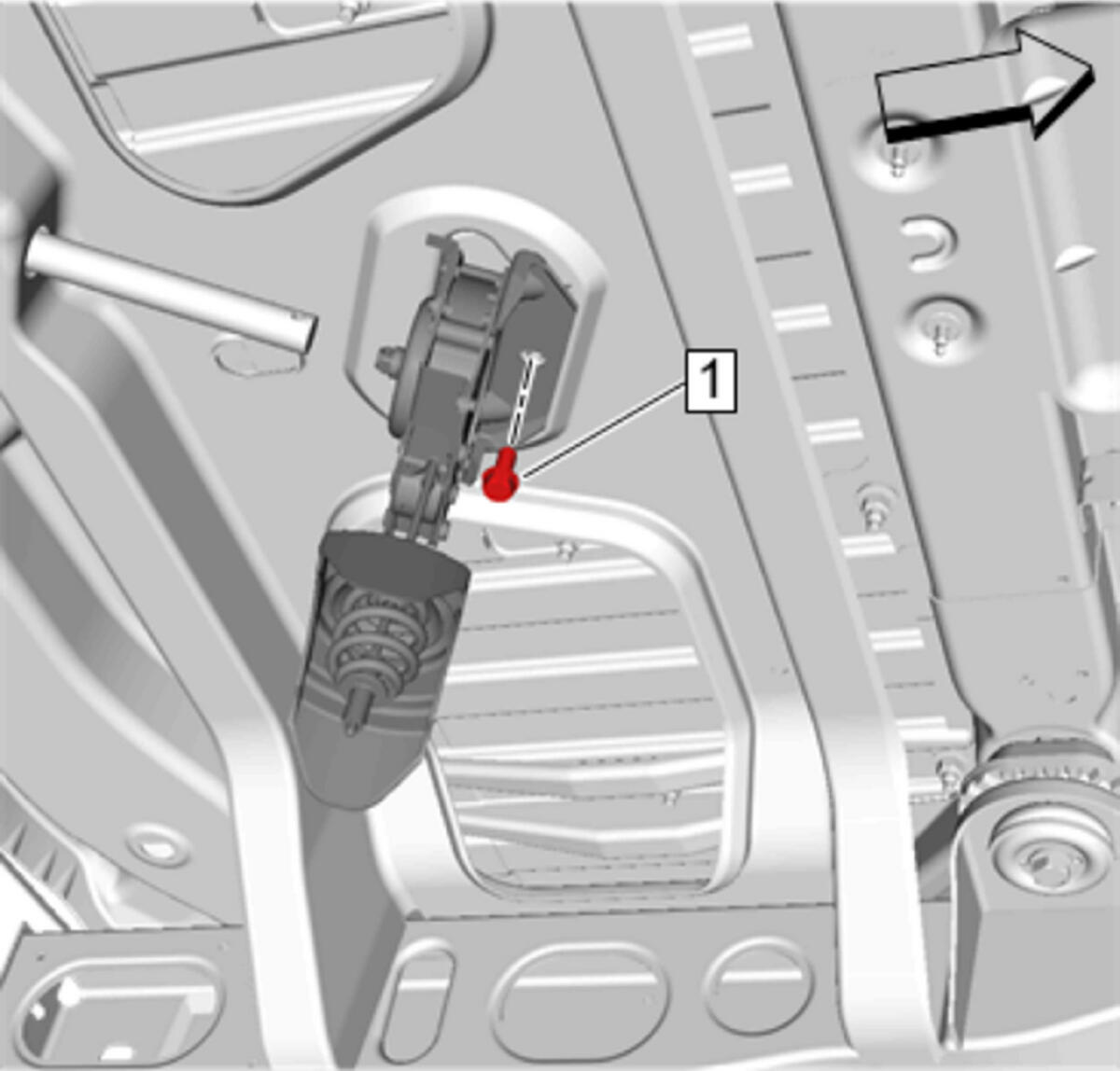

  2. GM4848475
    CAUTION:

    Refer to Fastener Caution .

    Spare Wheel Hoist Bolt (1) - Install and tighten 20 N.m (15 lb ft)

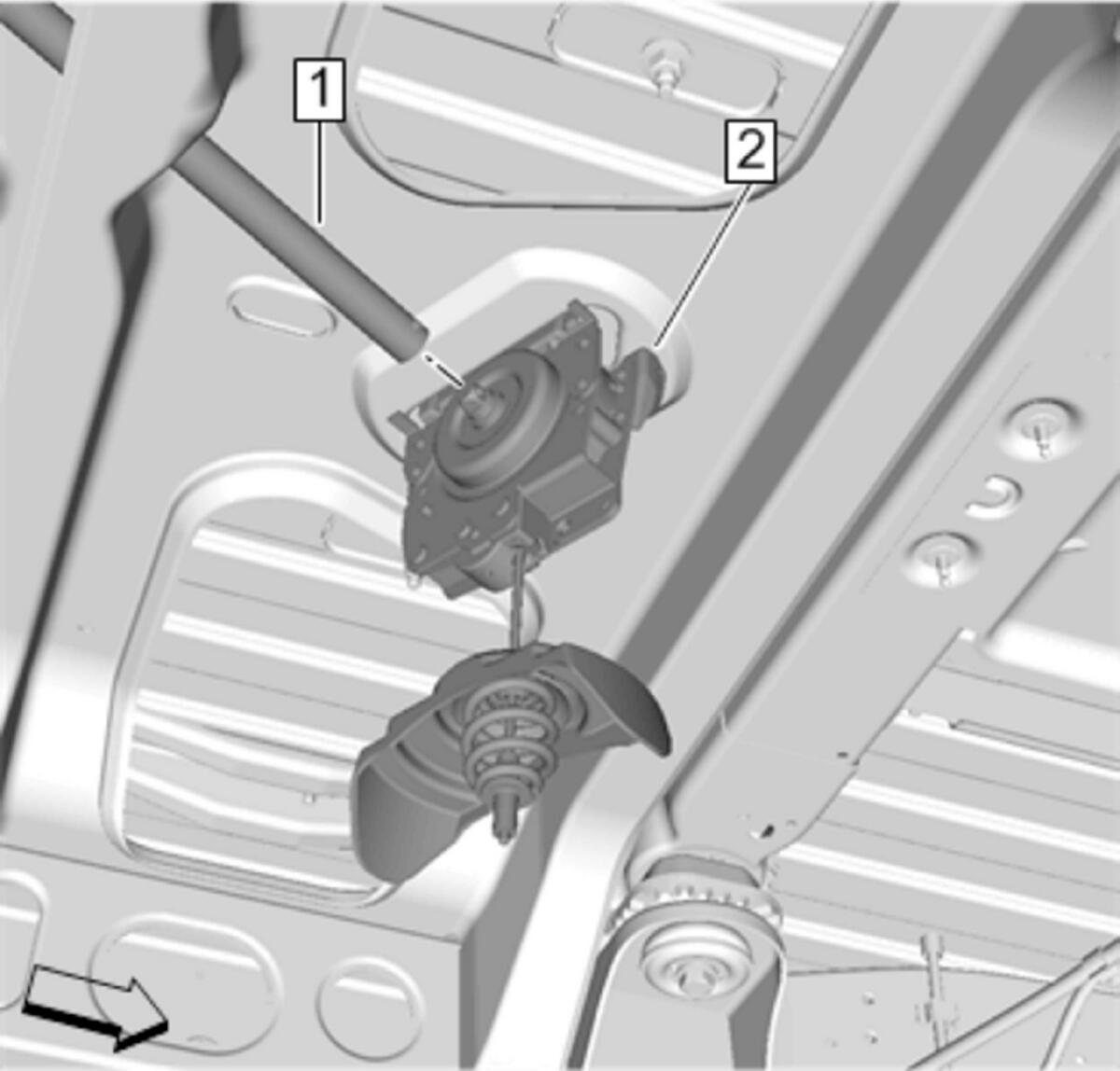

  3. GM4848421
    NOTE:

    Ensure that the spare wheel hoist shaft hole is aligned with the spare wheel hoist hole during installation.

    Spare Wheel Hoist Shaft (1) @ Spare Wheel Hoist (2) - Install

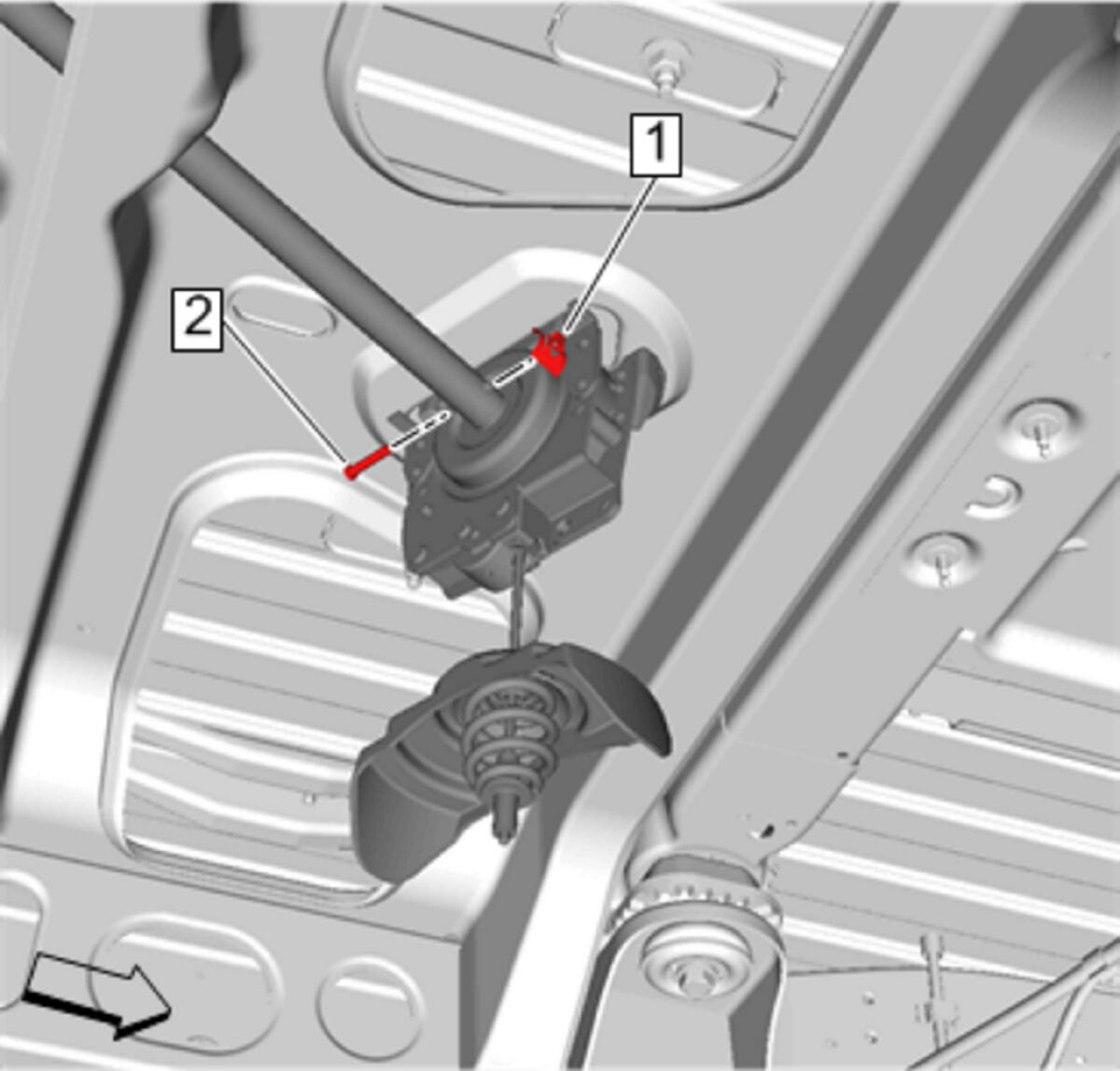

  4. GM4848393

    Spare Wheel Hoist Shaft Pin (2) - Install

  5. Spare Wheel Hoist Shaft Pin Retainer (1) - Install
  6. Lower the vehicle.
  7. Spare Tire - Install
