Fuel Tank Skid Rail Replacement (Midship, LPG)
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

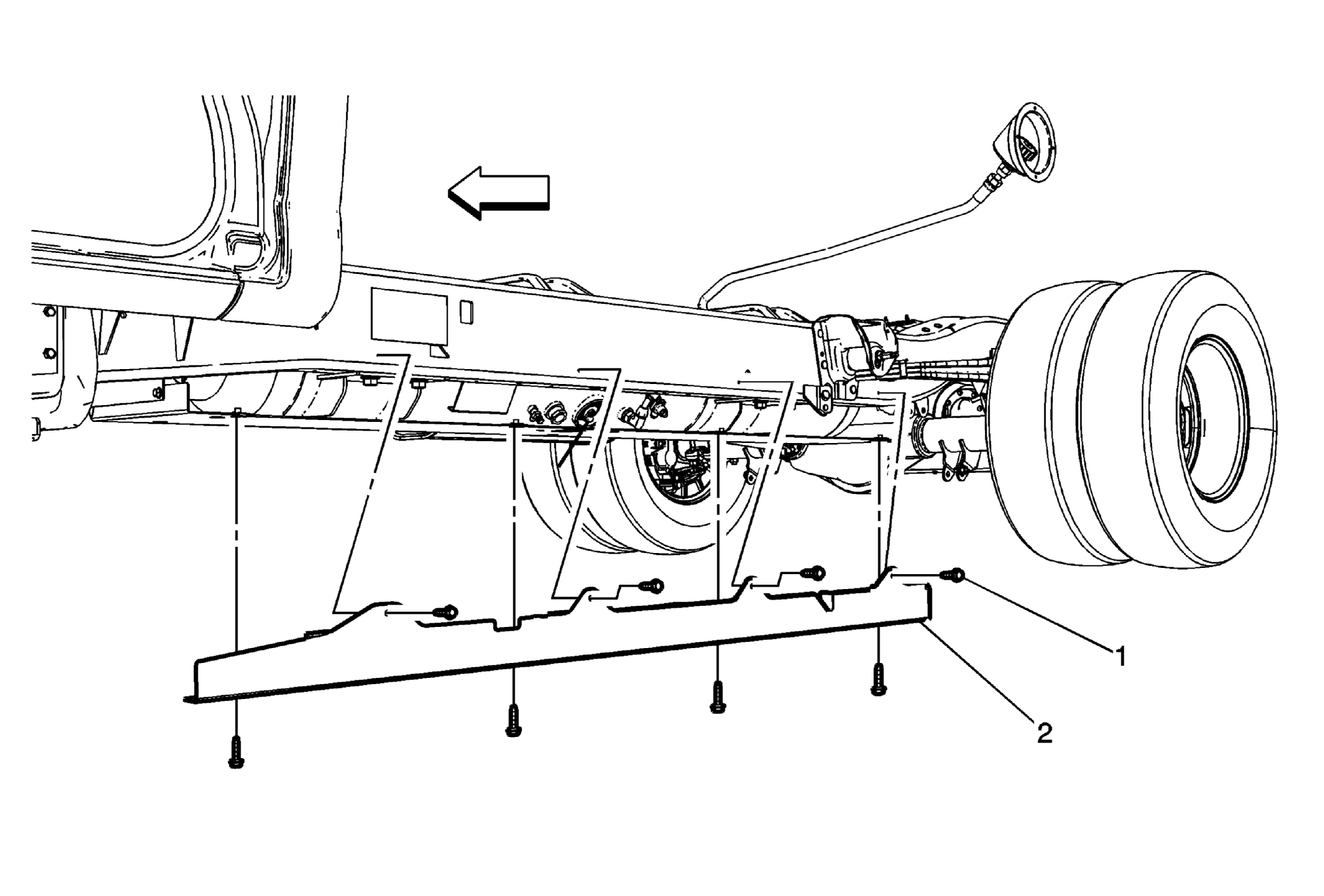

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Fuel Tank Skid Rail Bolts (Qty: 8)
CAUTION:
Refer to Fastener Caution . Tighten 8 N.m (71 lb in) |
| 2 | Fuel Tank Skid Rail |
