Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

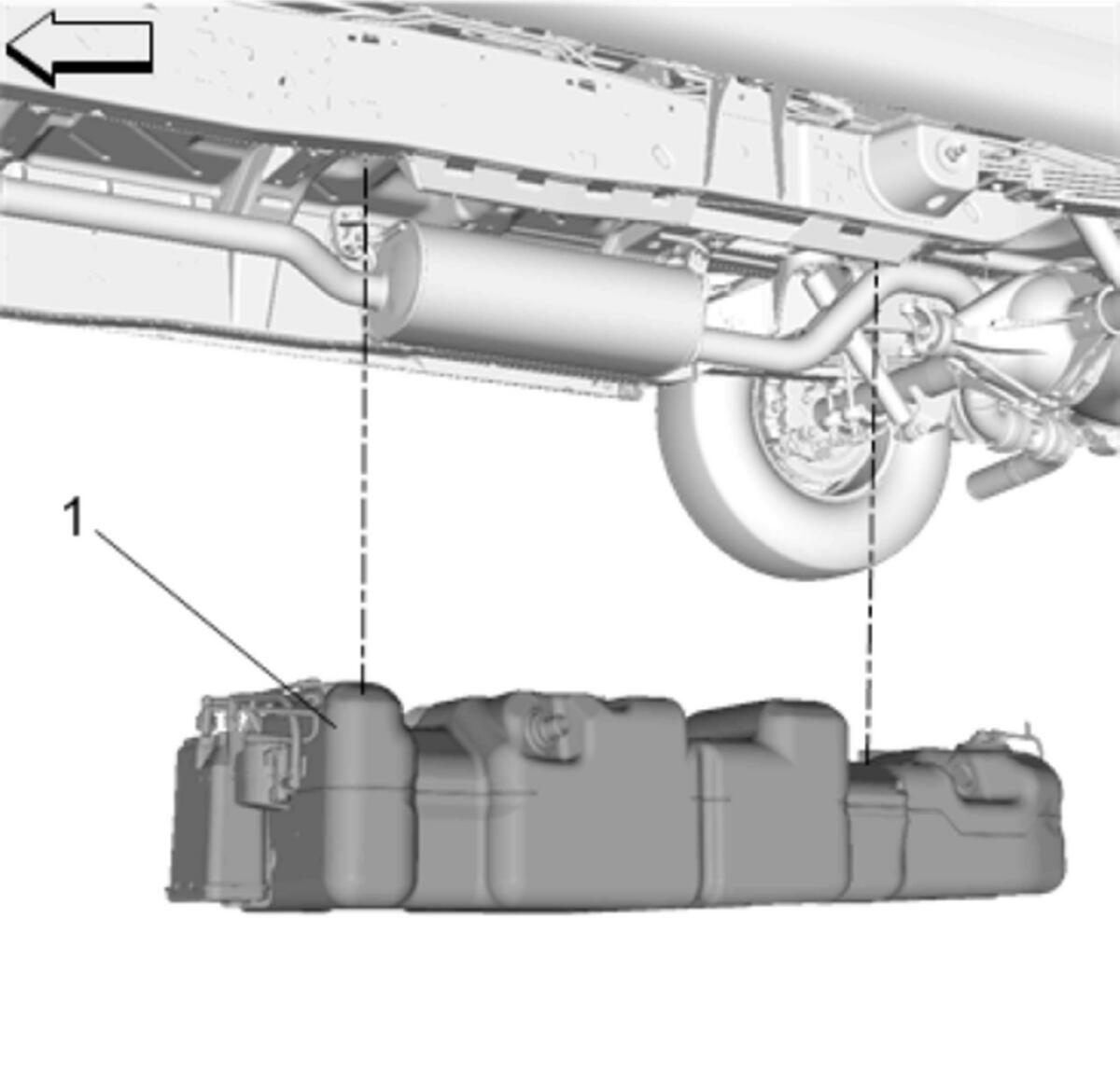

  1. GM4846247Courtesy of GENERAL MOTORS COMPANY

    Place a suitable adjustable jack under the fuel tank.

  2. Use a suitable strap to strap fuel tank to jack.
  3. Connect the fuel tank fuel pump module connector.
  4. Fuel Tank(1) - Install

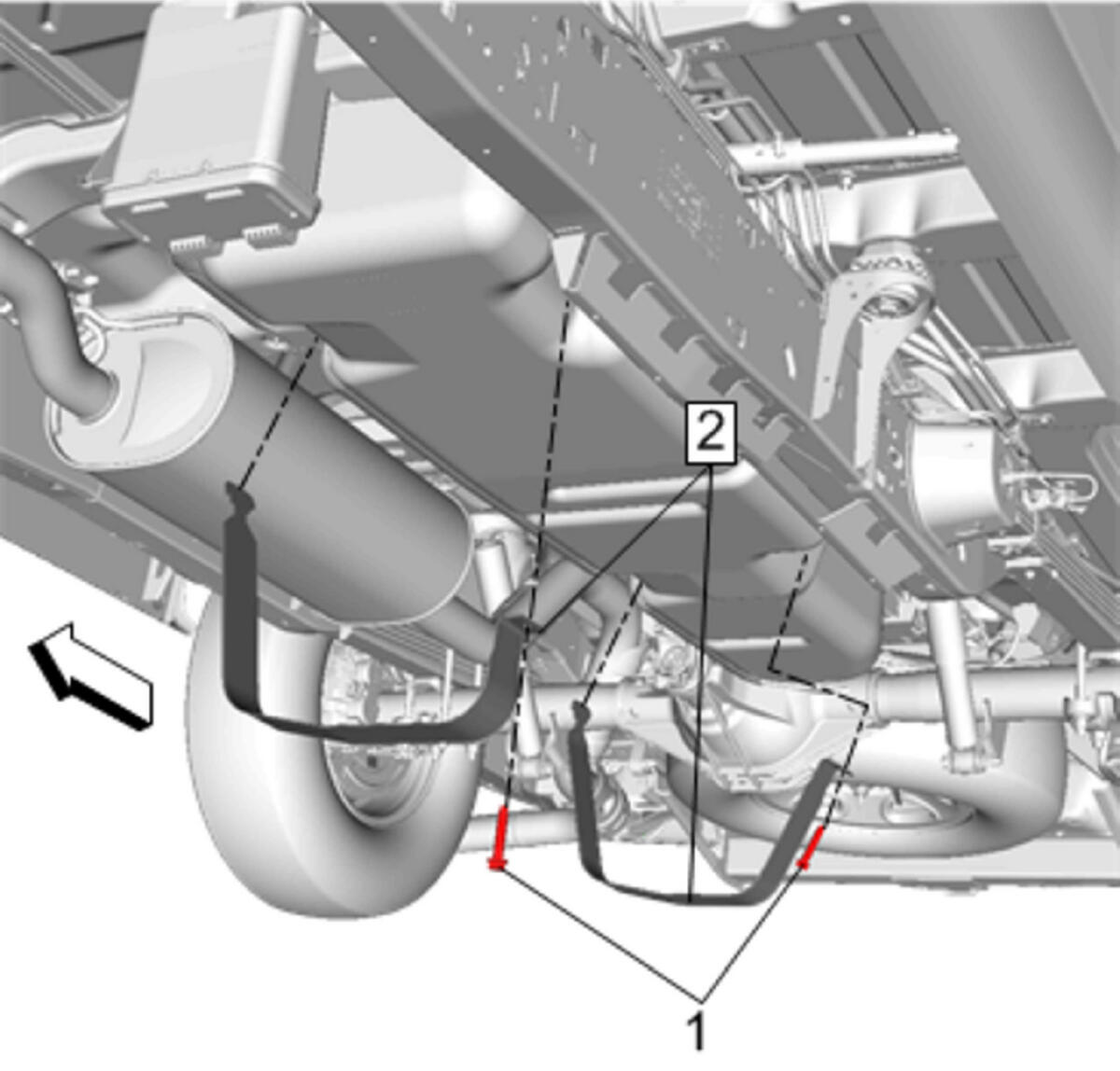

  5. GM4846246Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Strap(2) - Install[2x]

    6. CAUTION:

    Refer to Fastener Caution .

  6. Fuel Tank Strap Bolt(1) - Install and tighten[2x]30N.m (22 lb ft)
  7. Remove strap holding fuel tank to jack.

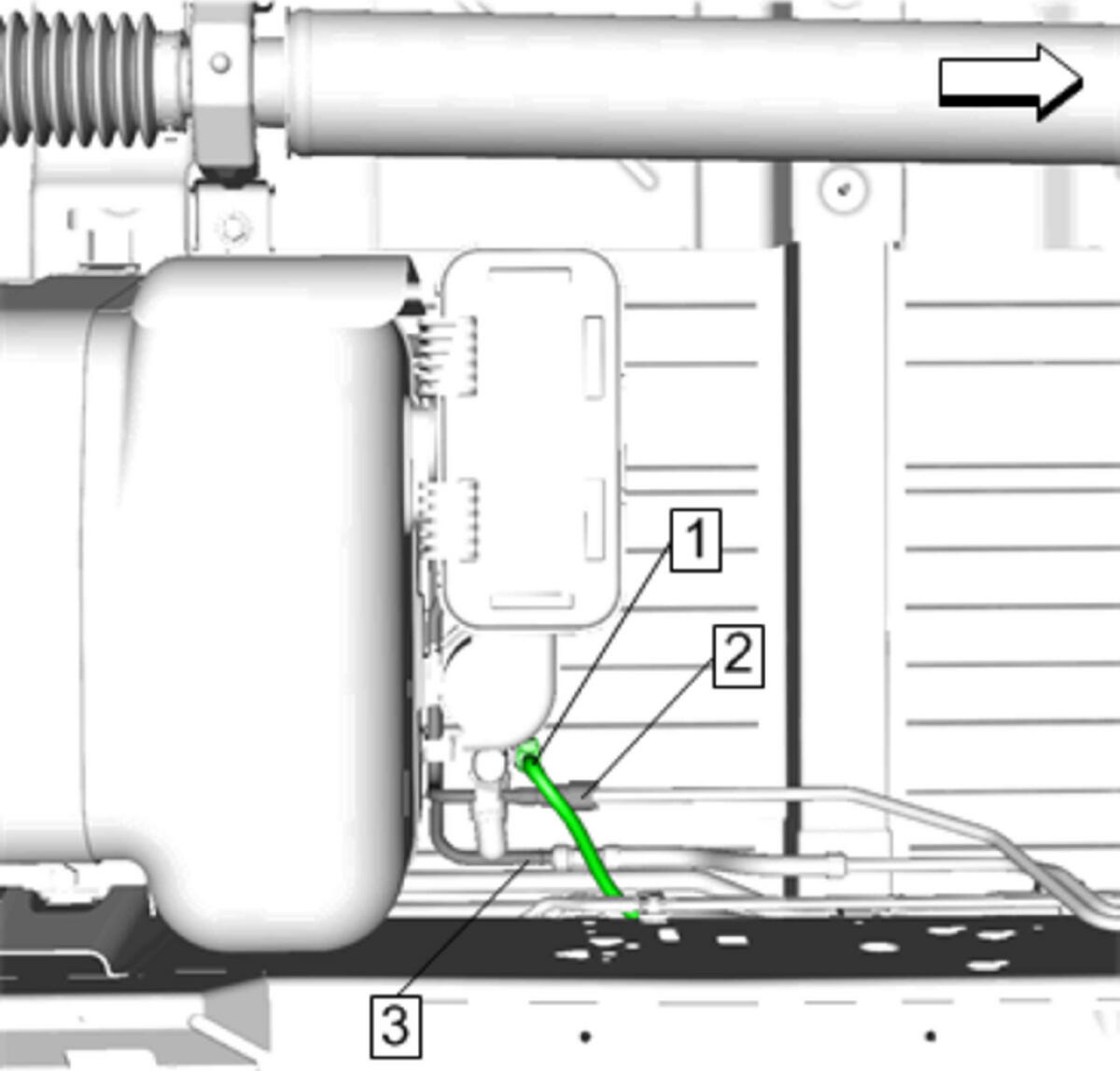

  8. GM4846245Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Pipe(3) - Connect - Metal Collar Quick Connect Fitting Service

  9. Evaporative Emission Front Pipe(2) - Connect - Plastic Collar Quick Connect Fitting Service
  10. Electrical Connector(1) - Connect

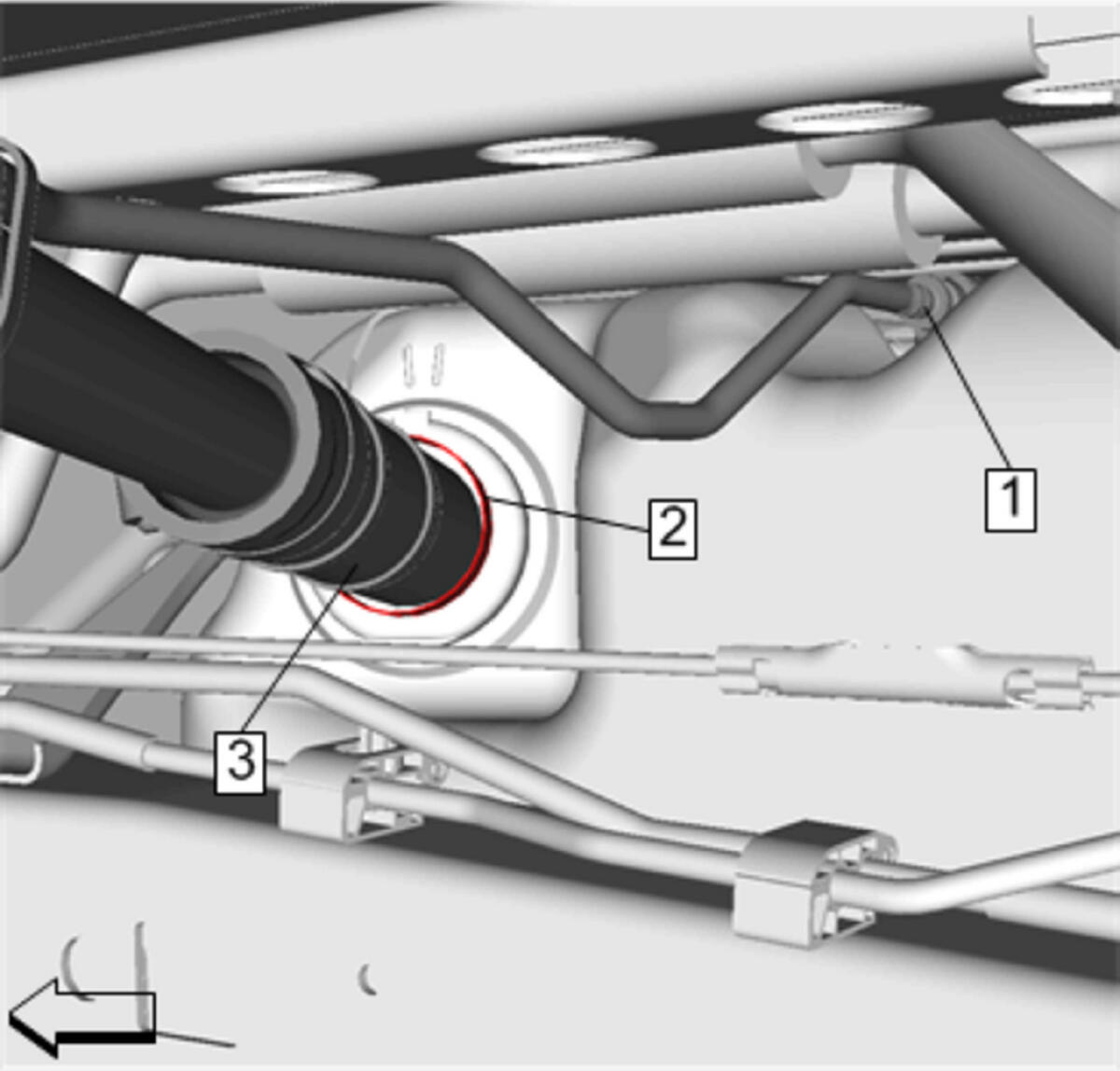

  11. GM4845810Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Filler Hose(3) - Install

  12. Fuel Tank Filler Hose Clamp(2) - Install and tighten4N.m (35 lb in)
  13. Evaporative Emission Hose(1) - Connect - Plastic Collar Quick Connect Fitting Service
  14. Refill the fuel tank.
  15. Inspect for fuel leaks.
