Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

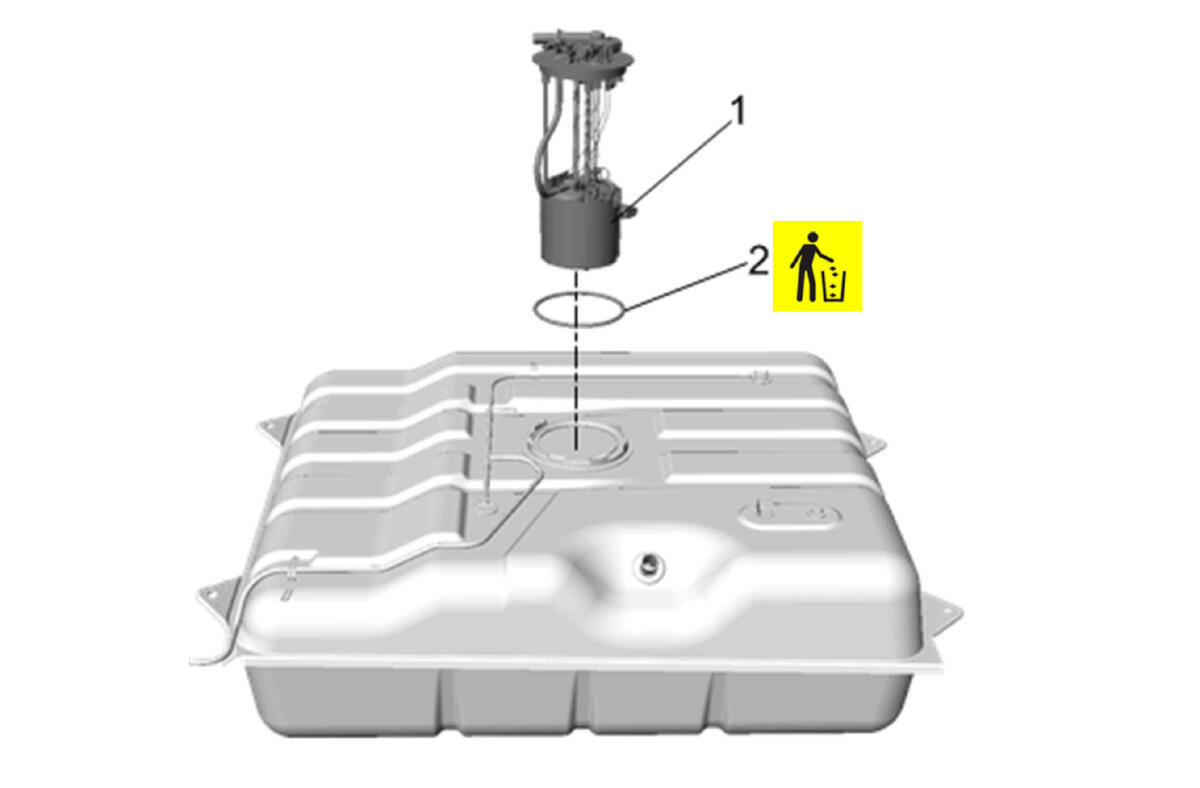

O-Ring(2) - Install NEW
- Fuel Tank Fuel Pump Module(1) - Install

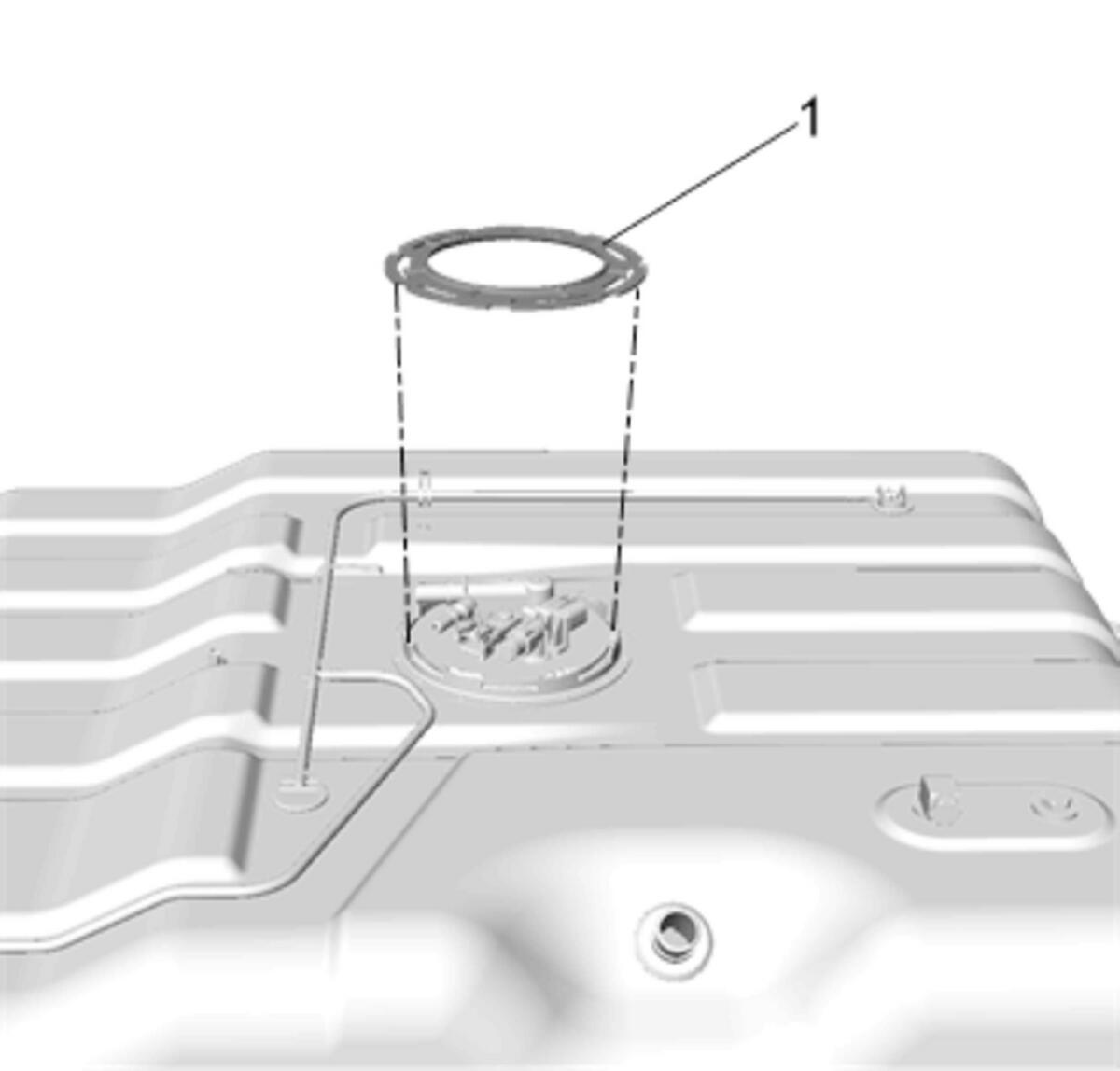

Fuel Sender Retainer(1) - Install - CH 45722 Fuel Sender Lock Ring Wrench

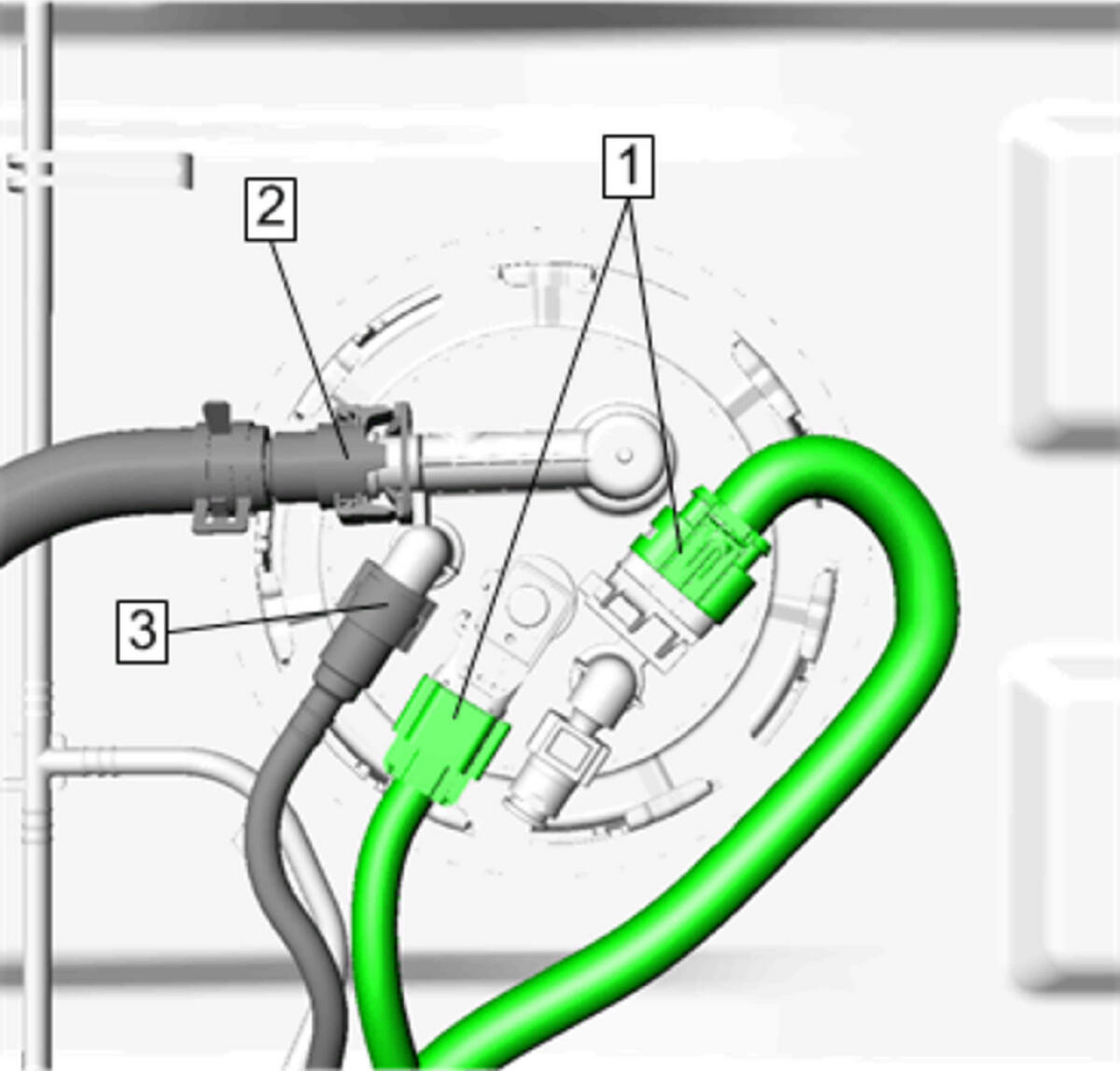

Fuel Feed Pipe(3) - Connect - Plastic Collar Quick Connect Fitting Service
- Evaporative Emission Hose(2) - Connect - Plastic Collar Quick Connect Fitting Service
- Electrical Connector(1) - Connect[2x]
- Fuel Tank - Install - Fuel Tank Replacement (Passenger/Cargo) , or Fuel Tank Replacement (Chassis Cab, Front Tank) , or Fuel Tank Replacement (Chassis Cab, Rear Tank)
