Fuel Tank Filler Hose Replacement (Passenger/Cargo)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

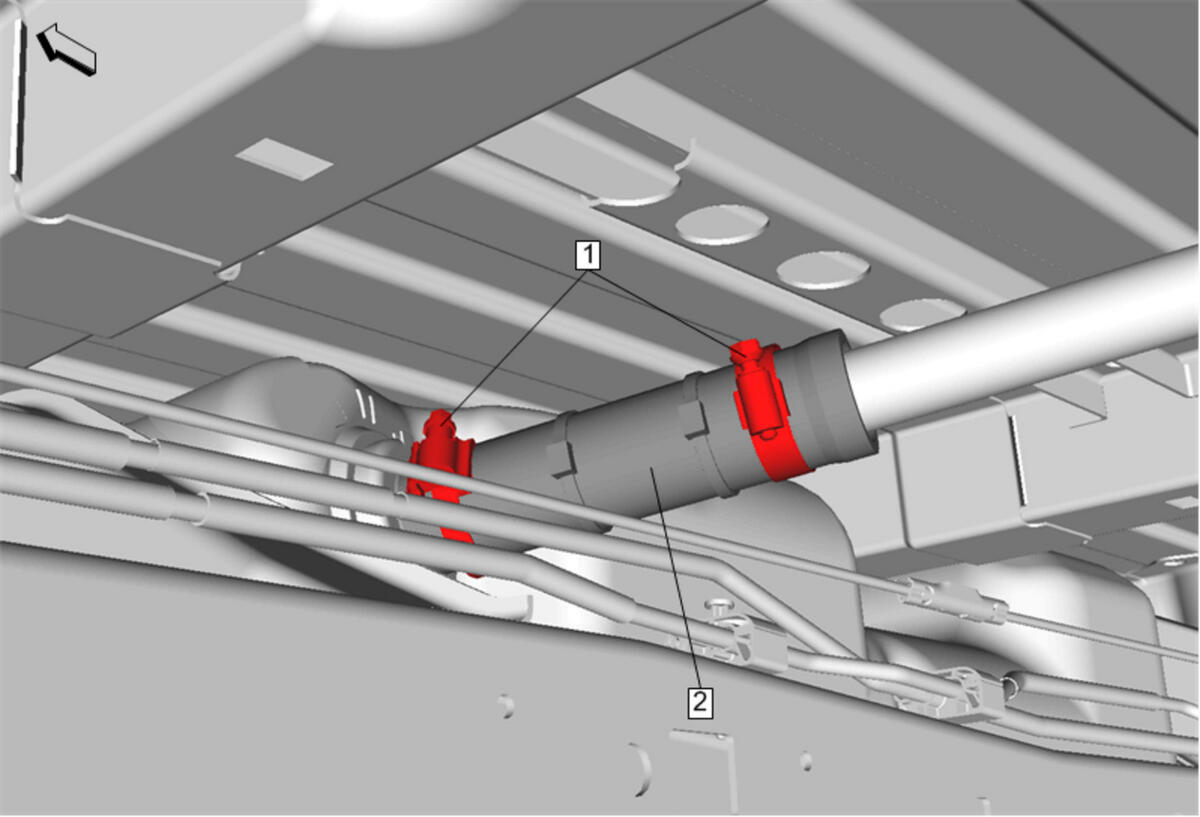

Callout	Component Name
Preliminary Procedures Drain the fuel below the fuel filler neck. Fuel Tank Draining Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Fuel Tank Filler Hose Clamp[2x] CAUTION: Refer to Fastener Caution . Tighten 4N.m (35 lb in)
2	Fuel Tank Filler Hose

Callout

Component Name

Preliminary Procedures

Drain the fuel below the fuel filler neck. Fuel Tank Draining
Raise and support the vehicle. Lifting and Jacking the Vehicle

Fuel Tank Filler Hose Clamp[2x]

CAUTION:

Refer to Fastener Caution .

Tighten
4N.m (35 lb in)

Fuel Tank Filler Hose
