Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

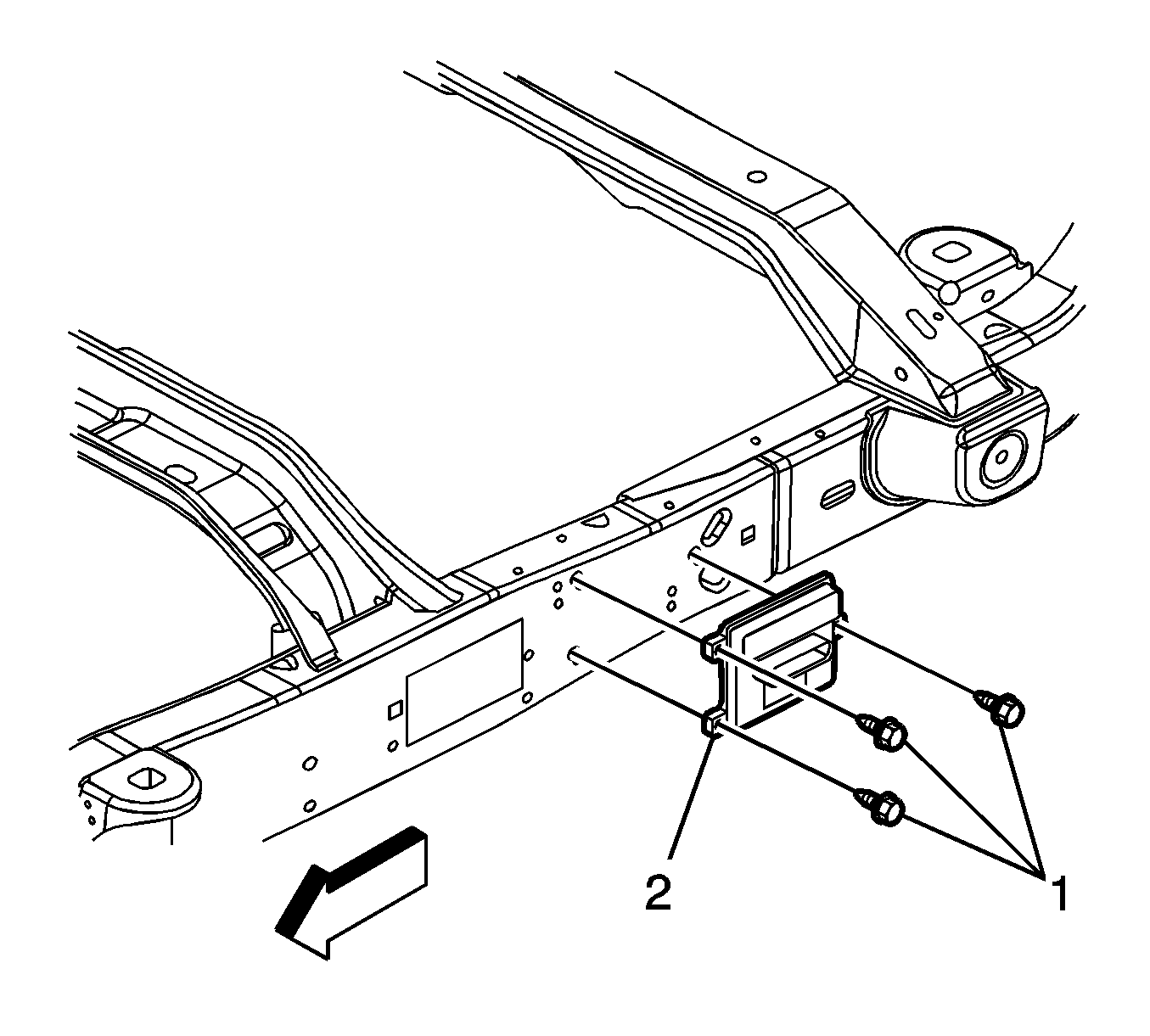

Place the fuel pump flow control module (2) against the frame.
- Install the fuel pump flow control module bolts (1) and tighten to 9 N.m (80 lb in).

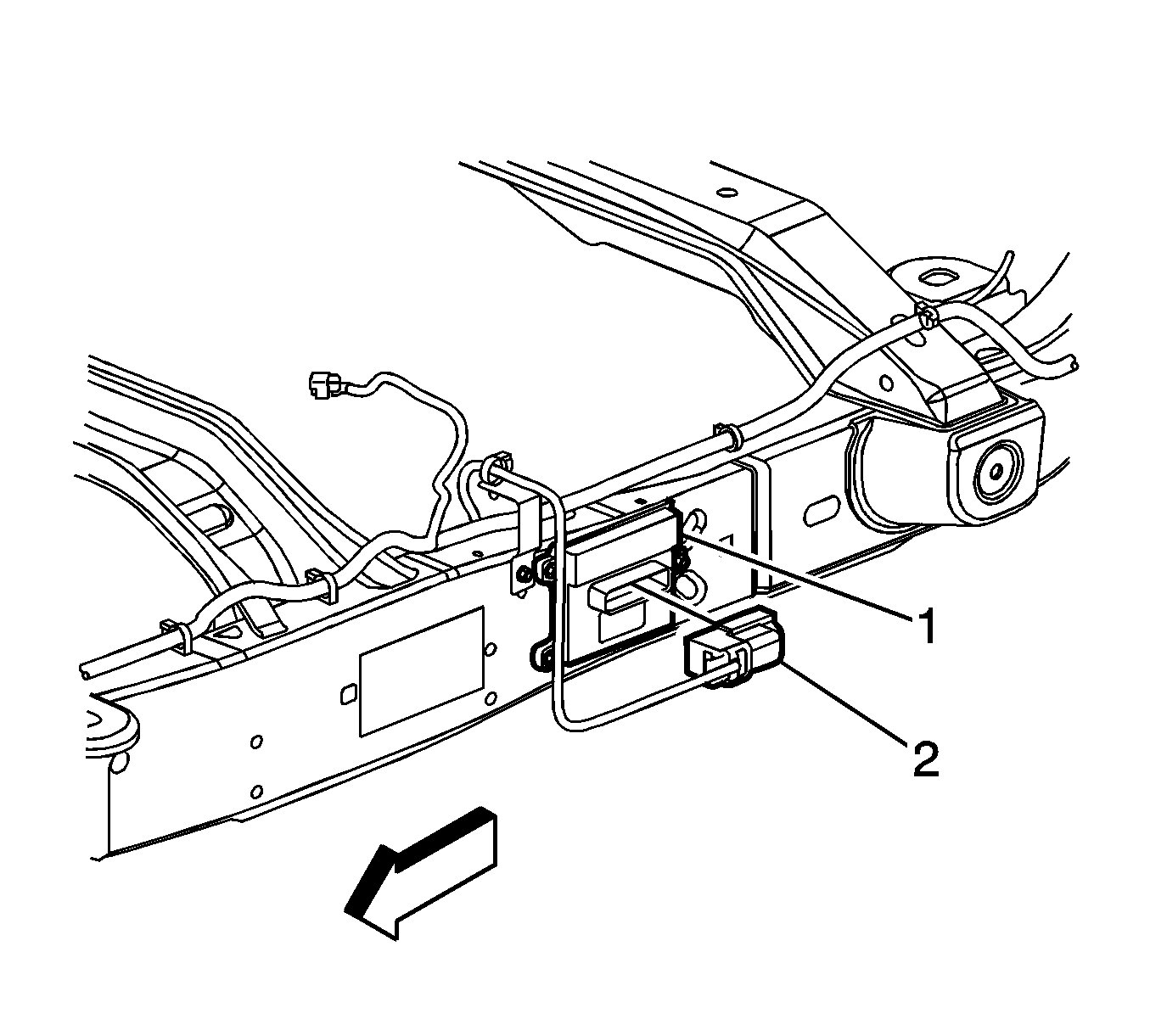

Connect the chassis wiring harness electrical connector (1) to the fuel pump flow control module (2).
- Lower the vehicle.
- Program the fuel pump flow control module. Refer to Control Module References .
CAUTION:
Refer to Fastener Caution .
