Evaporative Emission Canister Replacement (Passenger/Cargo)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

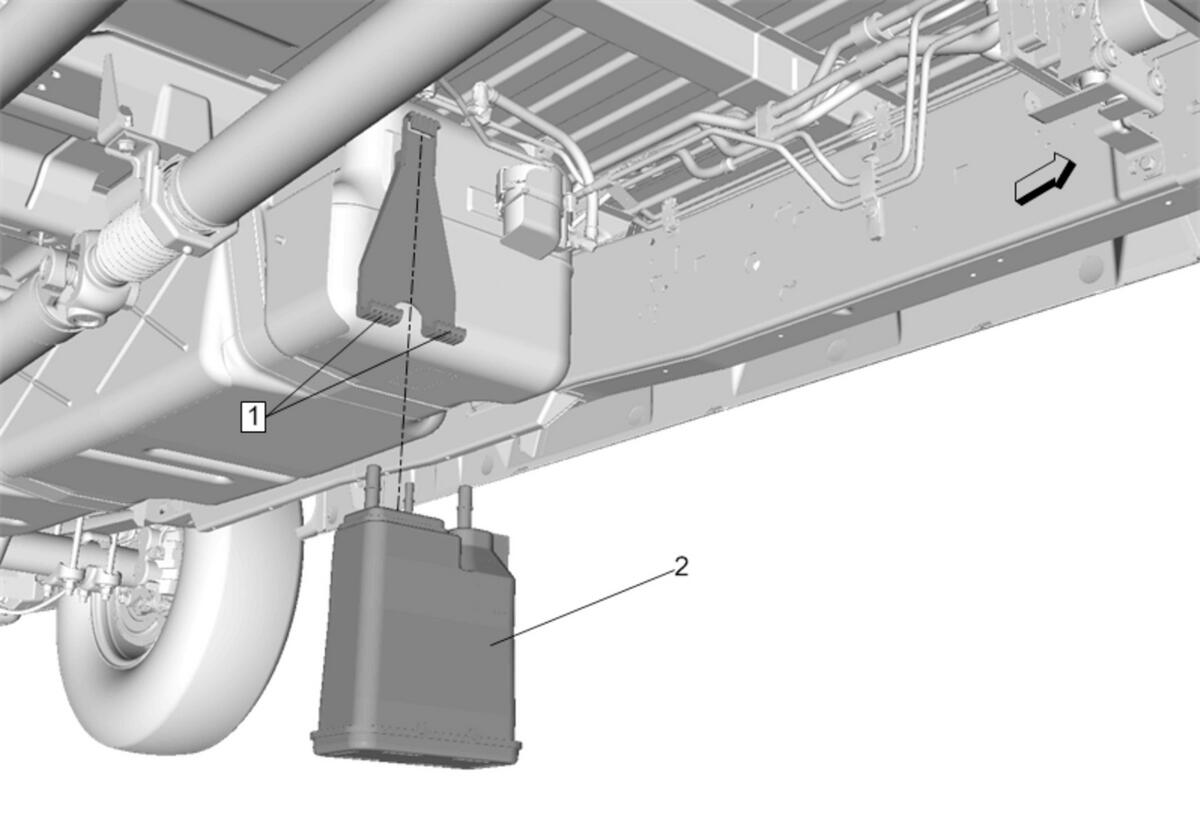

GM4848884Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

  1. Evaporative Emission Canister Vent Hose @ Evaporative Emission Canister - Disconnect - Plastic Collar Quick Connect Fitting Service
  2. Evaporative Emission Canister Purge Pipe @ Evaporative Emission Canister - Disconnect - Plastic Collar Quick Connect Fitting Service
  3. Evaporative Emission Hose @ Evaporative Emission Canister - Disconnect - Plastic Collar Quick Connect Fitting Service
1 Retaining Tab[2x]
2 Evaporative Emission Canister
