Evaporative Emission Canister Purge Tube Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

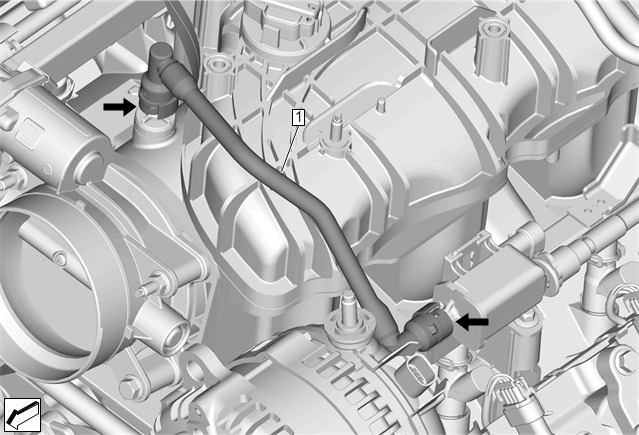

GM4850172Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

CAUTION:

Refer to Fuel and Evaporative Emission Hose/Pipe Connection Cleaning Caution .

Preliminary Procedure Air Cleaner Resonator Outlet Duct Replacement
1 Evaporative Emission Canister Purge Tube
Procedure
Disconnect the quick disconnects. Plastic Collar Quick Connect Fitting Service
