Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Lifting and Jacking the Vehicle
  2. Tire and Wheel Assembly - Remove - Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
  3. Parking Brake Shoe - Single Wheel - Remove - Parking Brake Shoe Replacement (JH6) , or Parking Brake Shoe Replacement (JH9)

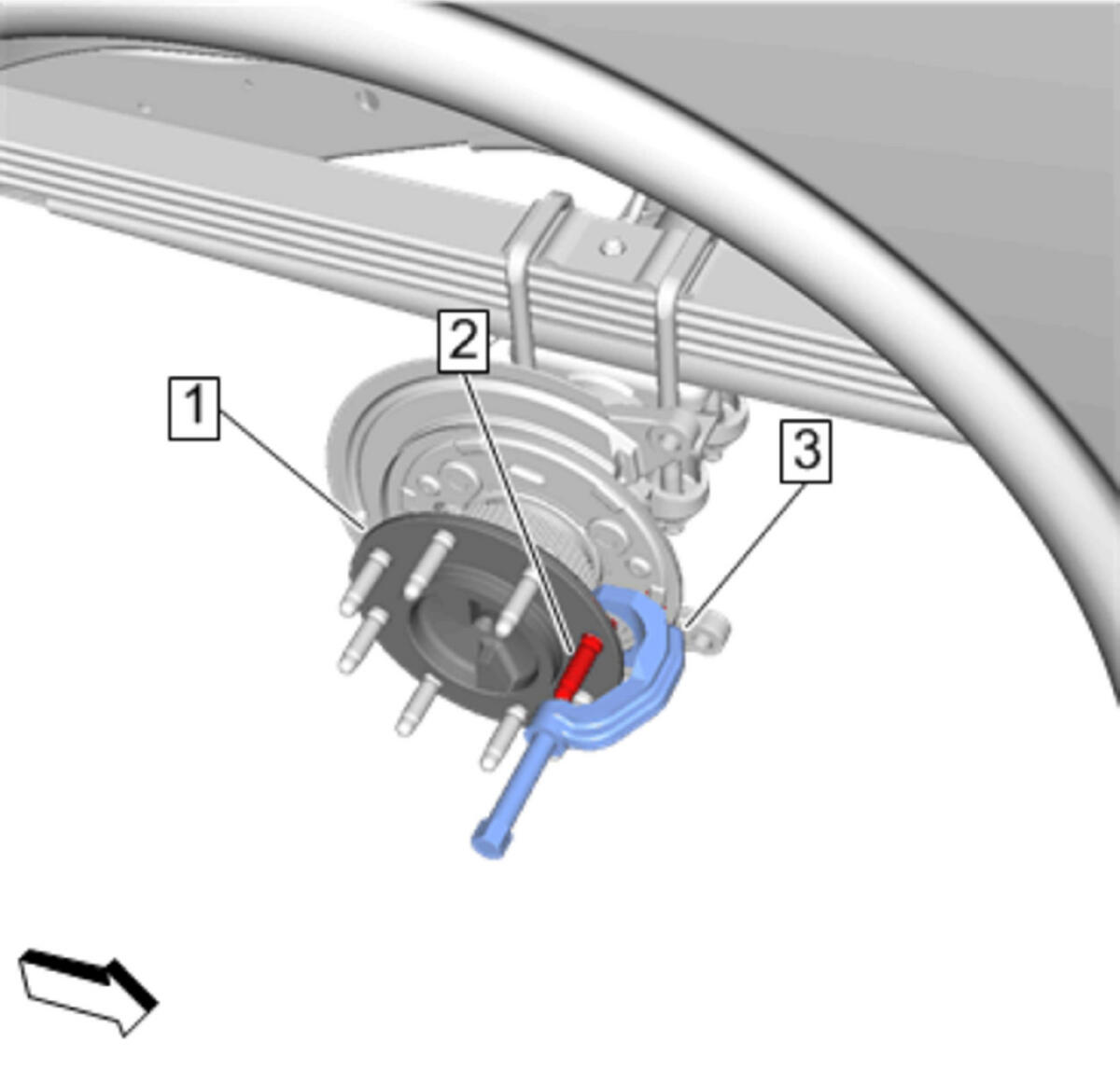

  4. GM4851607Courtesy of GENERAL MOTORS COMPANY

    Install the J 43631  Ball Joint Remover (3) to the axle shaft (1) and wheel stud (2) as shown.

  5. Wheel Stud(2)@ Axle Shaft (1) - Release
  6. Remove the J 43631  Ball Joint Remover (3) from the axle shaft (1) and wheel stud (2).
  7. GM4851648Courtesy of GENERAL MOTORS COMPANY

    Wheel Stud(2)@ Axle Shaft (1) - Remove
