Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

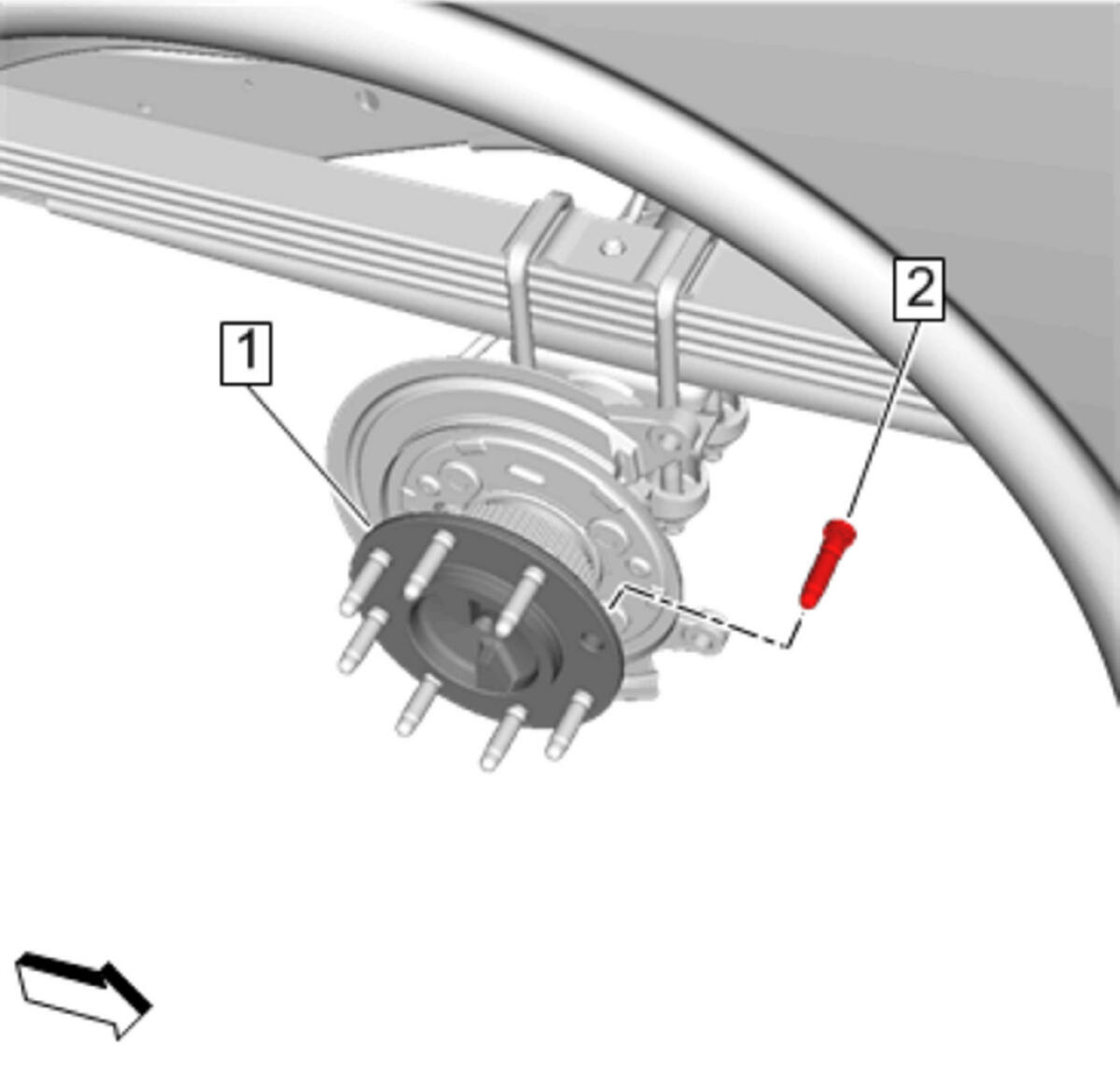

  1. GM4851648Courtesy of GENERAL MOTORS COMPANY

    Wheel Stud(2)@ Axle Shaft (1) - Loosely install

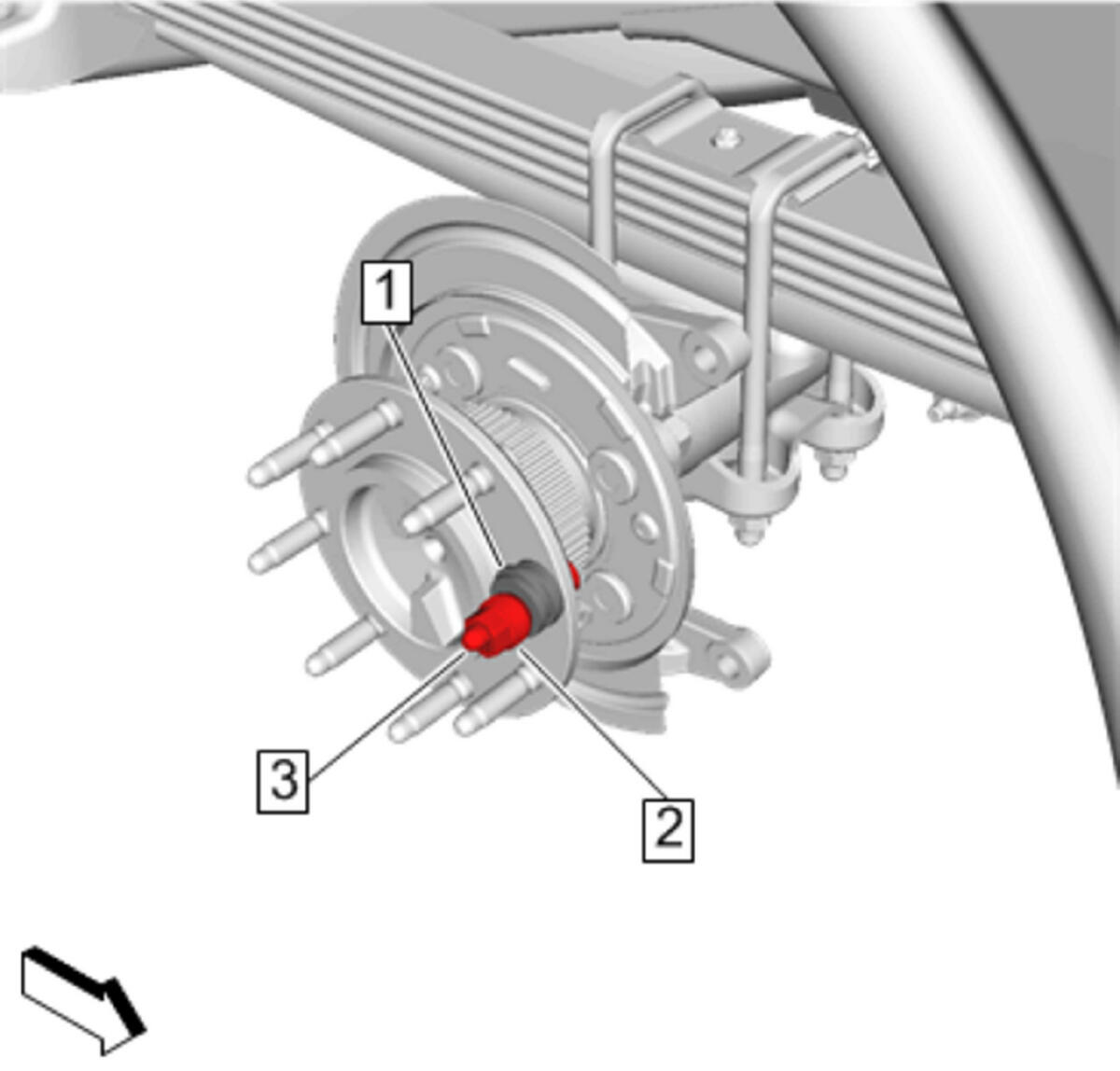

  2. GM4851697Courtesy of GENERAL MOTORS COMPANY

    Install four suitably sized washers (1) to the wheel stud (3) as shown.

  3. Install the wheel nut (2) to the wheel stud (3) and tighten until the wheel stud (3) is seated in the axle shaft.
  4. Remove the wheel nut (2) and the washers (1) from the wheel stud (3).
  5. Parking Brake Shoe - Single Wheel - Install - Parking Brake Shoe Replacement (JH6) , or Parking Brake Shoe Replacement (JH9)
  6. Tire and Wheel Assembly - Install - Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
  7. Lower the vehicle.
