Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

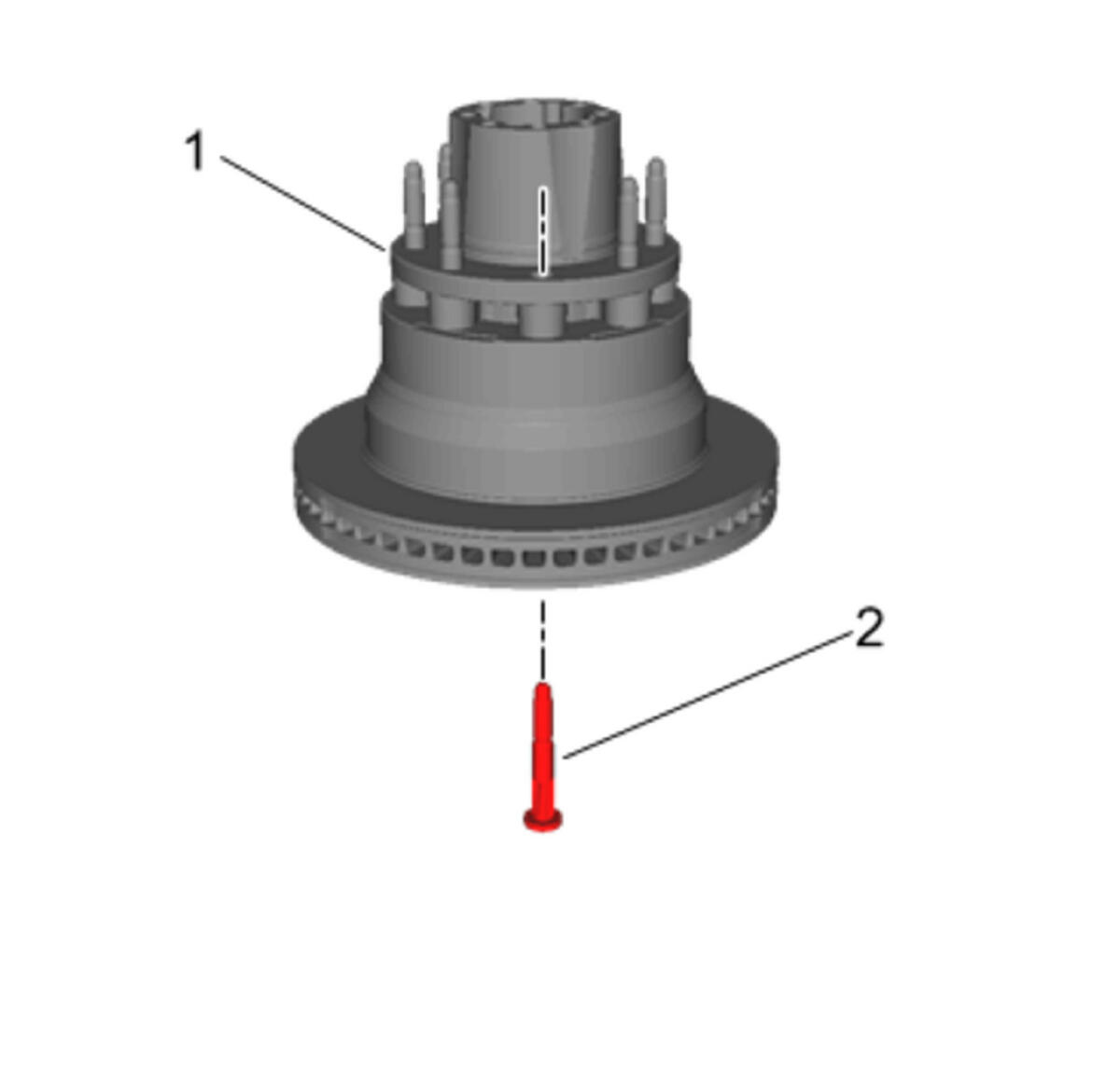

  1. GM4851994Courtesy of GENERAL MOTORS COMPANY

    Wheel Stud(2) - Loosely install

  2. Using a suitable shop press, press the wheel stud (2) into the rear brake rotor and hub assembly (1) until fully seated.
  3. GM4851948Courtesy of GENERAL MOTORS COMPANY

    Rear Brake Rotor and Hub Assembly (1) - Install - Rear Axle Hub, Bearing, Cup, and/or Seal Replacement

  4. Tire and Wheel Assembly - Install - Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
  5. Lower the vehicle.
