Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Lifting and Jacking the Vehicle

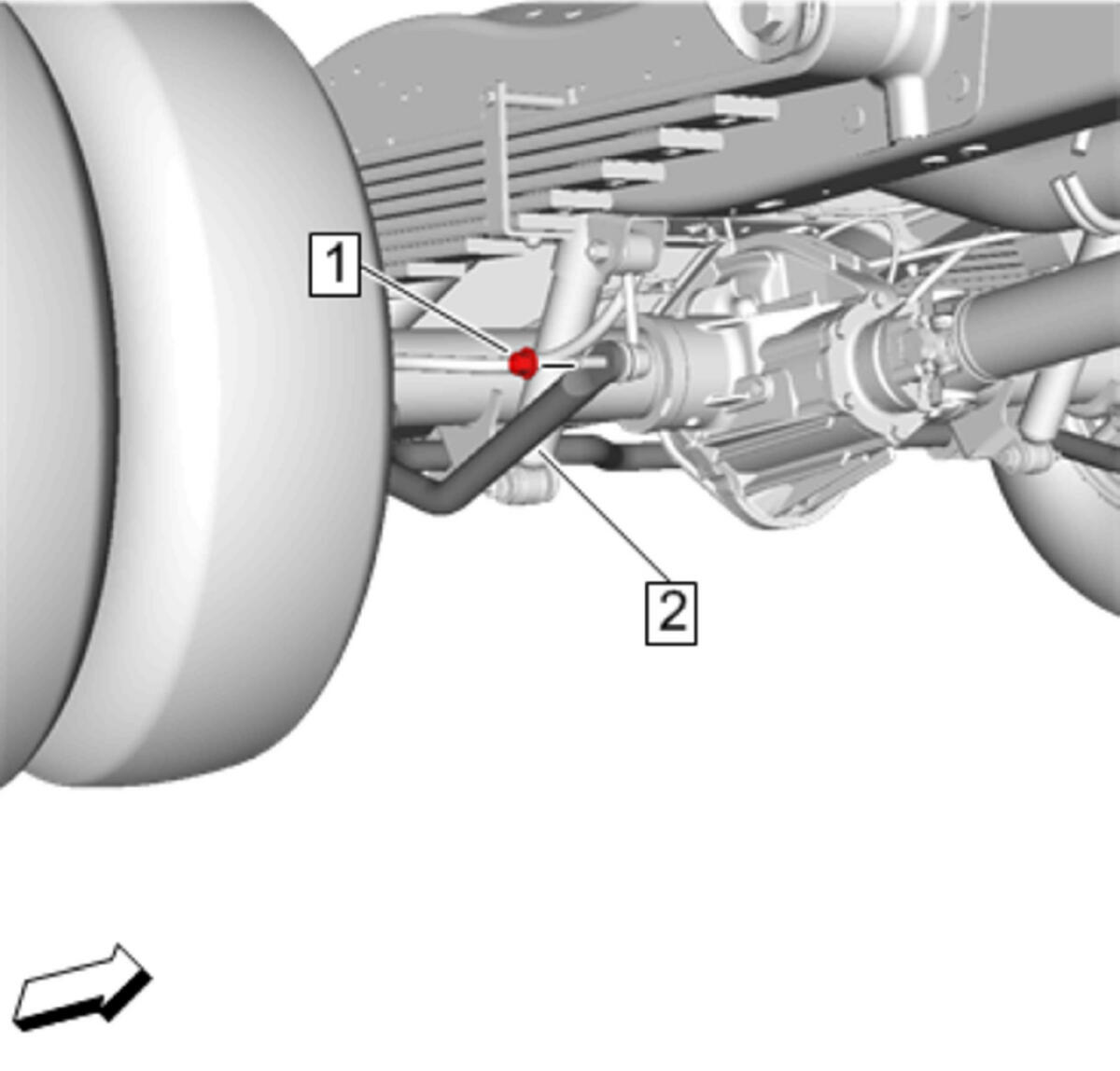

  2. GM4848750Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Use a backup wrench to prevent the rear stabilizer shaft link stud from rotating.

    Rear Stabilizer Shaft Link Nut(1)@Rear Stabilizer Shaft(2) - Remove

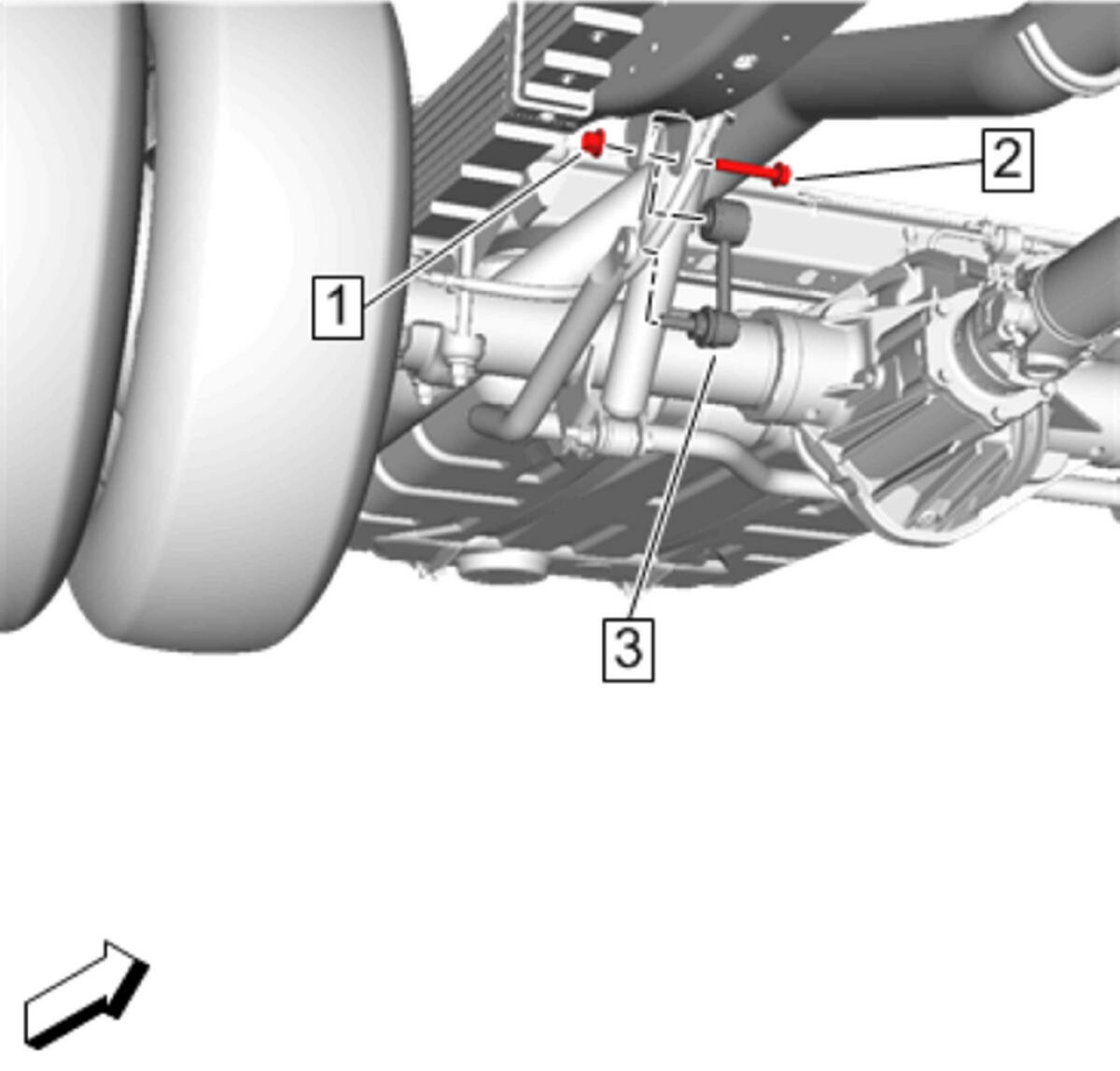

  3. GM4848781Courtesy of GENERAL MOTORS COMPANY

    Rear Stabilizer Shaft Link Nut(1)@ Frame - Remove

  4. Rear Stabilizer Shaft Link Bolt(2)@ Frame - Remove
  5. Rear Stabilizer Shaft Link(3) - Remove
