Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Support the axle with jack stands.
Rear Spring Nut(1)@ Frame - Remove
- Rear Spring Bolt(2)@ Frame - Remove
Rear Spring Nut(3)@ Rear Eye - Remove
- Using the jack stand, reposition the axle as necessary to remove the rear spring bolt at the rear eye.

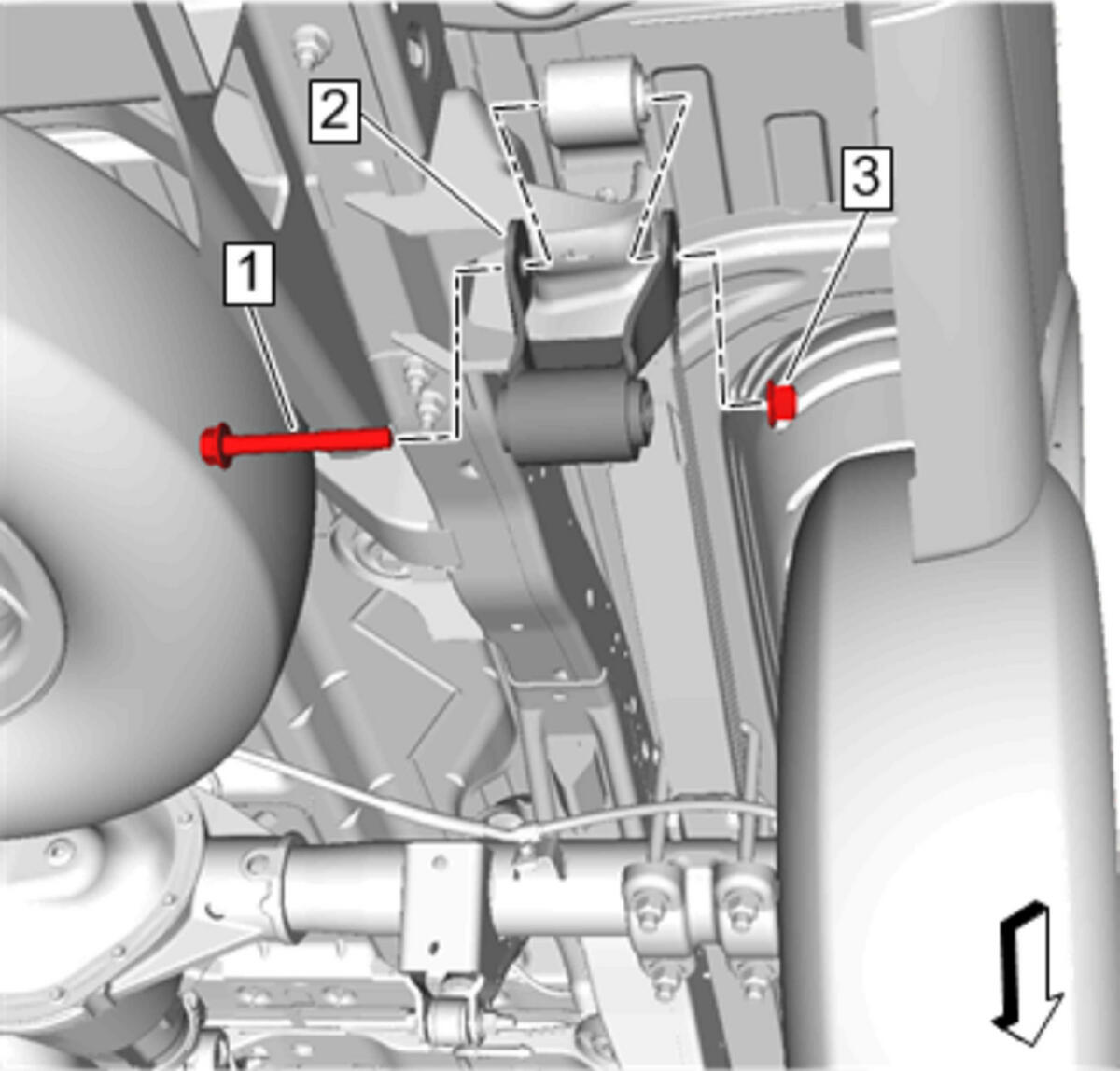

- Rear Spring Bolt(1)@ Rear Eye - Remove
- Rear Spring Shackle(2) - Remove
NOTE:
Observe the length and direction this bolt is installed for proper installation.
