Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- { If equipped }Fuel Tank- Rear - Remove - Fuel Tank Replacement (Passenger/Cargo) , or Fuel Tank Replacement (Chassis Cab, Front Tank) , or Fuel Tank Replacement (Chassis Cab, Rear Tank)
- Remove the tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
- Support the axle with jack stands.

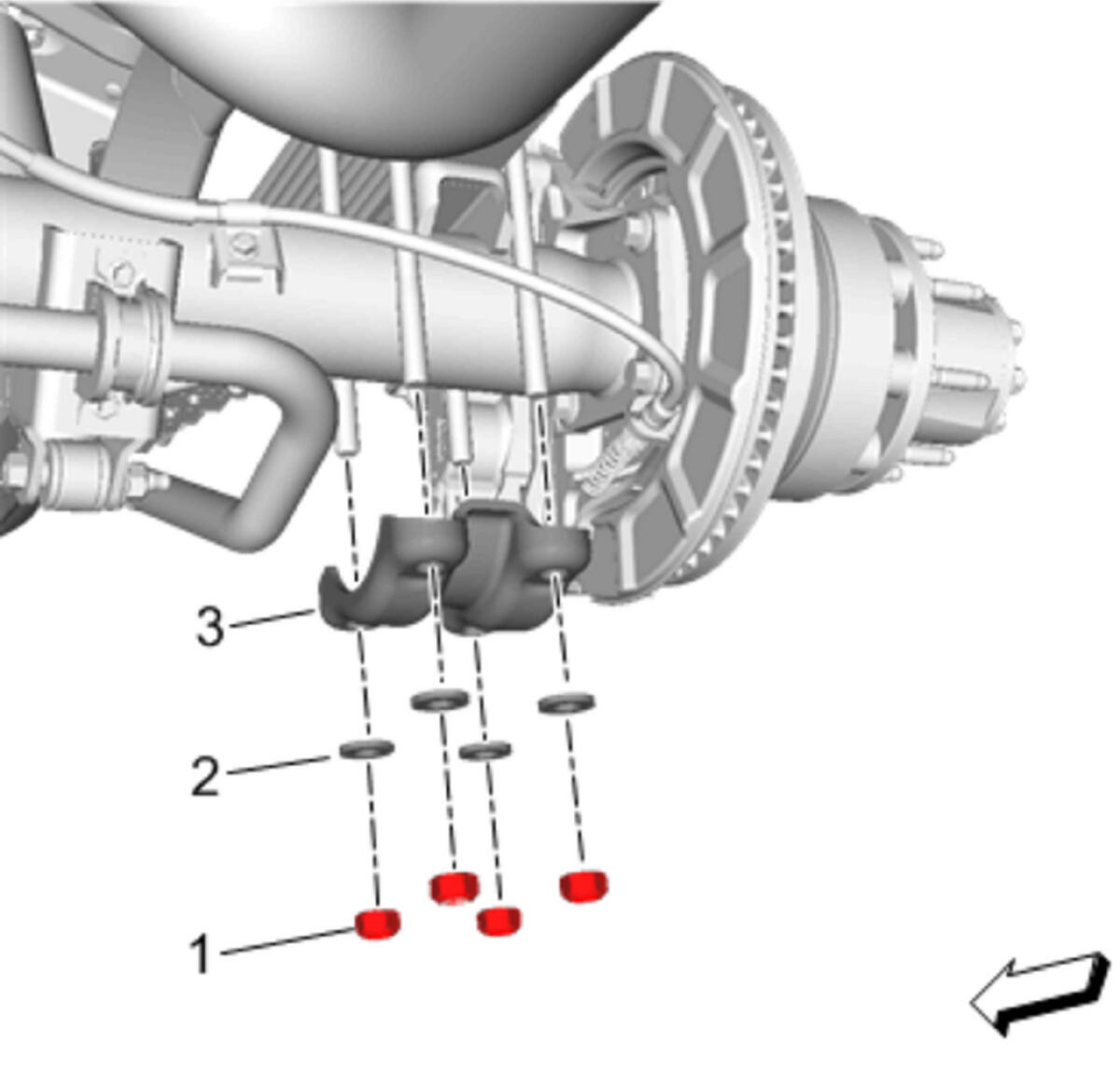

Rear Spring U-Bolt Nut(1) - Remove[4x]
- Rear Spring U-Bolt Washer(2) - Remove[4x]
- Rear Spring Anchor Plate(3) - Remove
Rear Spring U-Bolt(1) - Remove and DISCARD[2x]
- Rear Spring U-Bolt Spacer (2) - Remove
- Using the jack stand, lower the axle enough to relieve tension on the rear leaf spring.
Rear Spring Bolt(1)@ Front Eye - Remove and DISCARD
- Rear Spring Nut(2)@ Frame - Remove
- Rear Spring Bolt(3)@ Frame - Remove
Rear Leaf Spring (1) - Remove
Rear Spring Nut(1)@ Rear Eye - Remove
- Rear Spring Bolt(2)@ Rear Eye - Remove
- Rear Spring Shackle(3) - Remove
