Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Review proper use of room temperature vulcanizing (RTV) sealant prior to installing sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

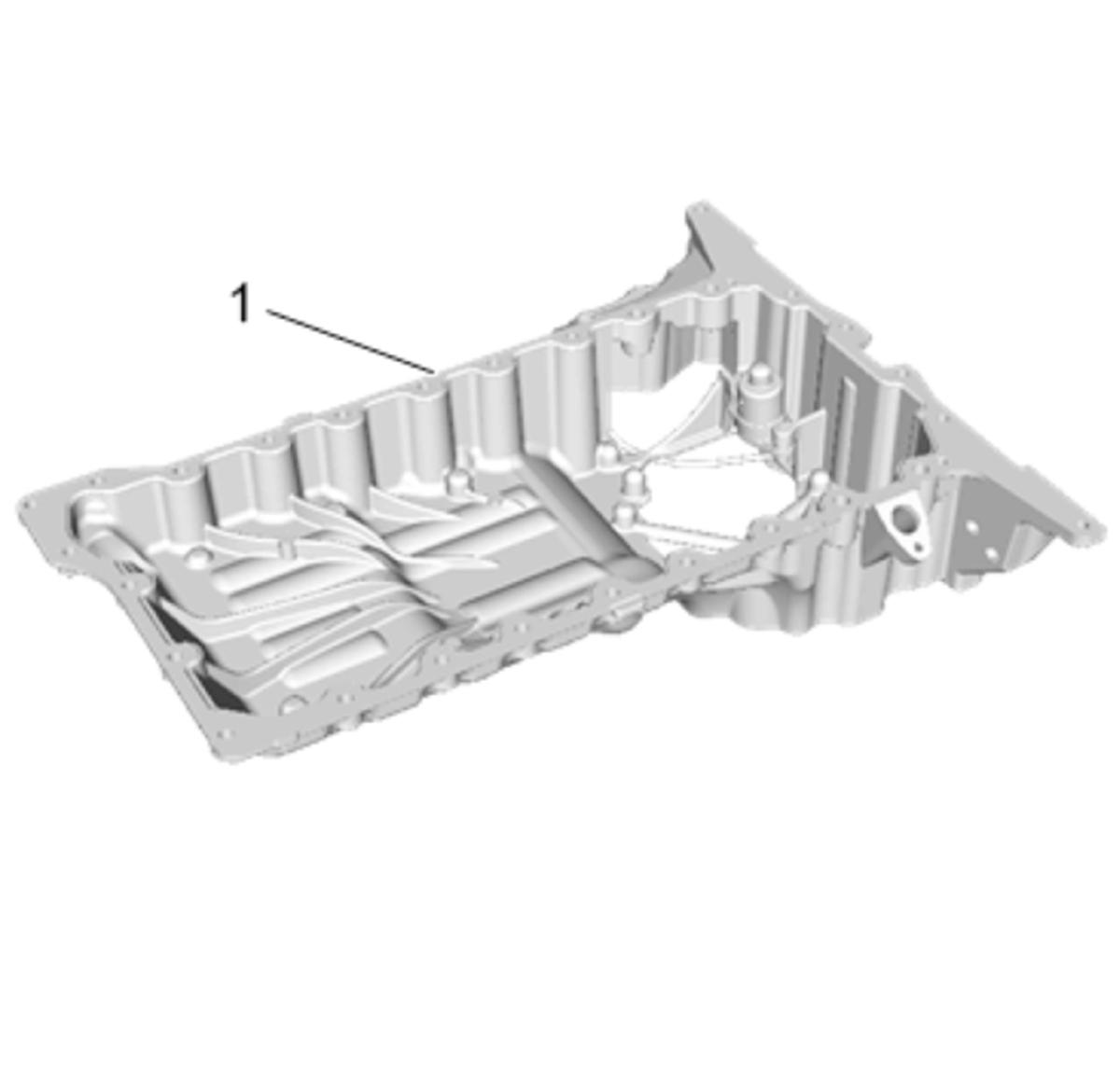

Apply a 5 mm (0. 197 in) bead of sealant to the oil pan flange (1). Adhesives, Fluids, Lubricants, and Sealers
Courtesy of GENERAL MOTORS COMPANY

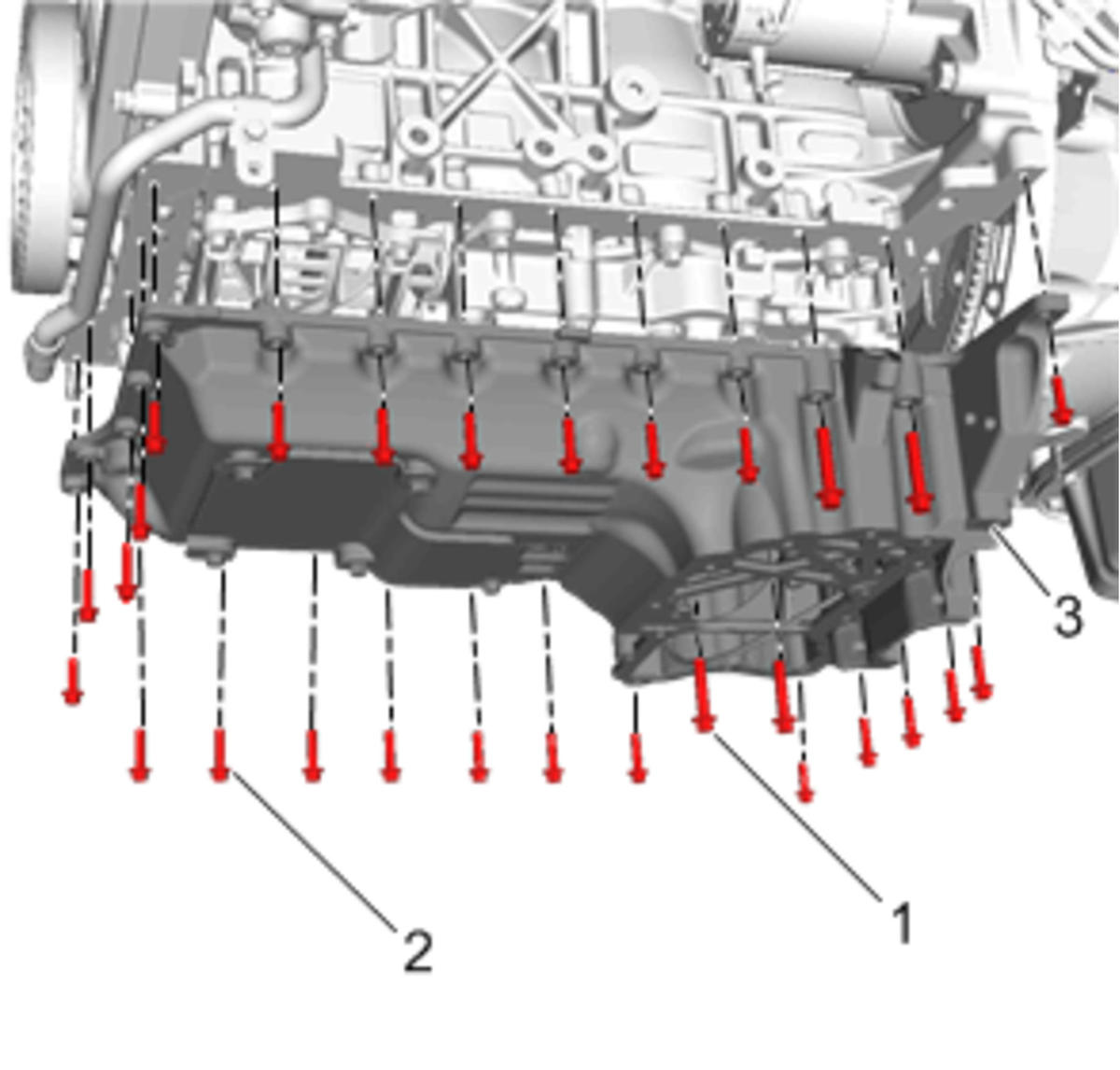

Upper Oil Pan - Install
Upper Oil Pan Bolt(2) - Loosely install[24x]
Upper Oil Pan Bolt(1) - Loosely install[4x]

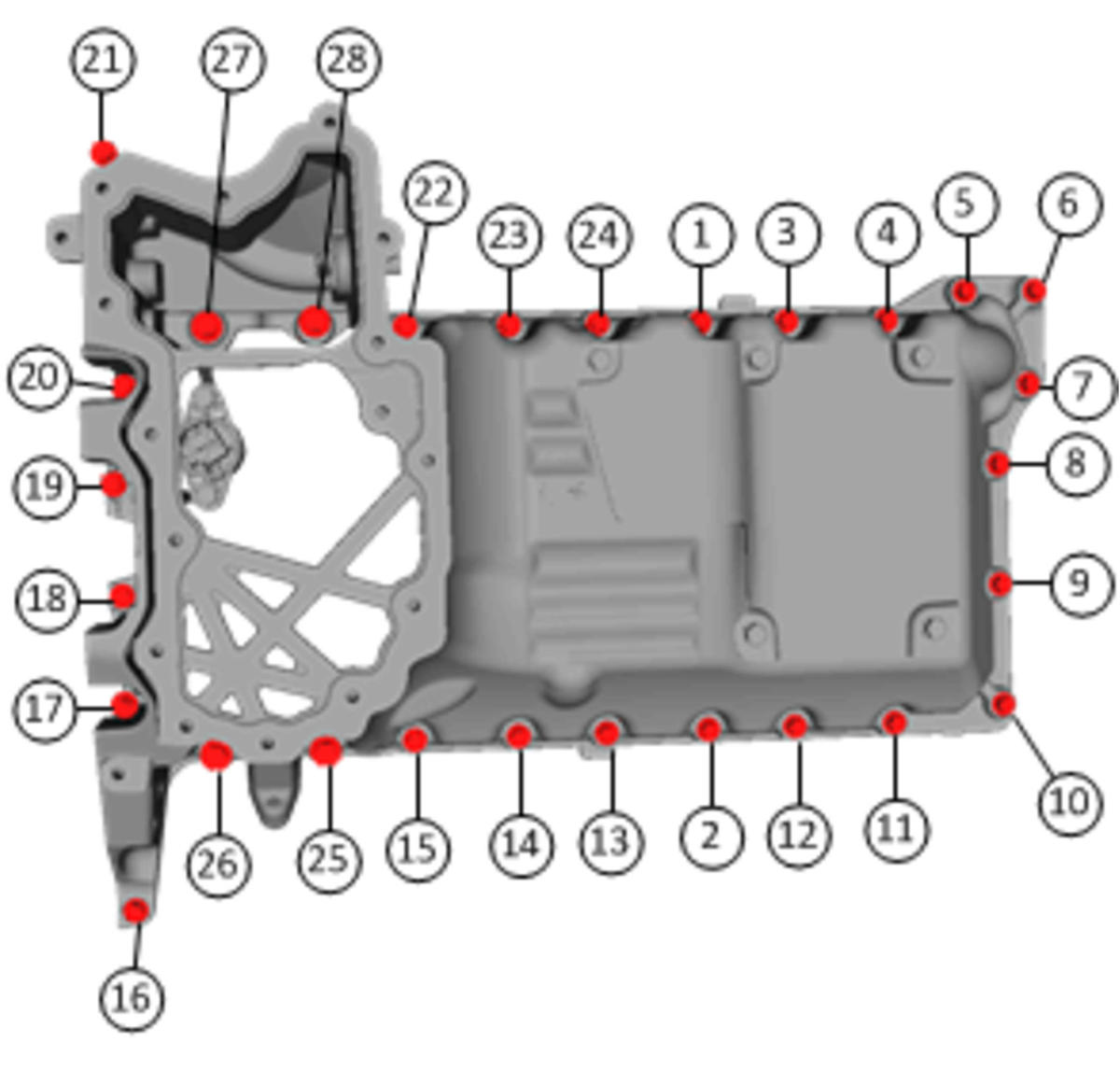

Fig 1: Upper Oil Pan Bolt Tightening Sequence
Courtesy of GENERAL MOTORS COMPANY

Tighten the bolts in the sequence shown.

CAUTION:
Refer to Fastener Caution .

Tighten
1. First Pass bolts 1 - 24 15 N. m (11 lb ft) bolts 25 - 28 45 N. m (33 lb ft).
2. Final Pass bolts 1 - 24 15 N. m (11 lb ft) bolts 25 - 28 45 N. m (33 lb ft).
Courtesy of GENERAL MOTORS COMPANY

Engine Oil Cooler Pipe(3) - Reposition
Engine Oil Cooler Pipe Bracket Bolt(2) - Install and tighten - Engine Oil Cooler Pipe Replacement (LWN) , or Engine Oil Cooler Pipe Replacement (LV1)
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe - Reposition
Transmission Fluid Cooler Pipe Clip Bolt(1) @ Engine Block - Install and tighten - Transmission Fluid Cooler Hose/Pipe Replacement (M5U) , or Transmission Fluid Cooler Hose/Pipe Replacement (MYD)
Courtesy of GENERAL MOTORS COMPANY

Transmission Fluid Cooler Pipe Clip(1) - Engage
Courtesy of GENERAL MOTORS COMPANY

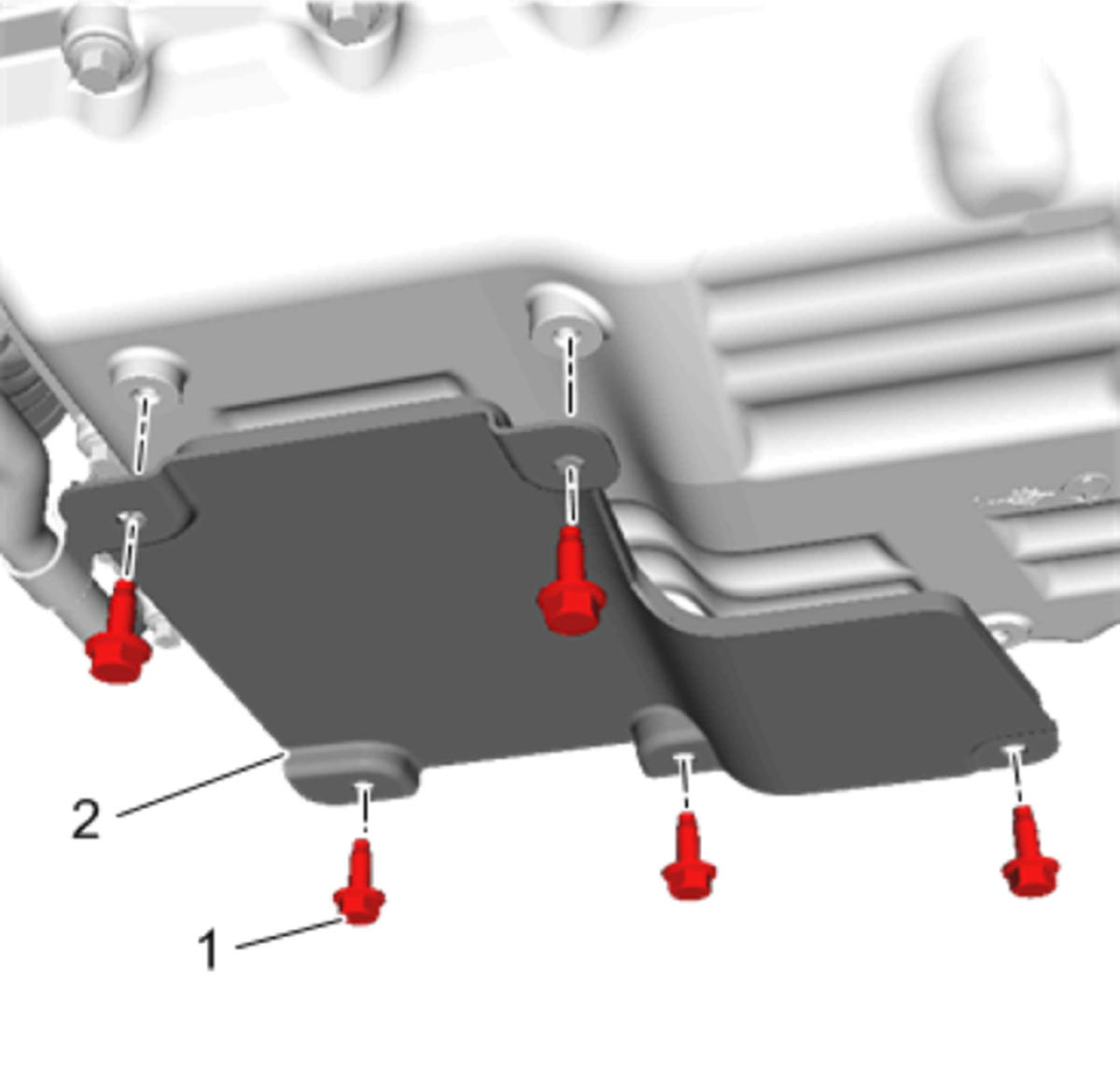

Oil Pan Deadener(2) - Install
Oil Pan Deadener Bolt(1) - Install and tighten[5x]10 N. m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

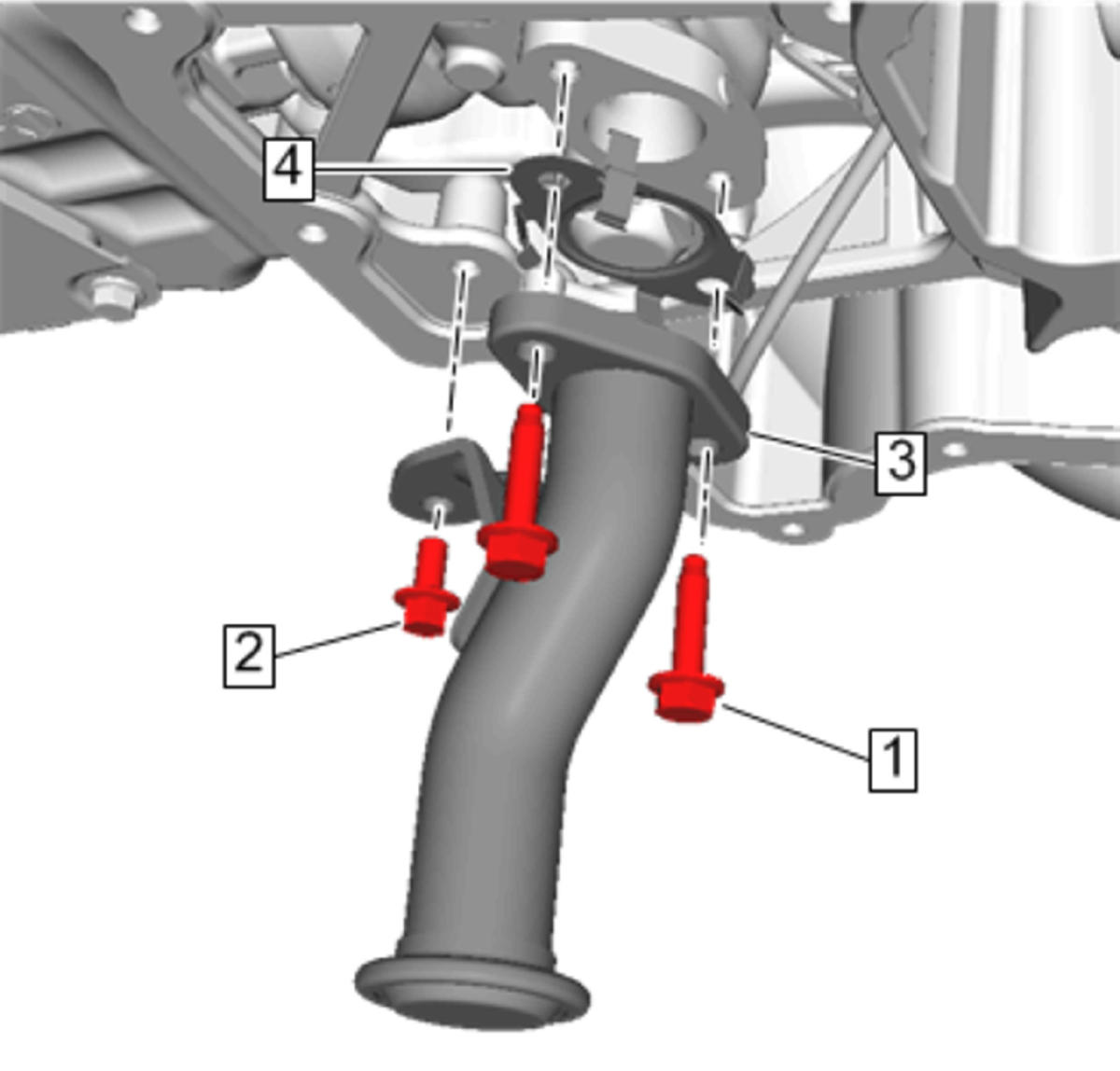

Oil Pump Suction Pipe Gasket(4) - Install NEW
Oil Pump Suction Pipe(3) - Install
Oil Pump Suction Pipe Bolt(2) - Install and tighten10 N. m (89 lb in)
Oil Pump Suction Pipe Bolt(1) - Install and tighten[2x]10 N. m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

Transmission Bolt(1) - Install - Transmission Replacement (With LV1 Engine) , or Transmission Replacement (With LWN Engine)
Transmission Bolt(2-4) - Install - Transmission Replacement (With LV1 Engine) , or Transmission Replacement (With LWN Engine)
Courtesy of GENERAL MOTORS COMPANY

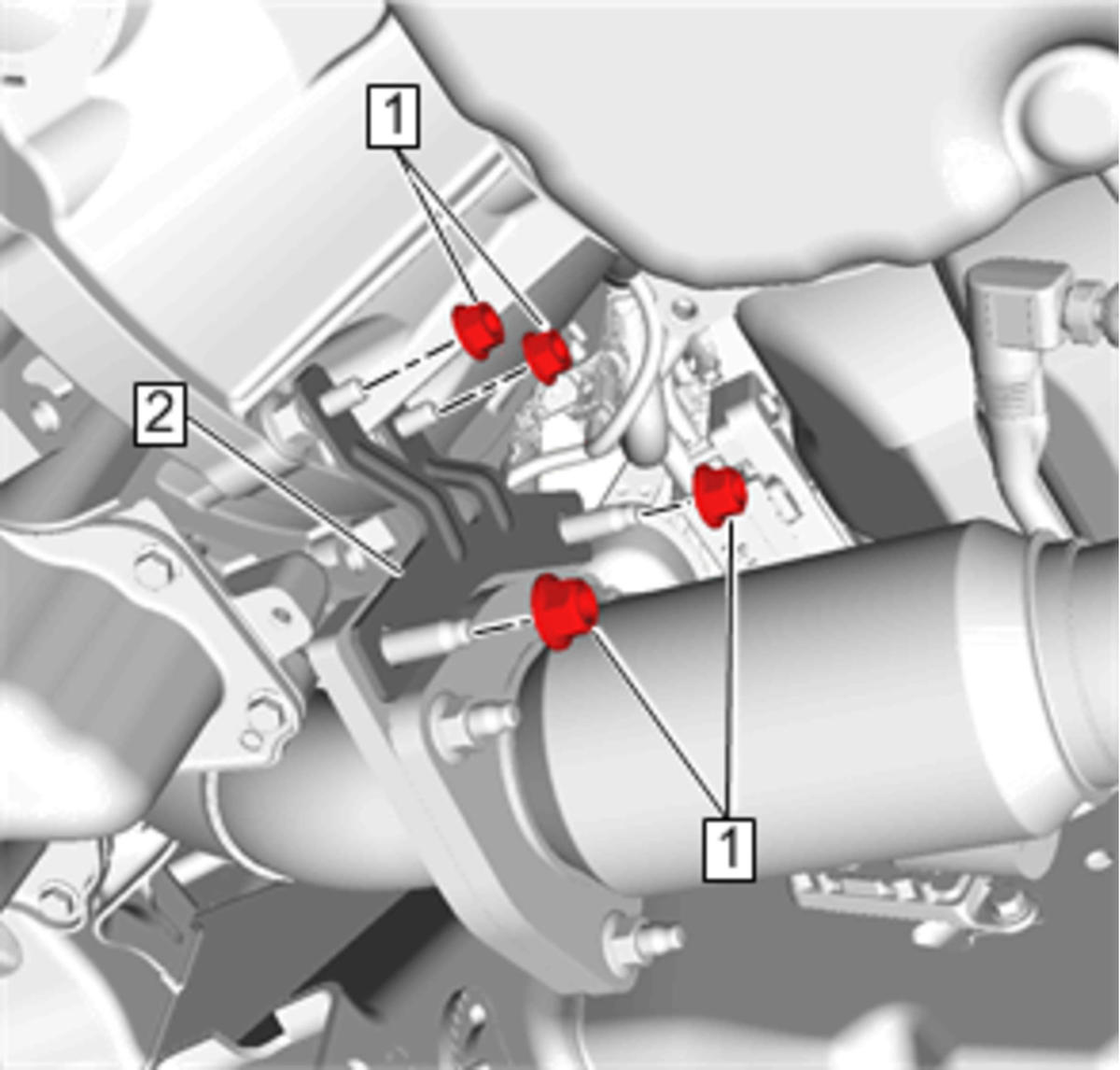

Catalytic Converter Bracket(2) - Install
Catalytic Converter Brace Bracket Nut(1) - Install[4x] - Catalytic Converter Replacement (LWN) , or Catalytic Converter Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector(2) - Connect
Reposition the electrical connector sleeve (1).
Oil Level Indicator Tube - Install - Oil Level Indicator Tube Replacement
Crankshaft Position Sensor - Install - Crankshaft Position Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector(1) - Connect
Front Suspension Crossmember - Install - Front Suspension Crossmember Replacement
Change the engine oil and filter. Engine Oil and Oil Filter Replacement
