Turbocharger Oil Feed Pipe Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

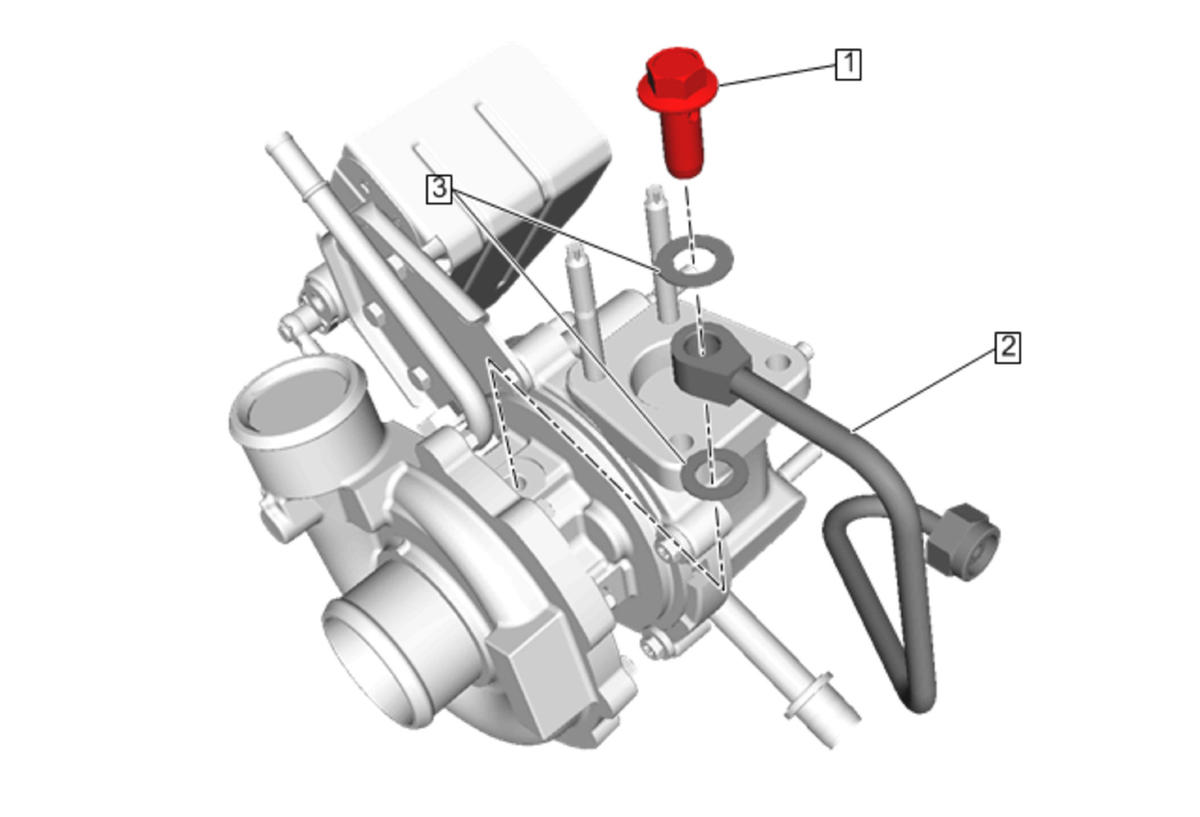

| Callout | Component Name |
|---|---|
| Preliminary Procedure Exhaust Manifold Replacement (LWN)
NOTE:
For illustration purposes ONLY, the graphic is shown with the exhaust manifold removed from the turbocharger. It is not necessary to remove the exhaust manifold from the turbocharger. |
|
| 1 | Turbocharger Oil Feed Pipe Bolt
CAUTION:
Refer to Fastener Caution . Tighten 25 N. m (18 lb ft) |
| 2 | Turbocharger Oil Feed Pipe |
| 3 | Turbocharger Oil Feed Pipe Washer[2x] Procedure Install NEW sealing washers. |
