Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Timing Belt Front Cover - Remove - Timing Belt Front Cover Replacement
Remove and DISCARD the core plug (1).
Install EN-51025 timing tool (1) on the exhaust camshaft.

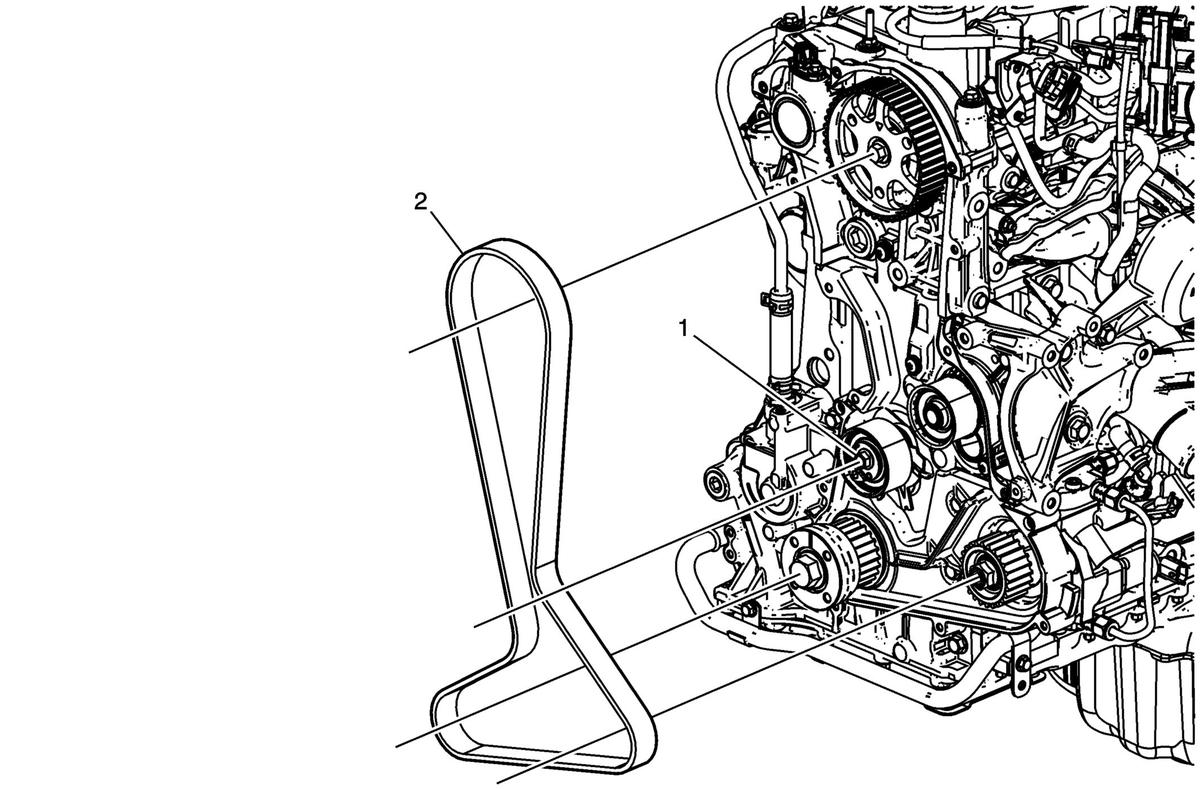

Timing Belt Tensioner Bolt(1) - Loosen
- Timing Belt(2) - Remove
