Timing Belt Rear Cover Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

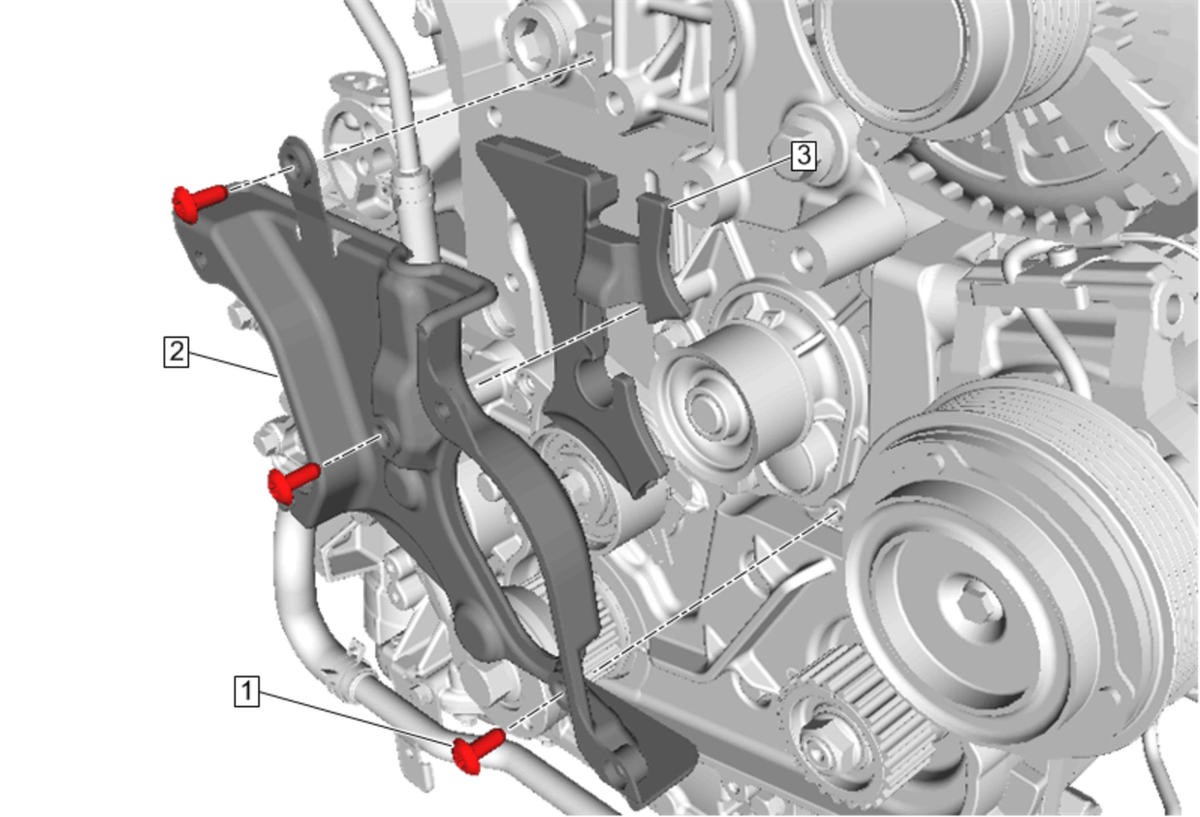

| Callout | Component Name |
|---|---|
| Preliminary Procedure Timing Belt Replacement |
|
| 1 | Timing Belt Rear Cover Bolt[3x]
CAUTION:
Refer to Fastener Caution . Tighten 11 N. m (97 lb in) |
| 2 | Timing Belt Rear Cover |
| 3 | Timing Belt Rear Cover Gasket |
