Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine oil. Engine Oil and Oil Filter Replacement
  2. GM4606219Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector(1) - Disconnect

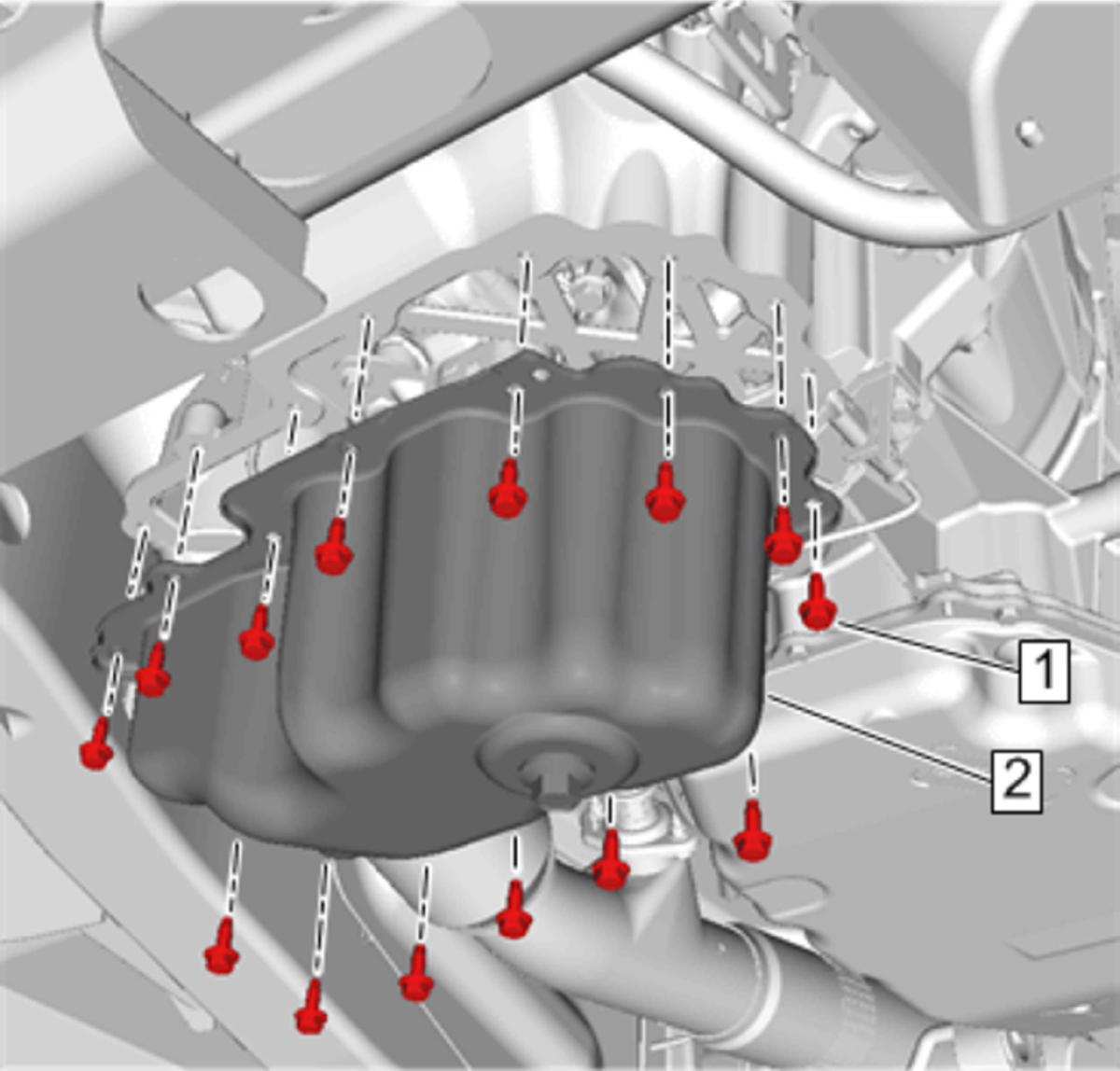

  3. GM4606218Courtesy of GENERAL MOTORS COMPANY

    Lower Oil Pan Bolt(1) - Remove[14x]

  4. Lower Oil Pan(2) - Remove
  5. Lower Oil Pan(2) - Clean and inspect - Lower Oil Pan Cleaning and Inspection
