Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engine Mount - Install
  2. Lower the engine.

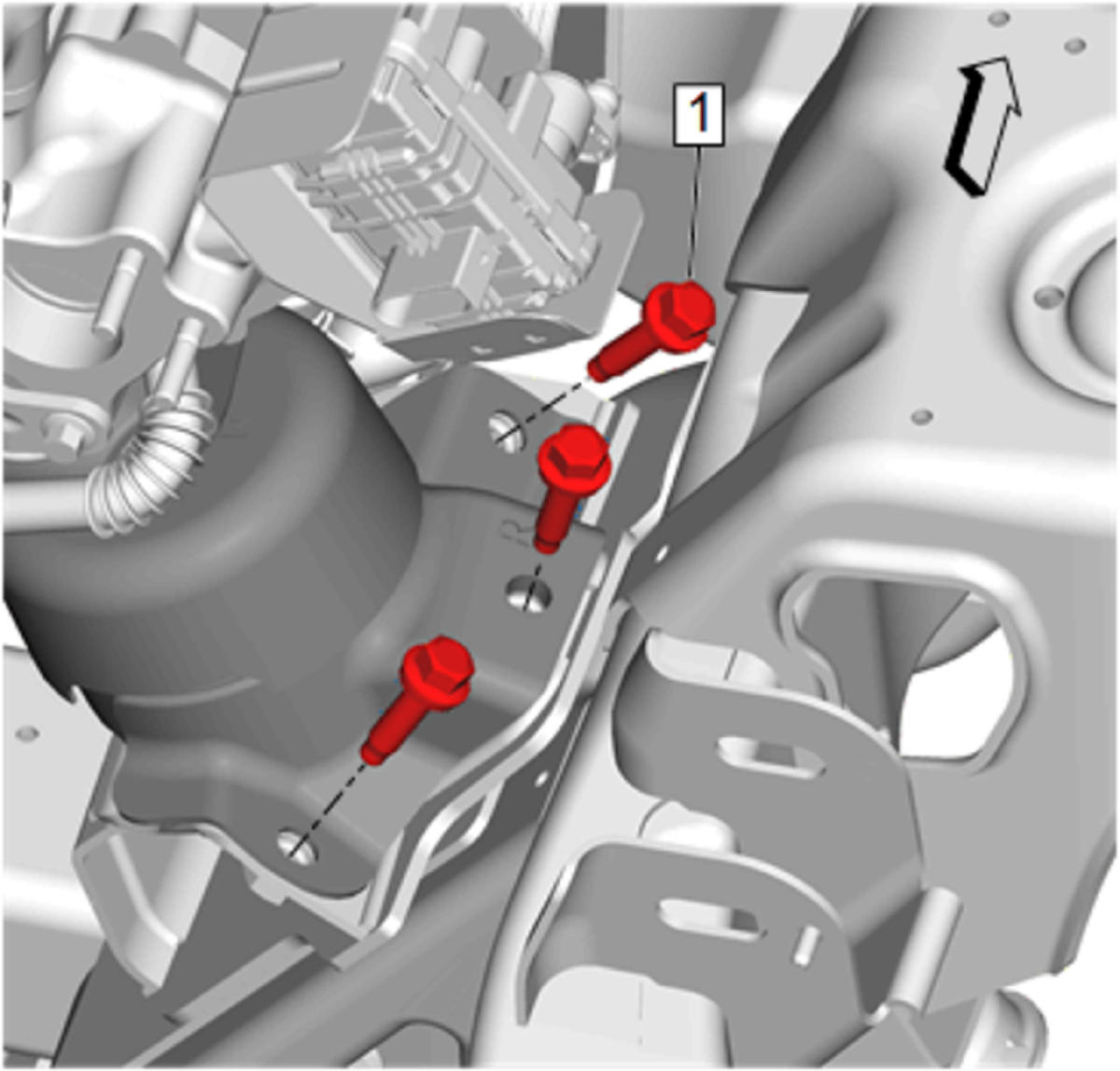

  3. GM4920177Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    For ease of installation, hand start all engine mount fasteners prior to tightening.

    CAUTION:

    Refer to Fastener Caution .

    Engine Mount Bolt(1) @ Frame - Install and tighten[3x]70 N. m (52 lb ft)

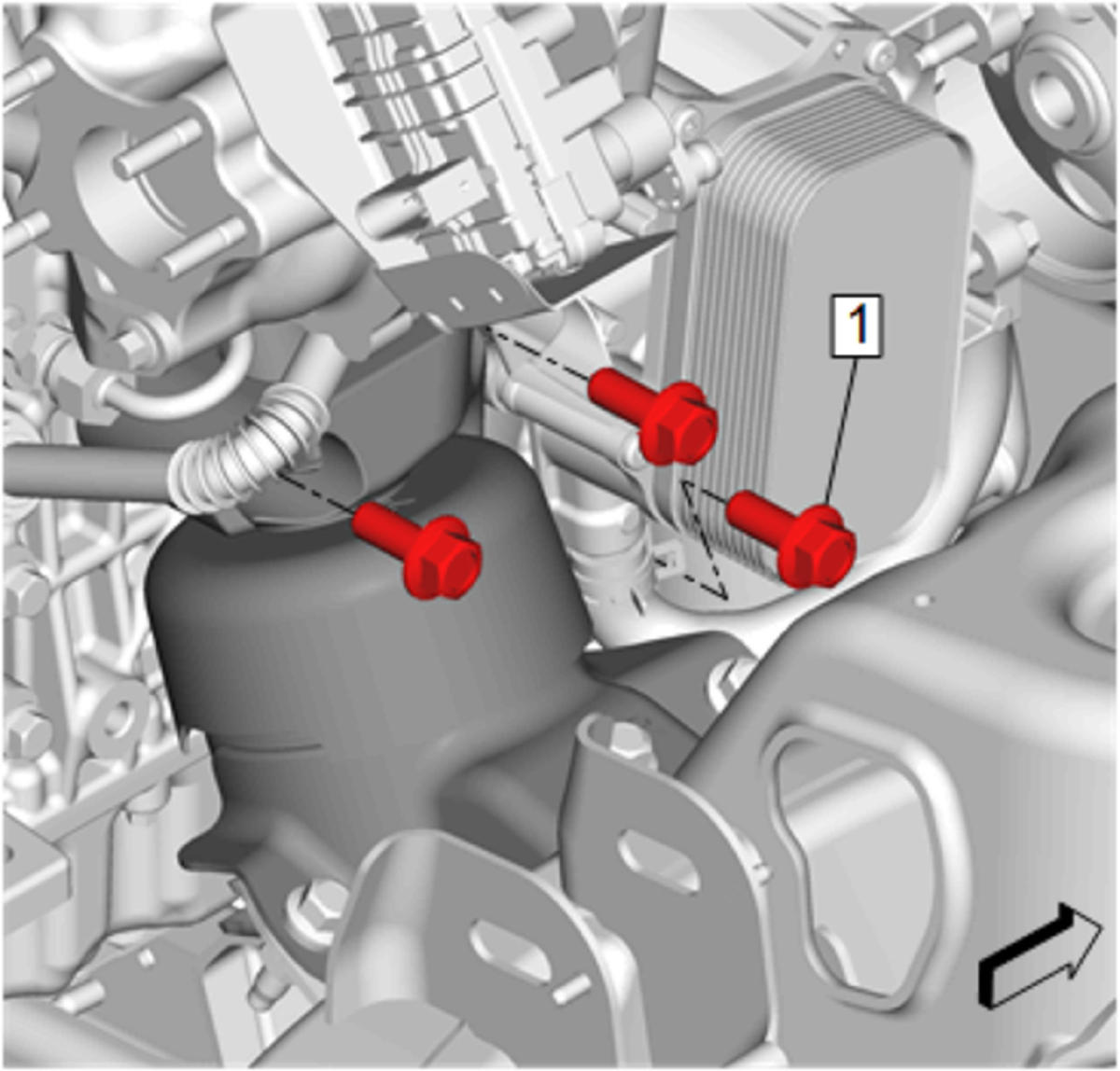

  4. GM4920113Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Bolt(1) @ Engine Block - Install and tighten[3x]100 N. m (74 lb ft)

  5. Lower and remove the jack.
  6. GM4874591Courtesy of GENERAL MOTORS COMPANY

    Oil Pan Deadener(2) - Install

    7. NOTE:

    Engine front crossmember removed for clarity.

  7. Oil Pan Deadener Bolt(1) - Install and tighten[5x]10N. m (89 lb in)
  8. Turbocharger - Install - Compressor Air Intake Turbocharger Replacement
