Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For ease of installation, hand start all engine mount fasteners prior to tightening.
- CAUTION:
This component uses torque-to-yield bolts. When servicing this component do not reuse the bolts, New torque-to-yield bolts must be installed. Reusing used torque-to-yield bolts will not provide proper bolt torque and clamp load. Failure to install NEW torque-to-yield bolts may lead to engine damage.
NOTE:Install NEW fasteners. (1)
Engine Mount(2) - Install

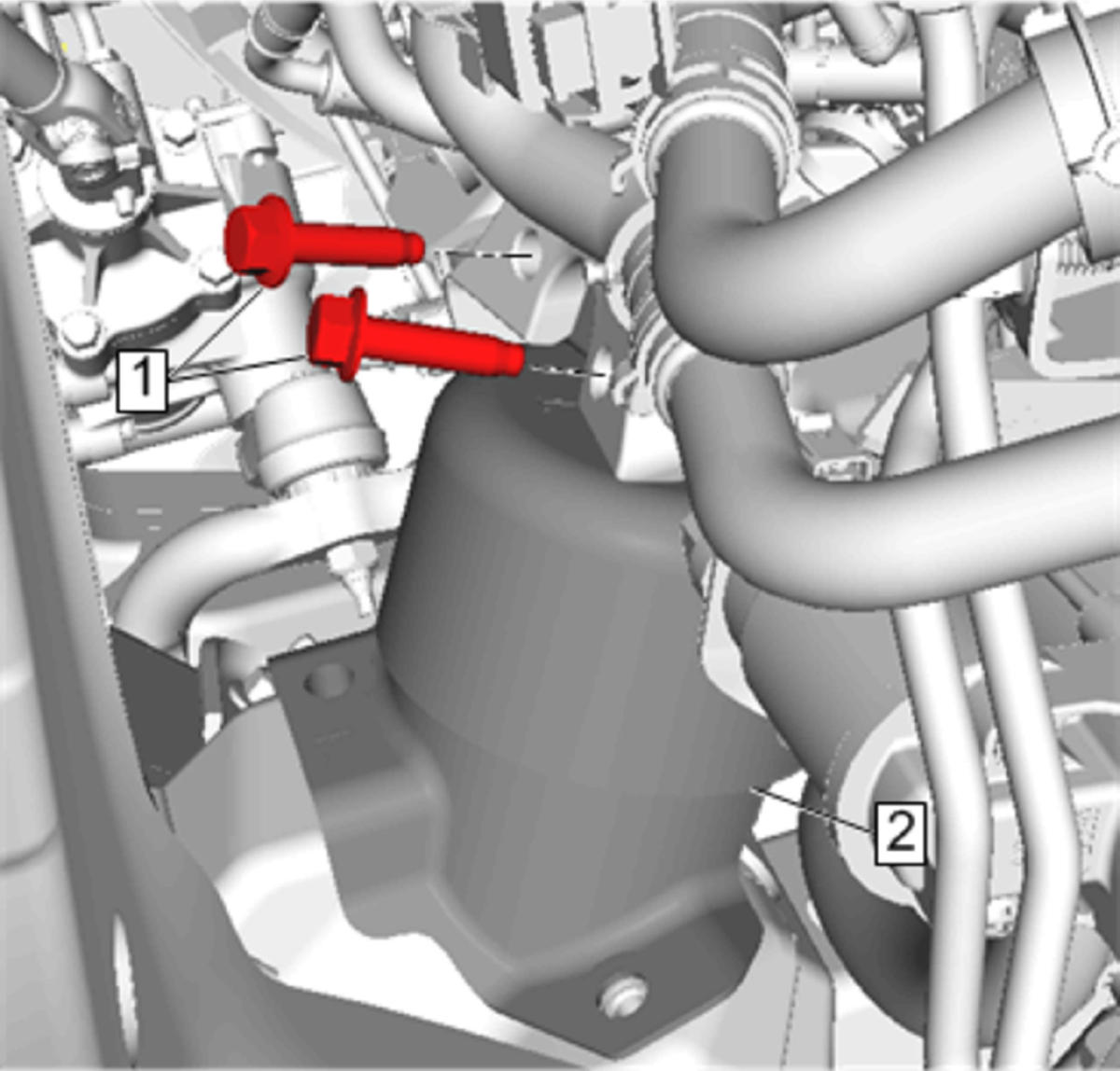

- Engine Mount Bracket Fastener(1) - Install NEW[2x]
Tighten
- First Pass 50 N. m (37 lb ft)
- Final Pass 60-75 degrees
- CAUTION:
Refer to Fastener Caution .

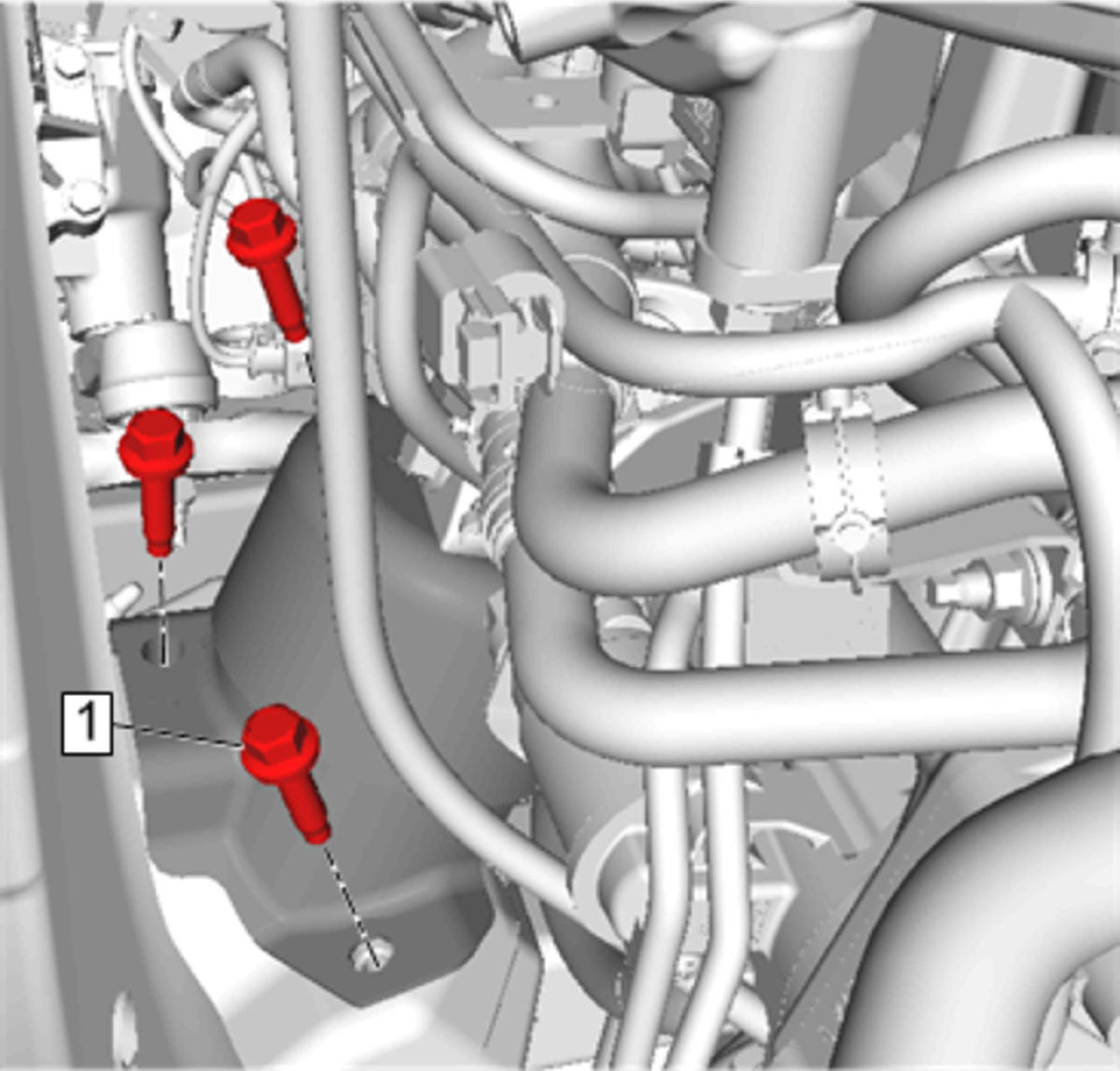

Engine Mount Fastener(1) - Install and tighten[3x]70 N. m (52 lb ft)
- Lower and remove the jack.

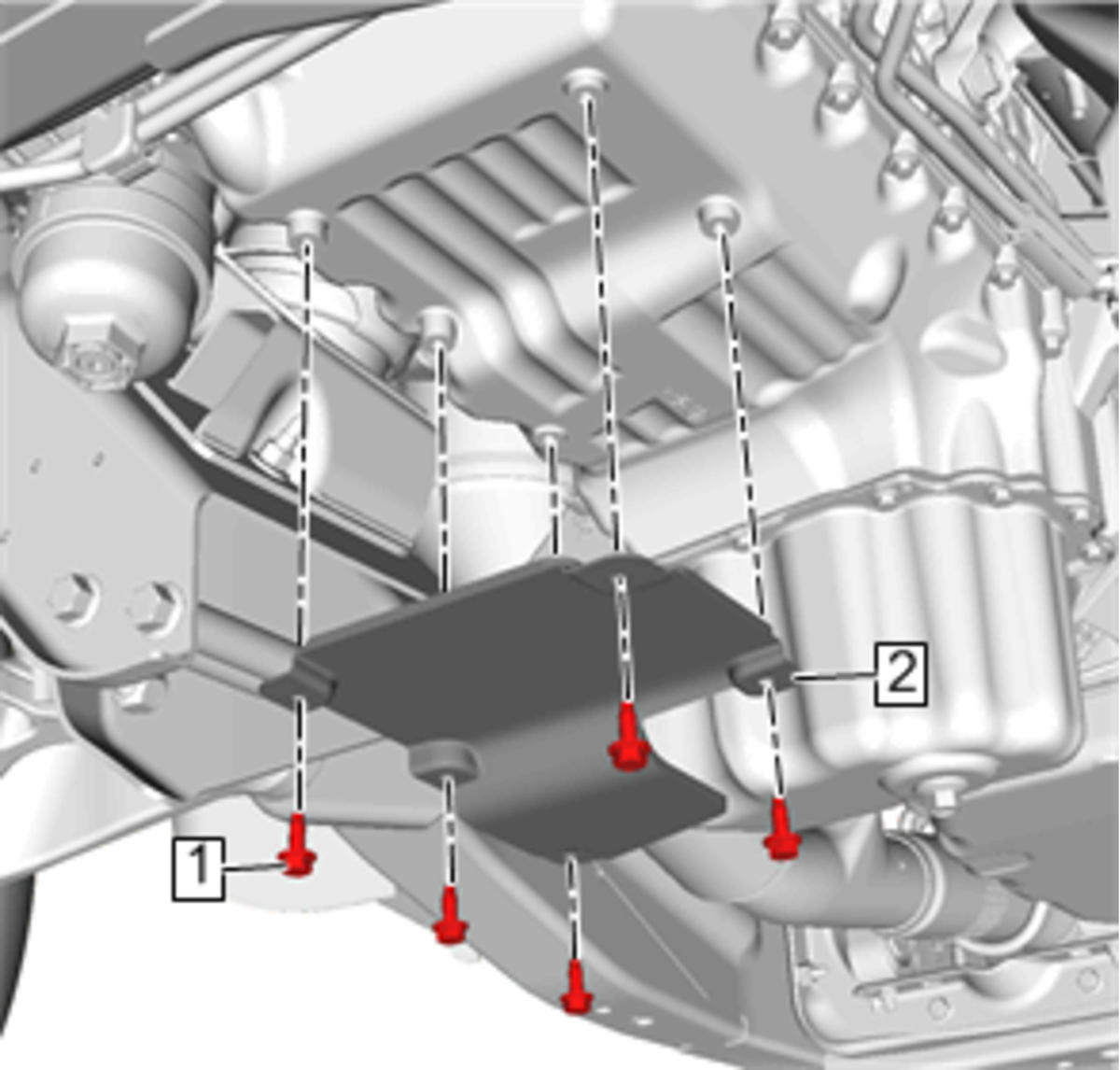

Oil Pan Deadener(2) - Install
- Oil Pan Deadener Bolt(1) - Install and tighten[5x]10N. m (89 lb in)
- Front Wheelhouse Splash Shield-Left Side - Install - Wheelhouse Splash Shield Replacement (Left Side) , or Wheelhouse Splash Shield Replacement (Right Side)
- Battery Negative Cable - Connect - Battery Negative Cable Disconnection and Connection (Single Battery) , or Battery Negative Cable Disconnection and Connection (Dual Battery)
- Engine Cover - Install - Engine Cover Replacement
NOTE:
Engine front crossmember removed for clarity.
