Engine Lift Front Bracket Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

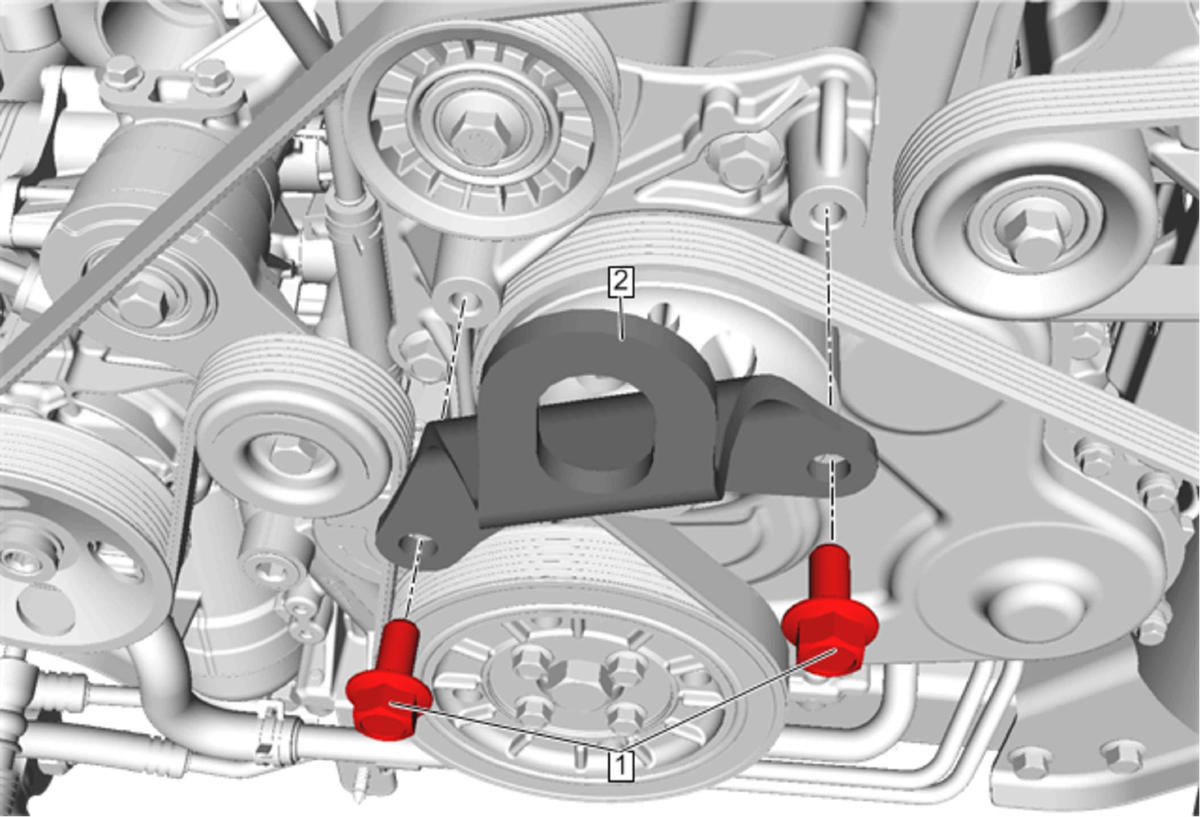

GM4852914Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Fan Blade Clutch Replacement (LWN) , or Fan Blade Clutch Replacement (LV1) , or Fan Blade Clutch Replacement (L96, LC8)
1 Engine Lift Front Bracket Bolt[2x]
CAUTION:

Refer to Fastener Caution .


Tighten
58N. m(43 lb ft)
2 Engine Lift Front Bracket
