Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- NOTE:
- The crankshaft rear oil seal must be installed with the cupped side of the seal facing the tool.
- The bottom edge of the crankshaft rear oil seal housing must hang off the edge of the bench to allow it to lay flat.

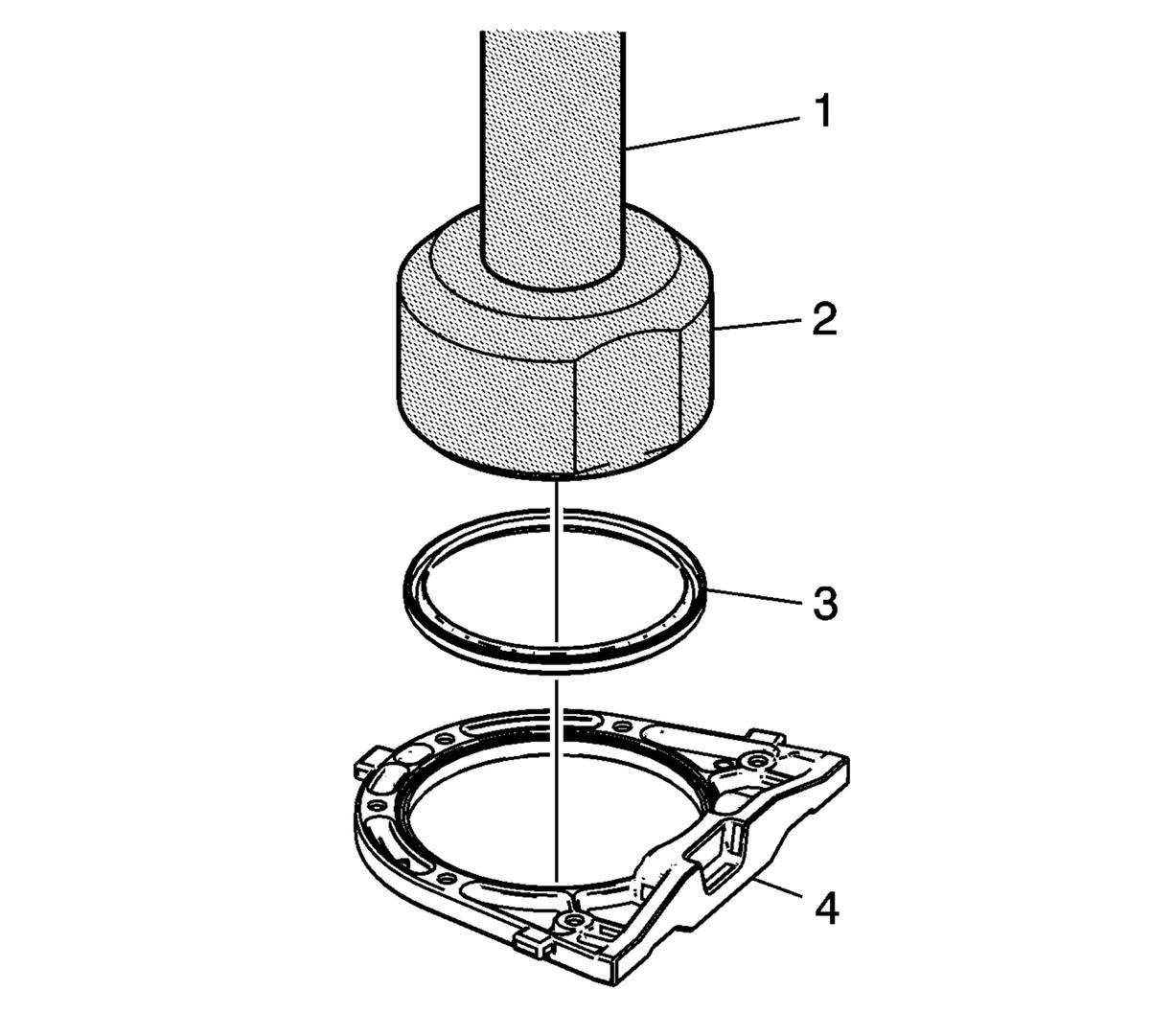

Install the NEW crankshaft rear oil seal (3) into the crankshaft rear oil seal housing (4) using the EN-50026 installer (2) and GE-8092 handle (1) until the seal bottoms out on the housing.
- NOTE:
If removed, install the crankshaft rear oil seal housing locating pin (5) and exciter ring locating pin (6).
NOTE:Lubricate the crankshaft sealing surface with engine oil. Adhesives, Fluids, Lubricants, and Sealers

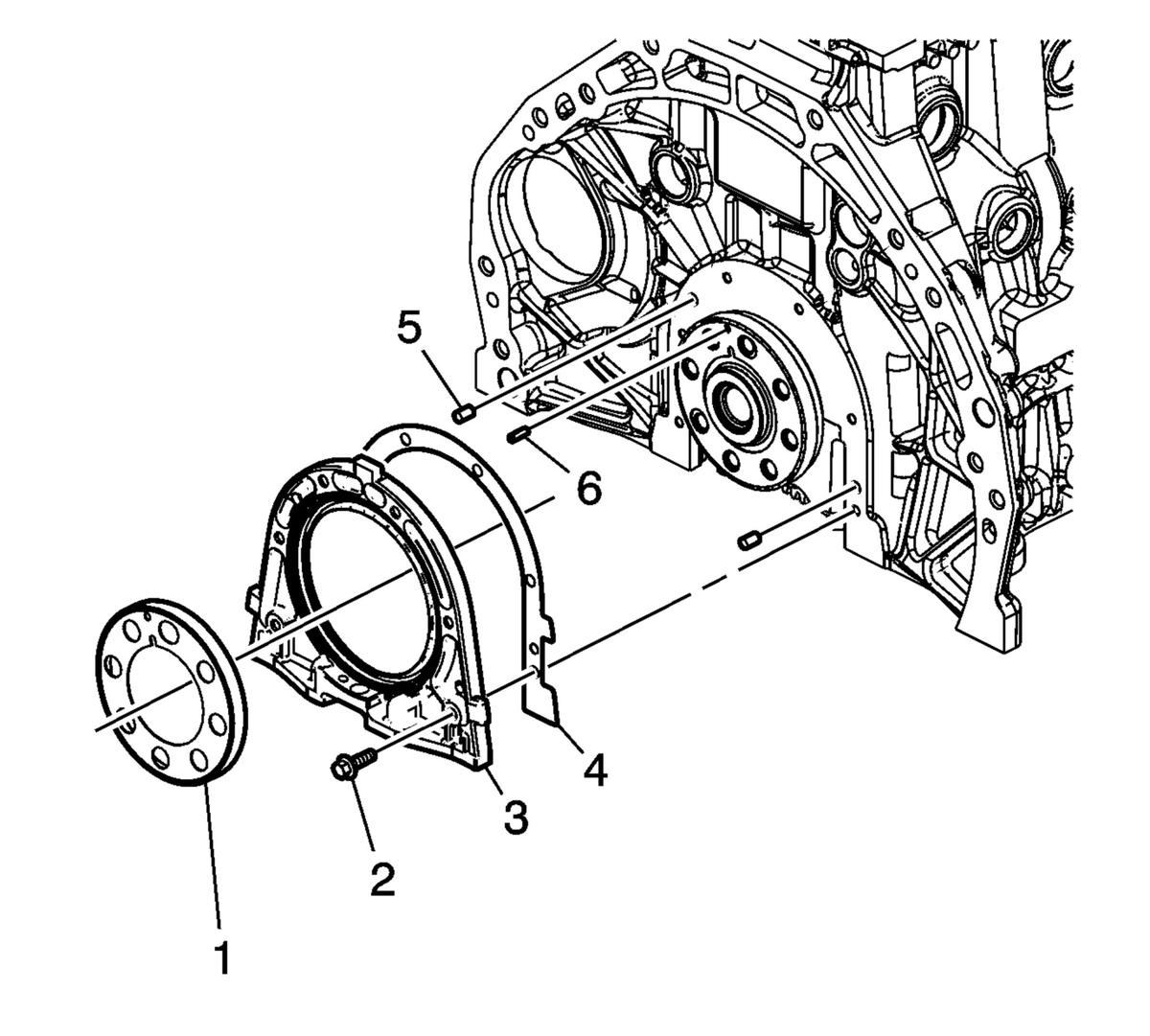

Crankshaft Rear Oil Seal Housing Gasket(4) - Install
- Crankshaft Rear Oil Seal Housing(3) - Install
- Crankshaft Rear Oil Seal Housing Bolt(2) - Loosely install[6x]
- Crankshaft Position Sensor Exciter Ring(1) - Install
- CAUTION:
Refer to Fastener Caution .

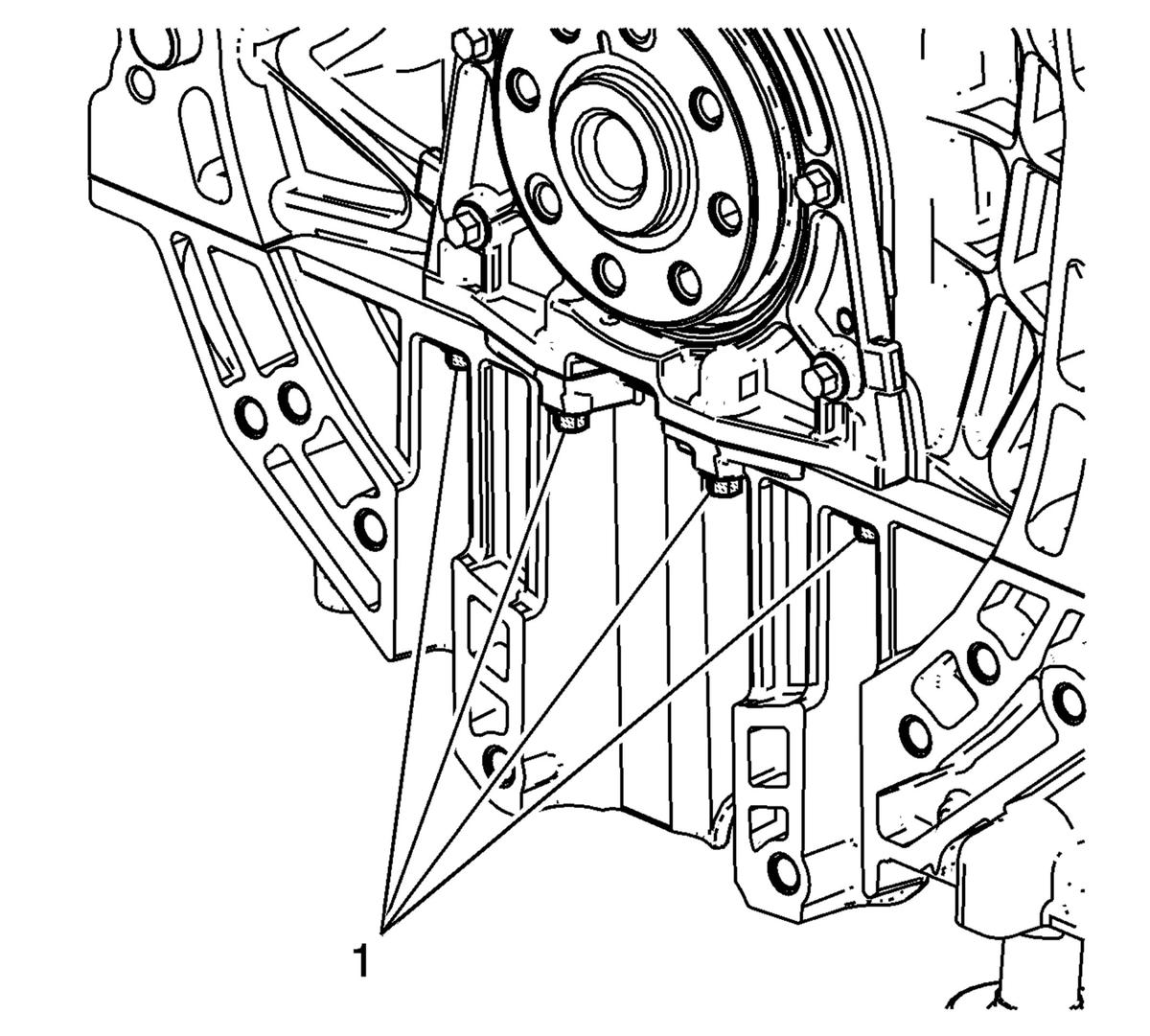

NOTE:For ease of installation, hand start the rear oil seal housing bolts (1) at the oil pan before tightening the rear oil seal housing.
Tighten the oil pan bolts. (1)15 N. m (11 lb ft)
-

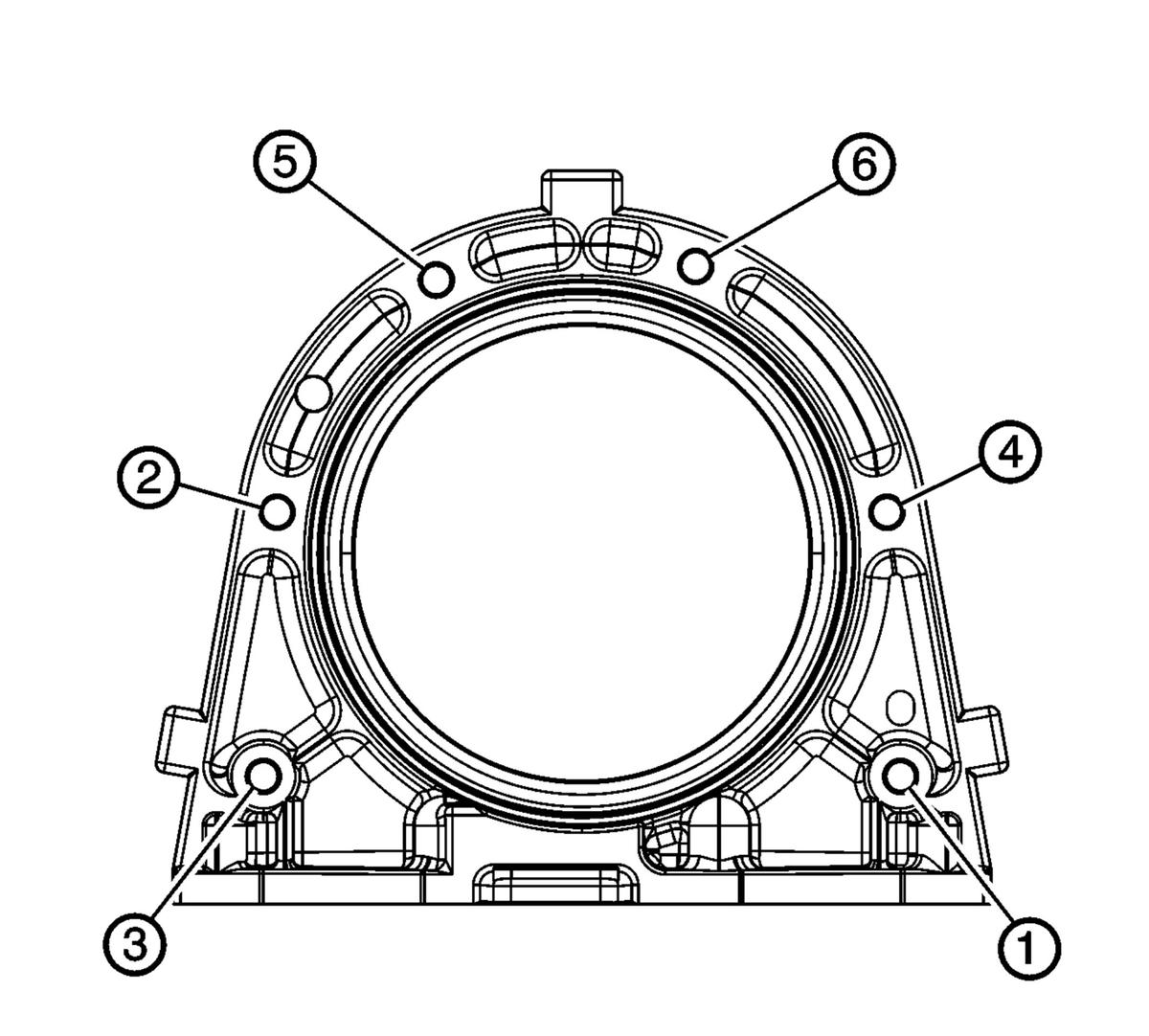

Tighten the bolts in the sequence shown. 15 N. m (11 lb ft)
- Transmission Replacement - Install
