Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Valve Rocker Arm Cover - Remove - Valve Rocker Arm Cover Replacement
- Camshaft Timing Pulley - Remove - Camshaft Timing Pulley Replacement

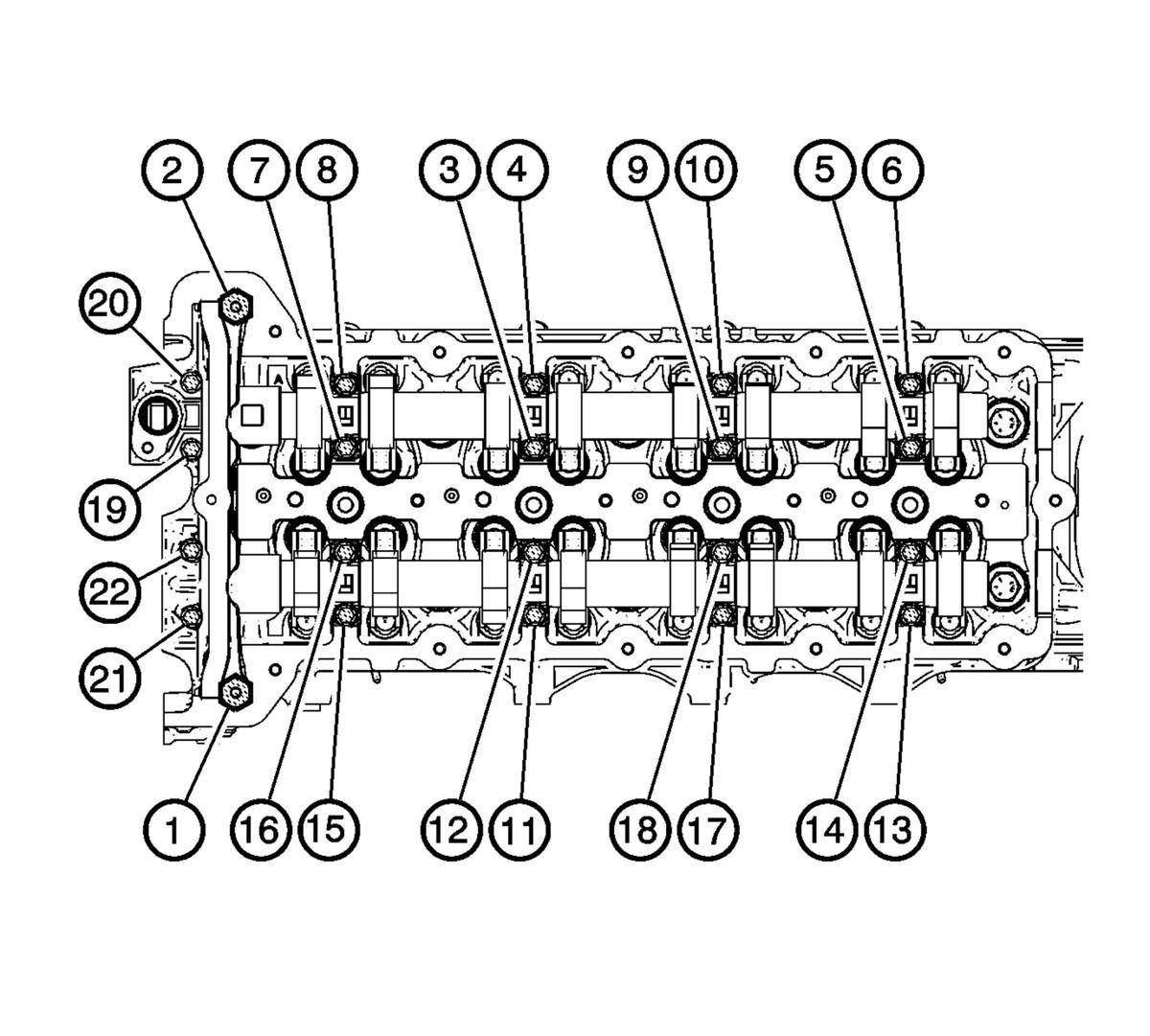

Remove the camshaft cap bolts in sequence.
- NOTE:
Mark the camshaft caps before removal to ensure installation in their original location.

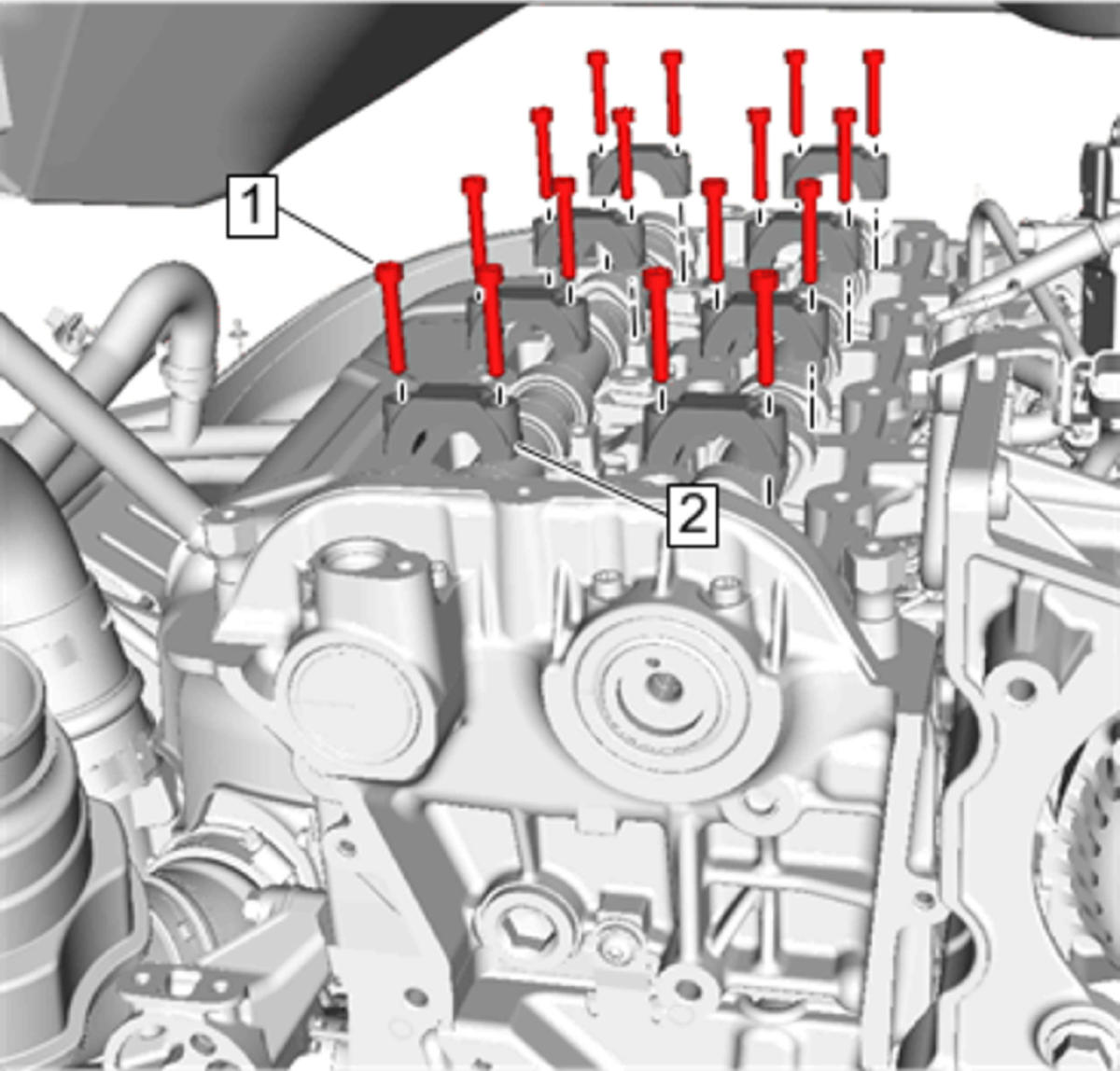

Camshaft Bearing Cap Bolt(1) - Remove[16x]
- Camshaft Bearing Cap(2) - Remove[8x]

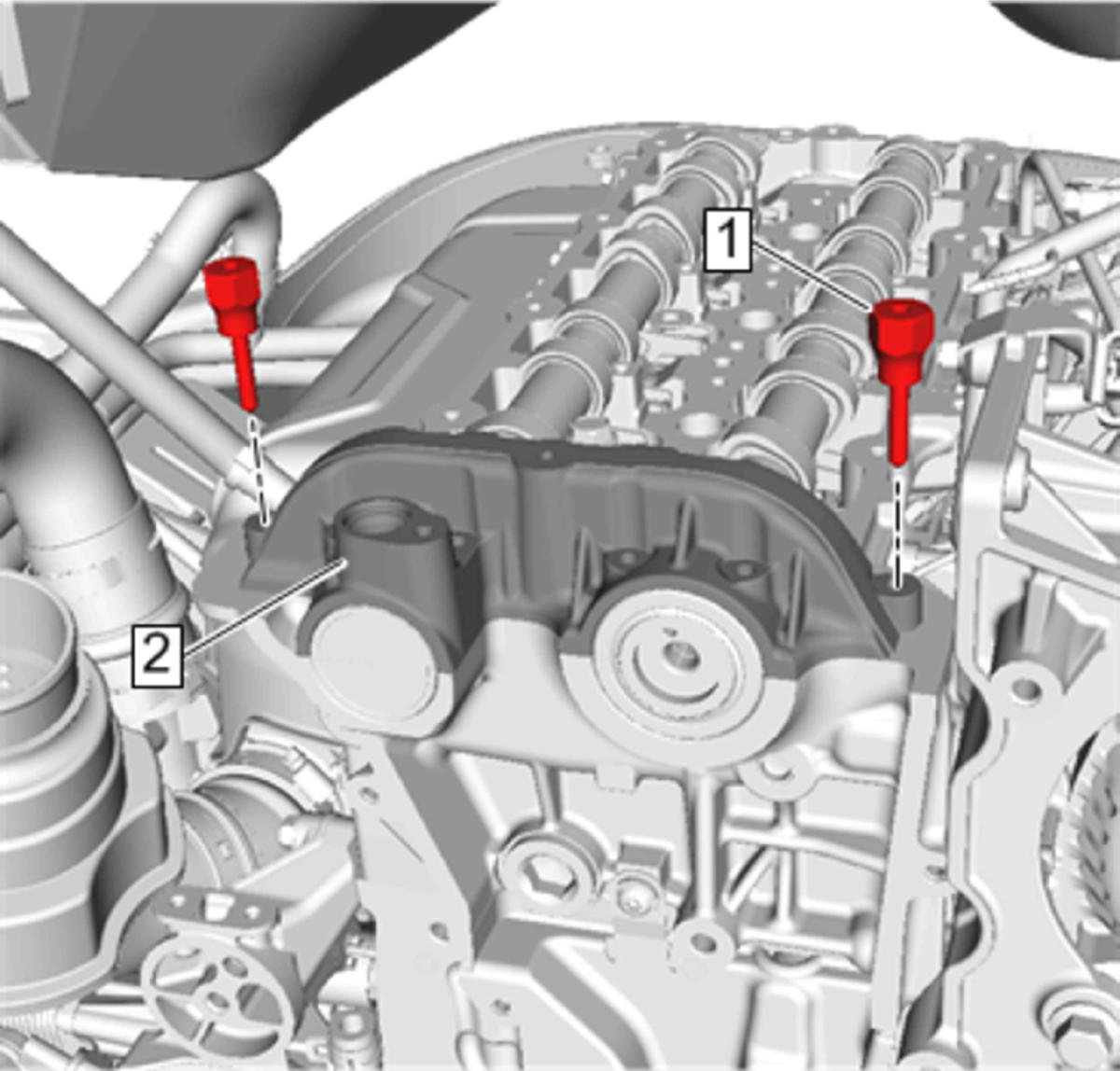

Camshaft Bearing Front Cap Bolt(1) - Remove

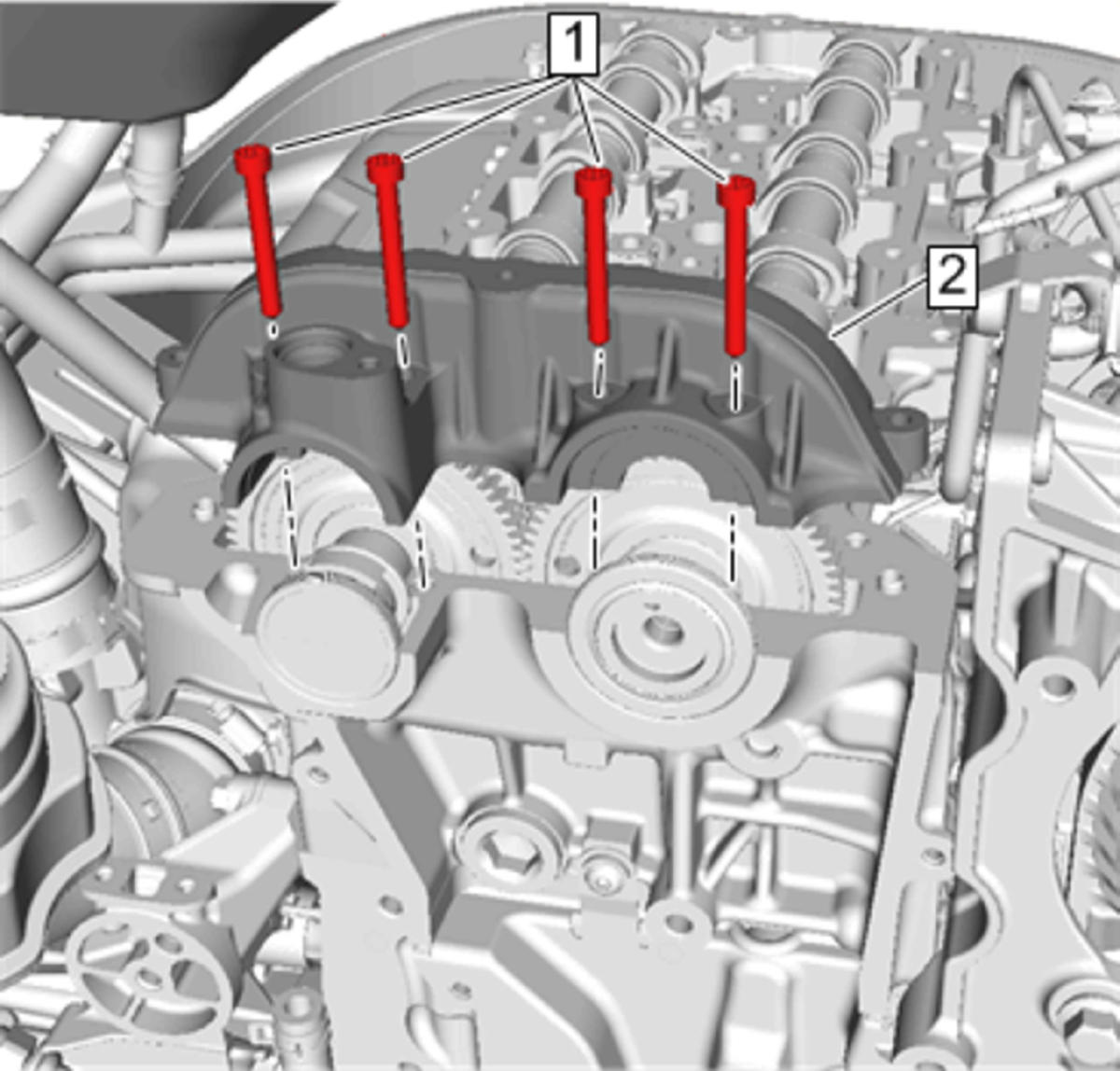

Camshaft Bearing Front Cap Bolt(1) - Remove[4x]
- Camshaft Bearing Front Cap(2) - Remove

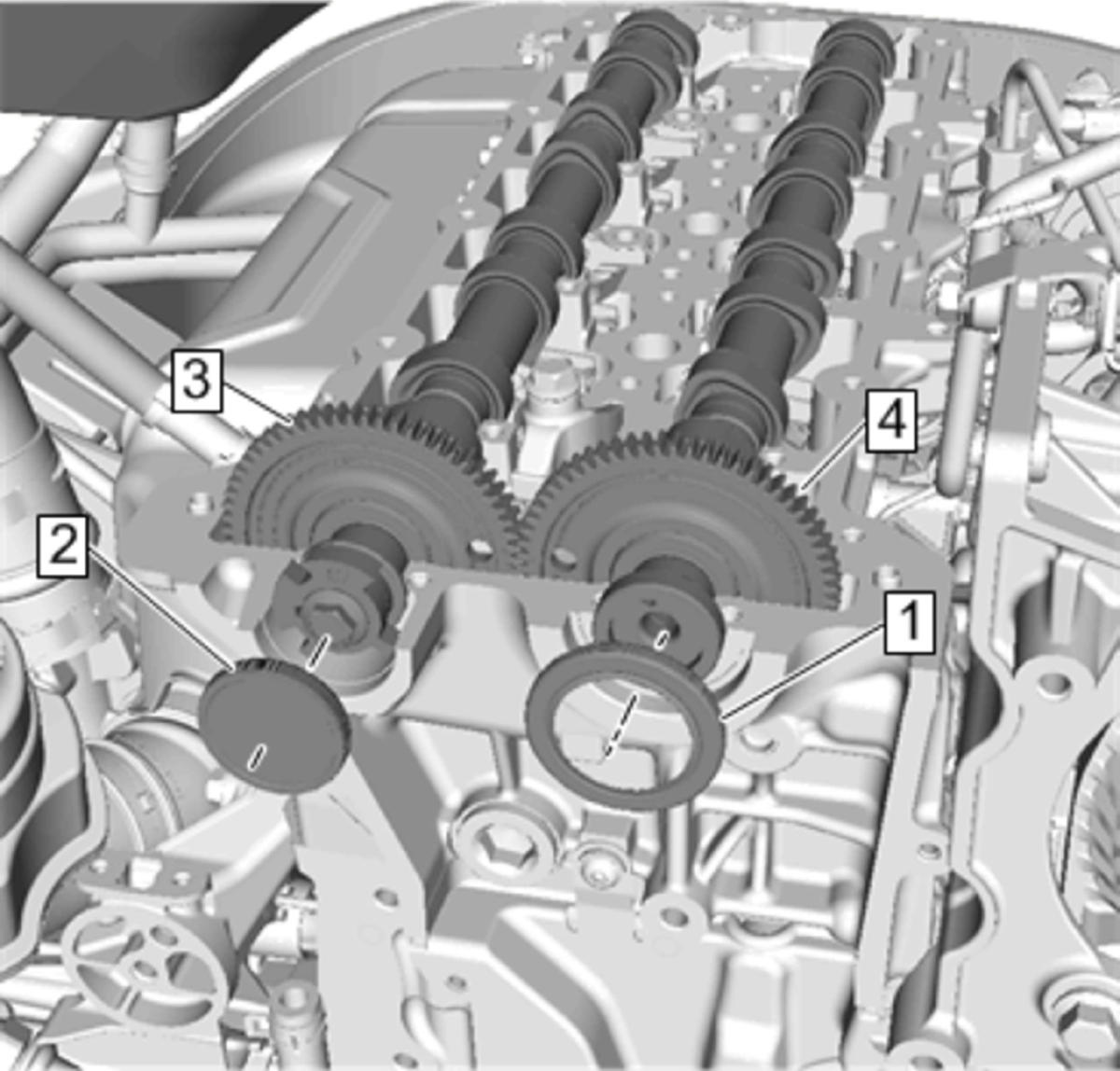

Remove the camshaft exhaust cap (2) and camshaft intake seal (1).
- Remove the exhaust camshaft (3) and intake camshaft (4).
- Clean and inspect Camshaft Cleaning and Inspection
