Water Pump Inlet Pipe Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

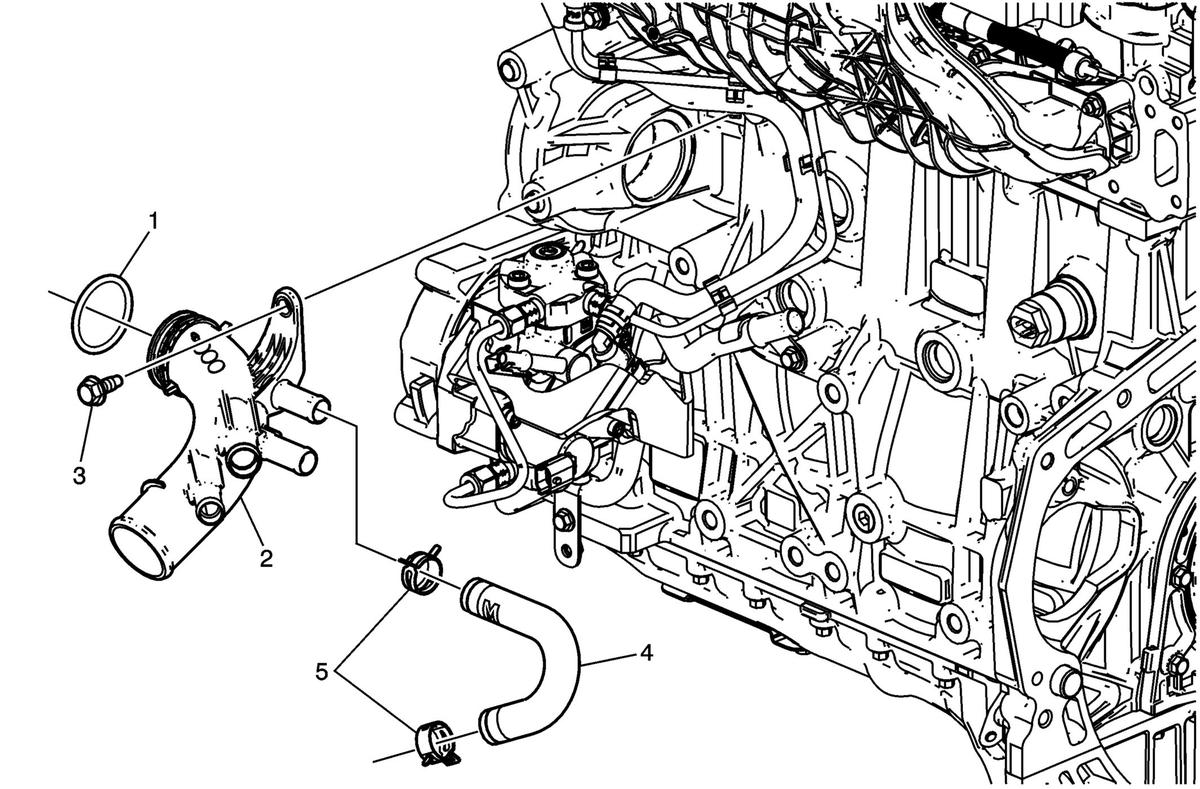

| Callout | Component Name |
|---|---|
| 1 | Water Pump Inlet Pipe Seal
NOTE:
Use a NEW seal. |
| 2 | Water Pump Inlet Pipe |
| 3 | Water Pump Inlet Pipe Bolt
CAUTION:
Refer to Fastener Caution . Tighten 25 N. m (18 lb ft) |
| 4 | Water Pump Inlet Pipe Feed Hose |
| 5 | Water Pump Inlet Pipe Feed Hose Clamp |
