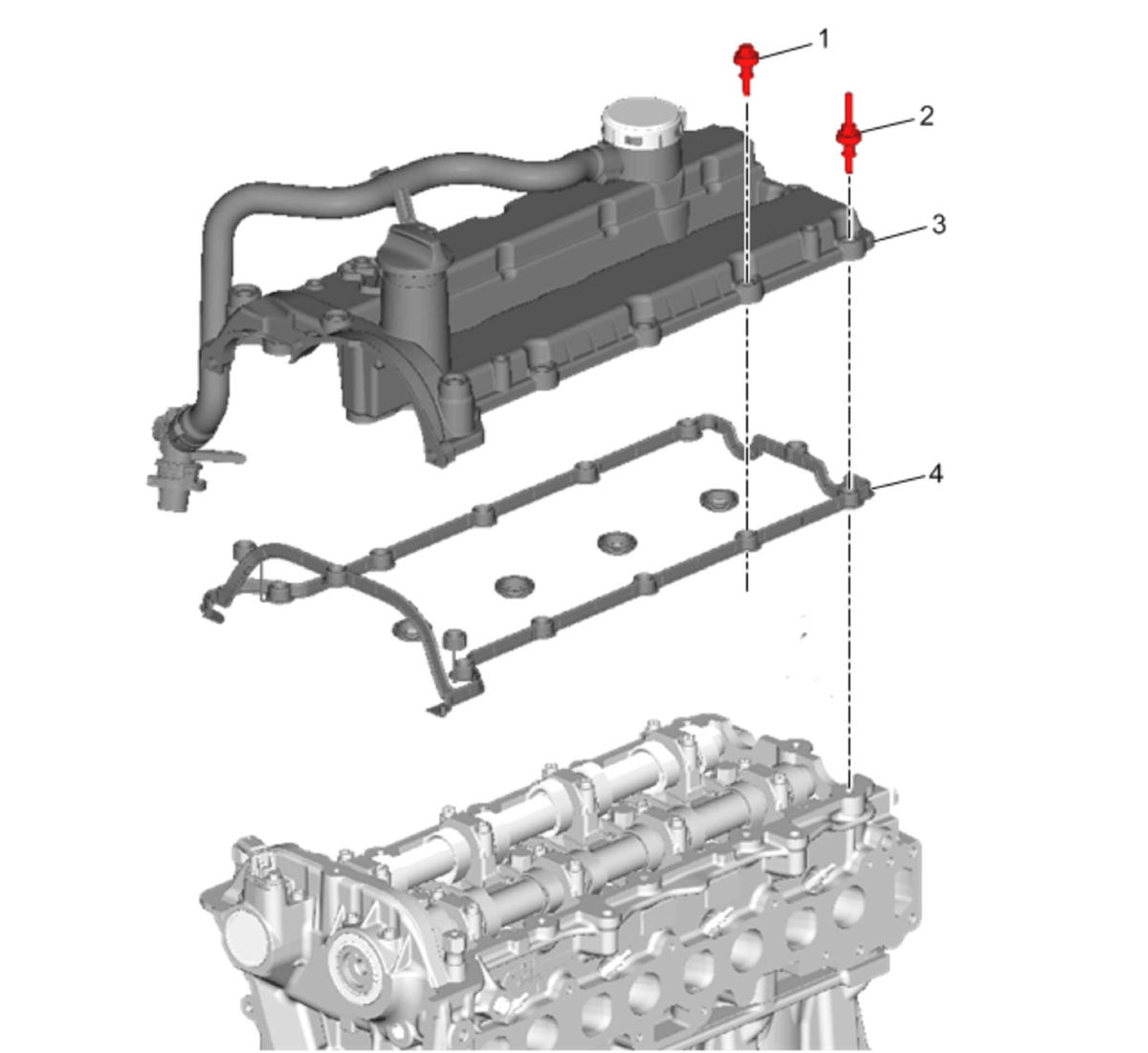

Valve Rocker Arm Cover Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
| 1 |
Valve Rocker Arm Cover Bolt |
| 2 |
Valve Rocker Arm Cover Stud |
| 3 |
Valve Rocker Arm Cover
NOTE:
Do not cut or remove the PCV hose or clamps, it is a tamper proof system.
|
| 4 |
Valve Rocker Arm Cover Gasket
NOTE:
Discard gasket, it is not reusable.
|
