Upper Oil Pan Cleaning and Inspection: Disassemble
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

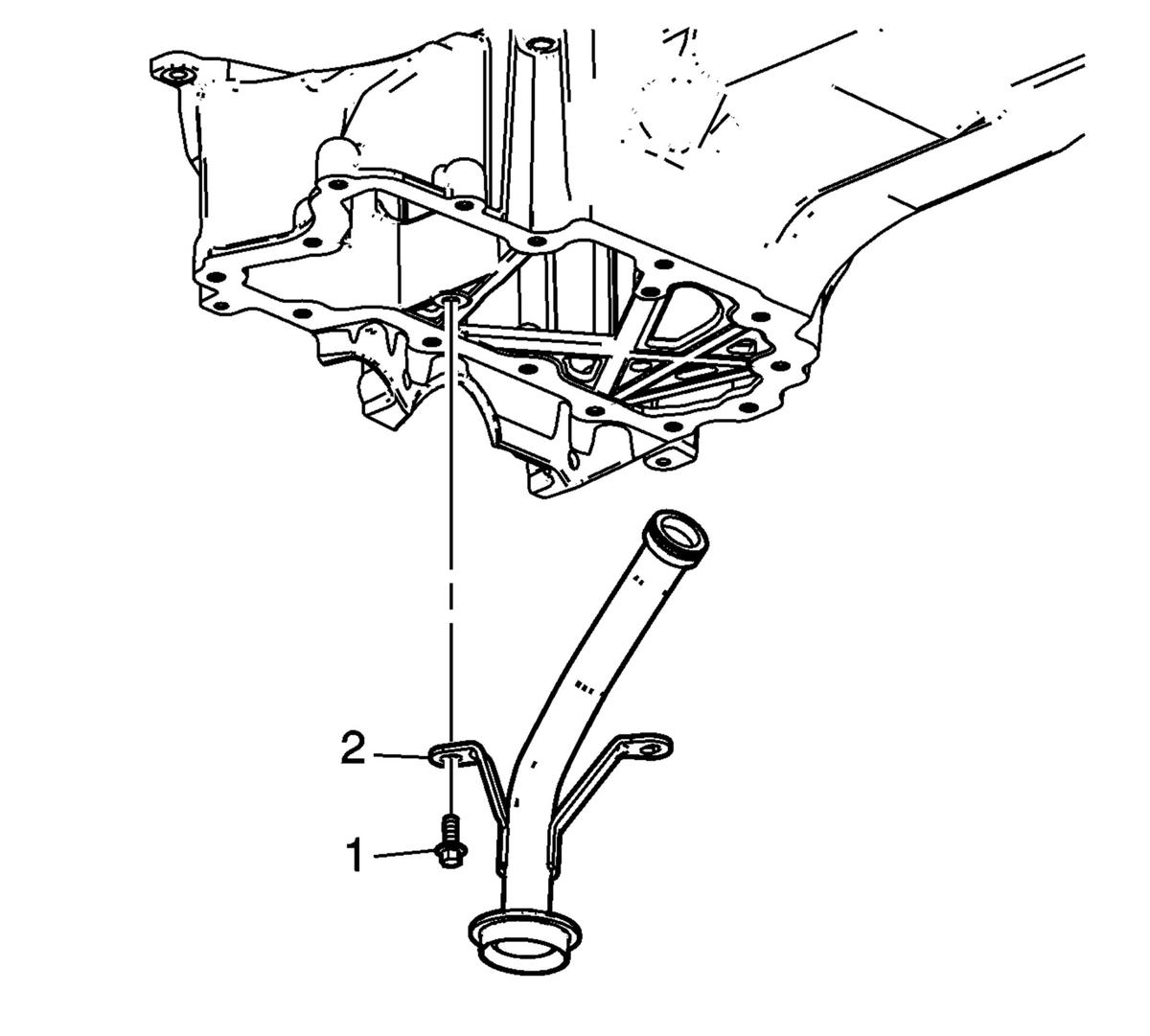

Remove the oil pump suction pipe bolts (1).
- Remove the oil pump suction pipe (2).

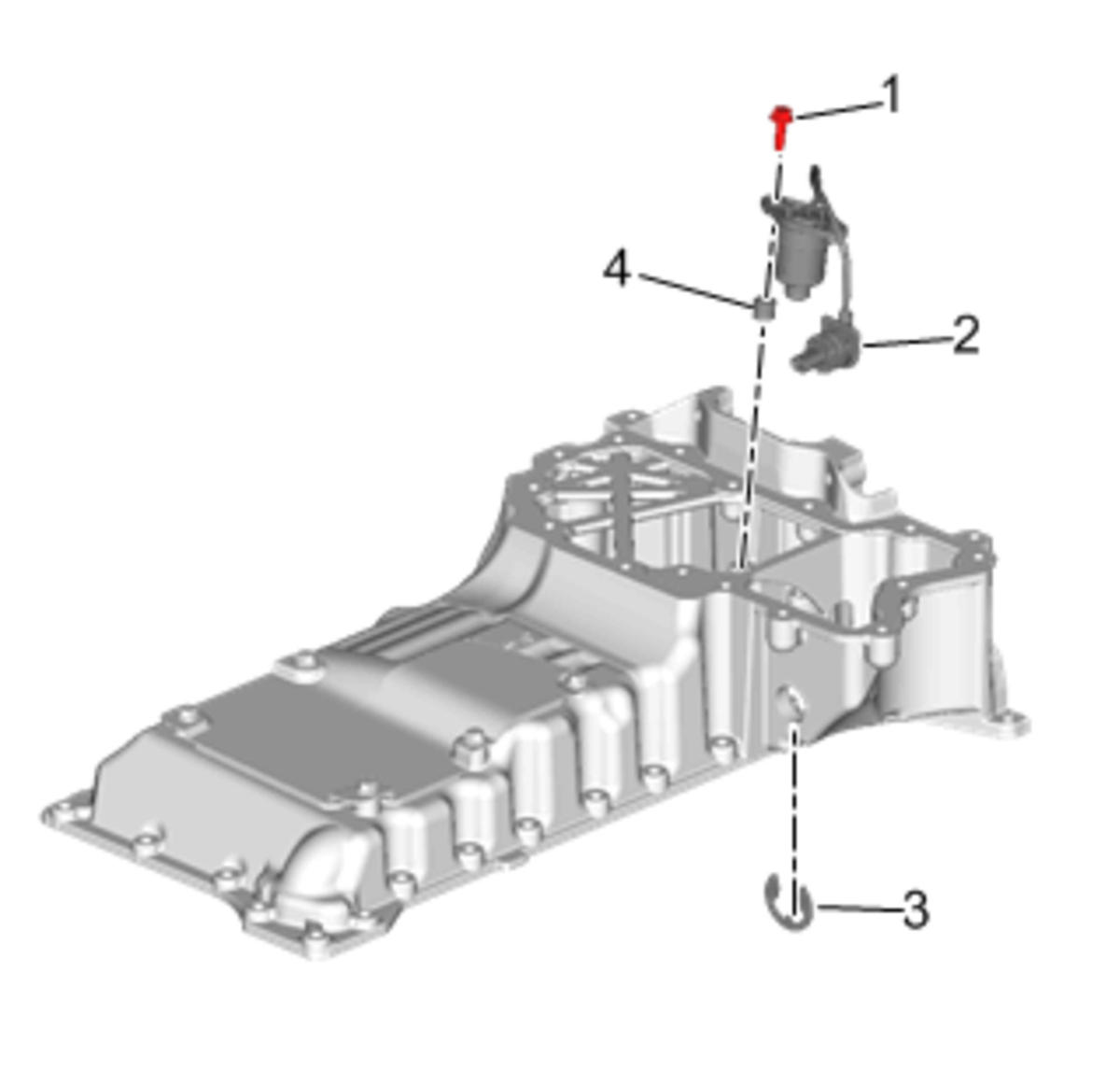

Remove the oil level switch retainer (3).
- Remove the oil level switch bolts[2x] (1).
- Remove the oil level switch (2) and spacers[2x] (4).
Ensure proper use of room temperature vulcanizing (RTV) sealant. Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant

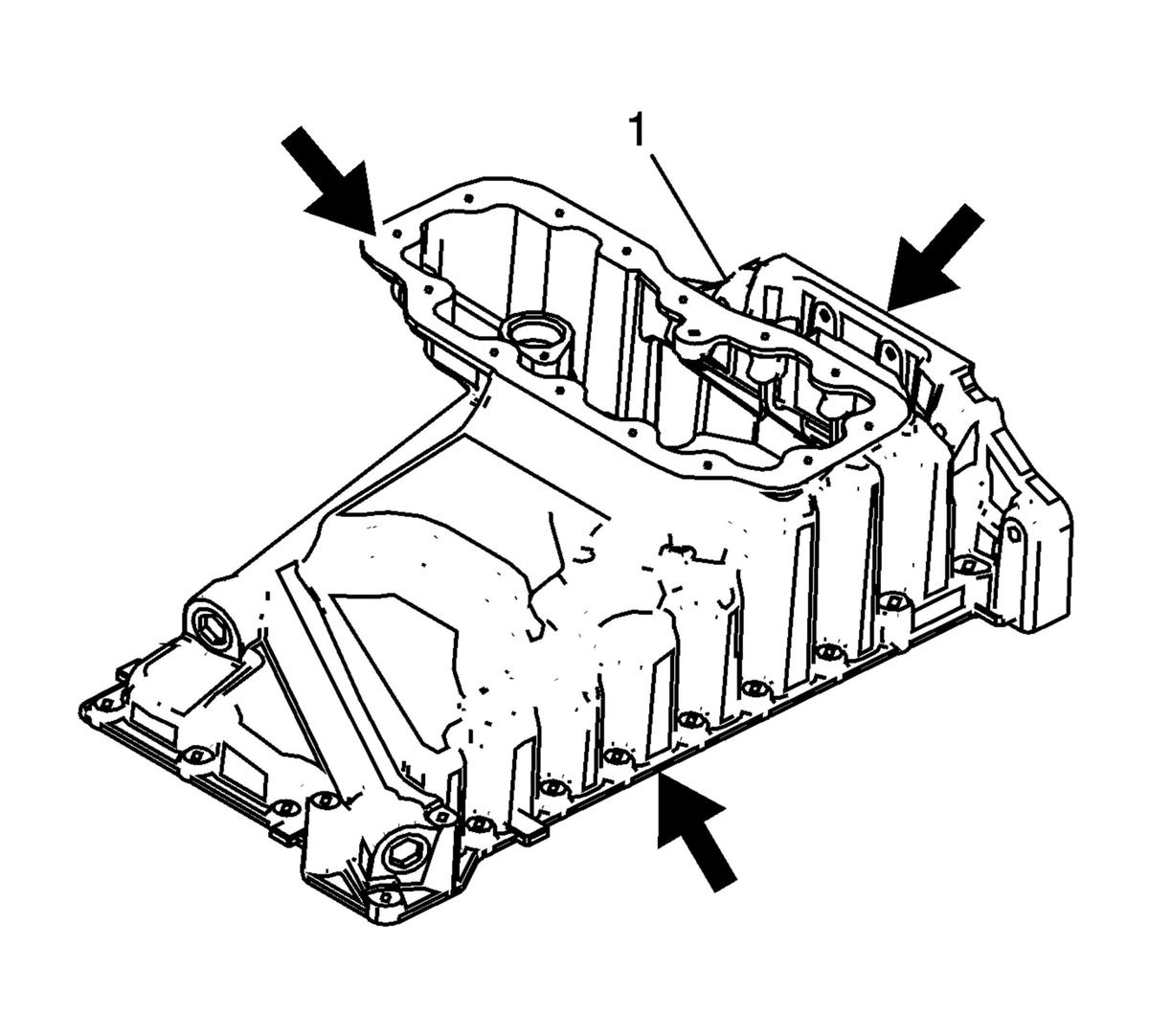

- Clean the sealing material from the gasket mating surfaces on the upper oil pan (1).
