Piston, Connecting Rod, and Bearing Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
EN-50034 Connecting Rod Guides
Rotate the crankshaft to a position where the connecting rod bolts are the most accessible.
- Mark the connecting rod and cap with the cylinder position. Also mark their orientation. This will ensure the caps and connecting rods are re-assembled properly.
- Remove any ridge at the top of the cylinder bore to avoid damage to the piston ring lands.

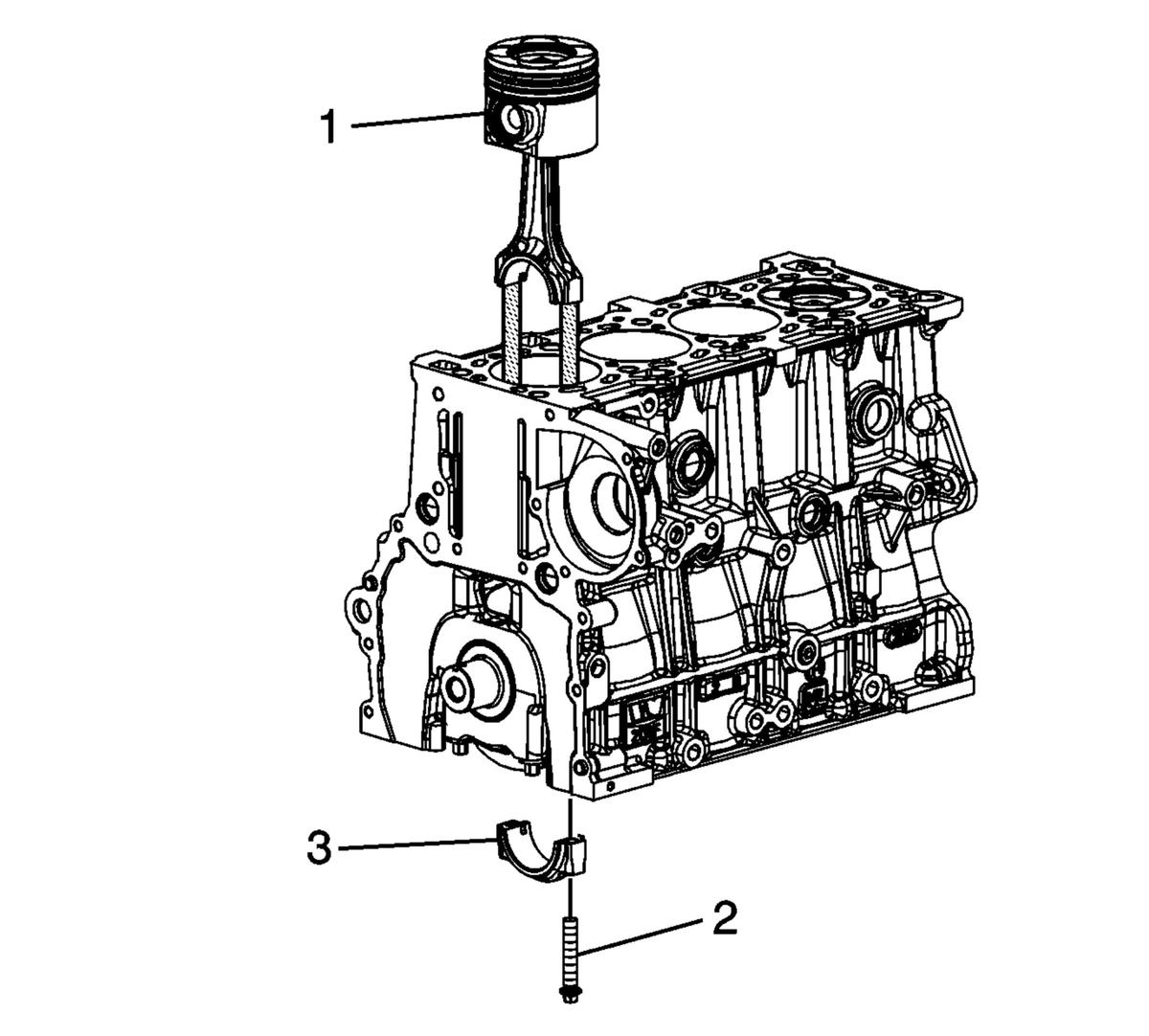

- Remove the connecting rod bolts (2).
- Remove the connecting rod cap (3).
- Install EN-50034 guides on the connecting rod bolts before removing the piston and connecting rod assembly.
- Remove the piston and connecting rod assembly (1).
