Oil Pan Baffle Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

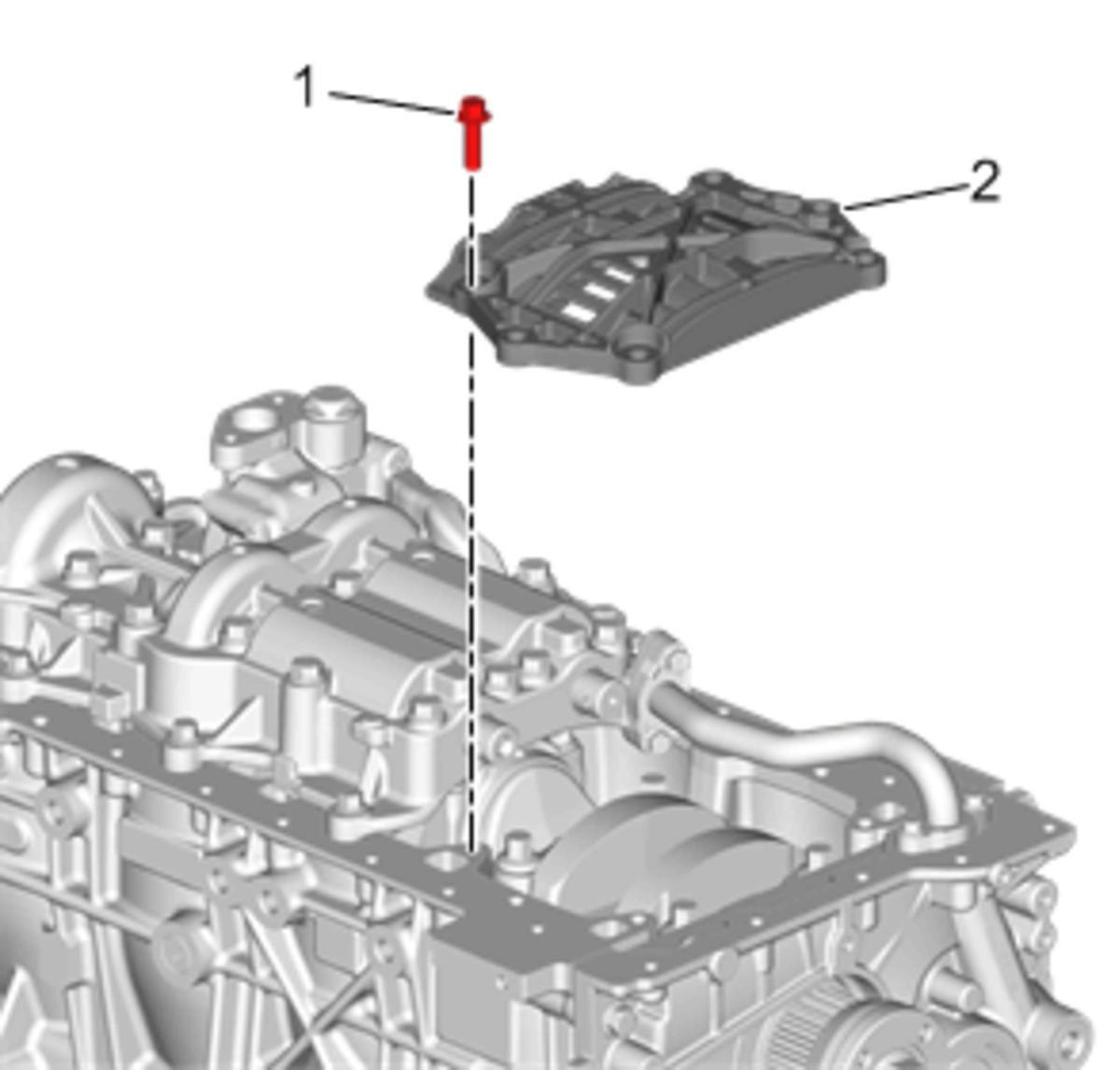

Install the oil pan baffle (2).
- Install the oil pan baffle bolts (1) and hand tighten.
- CAUTION:
Refer to Fastener Caution .

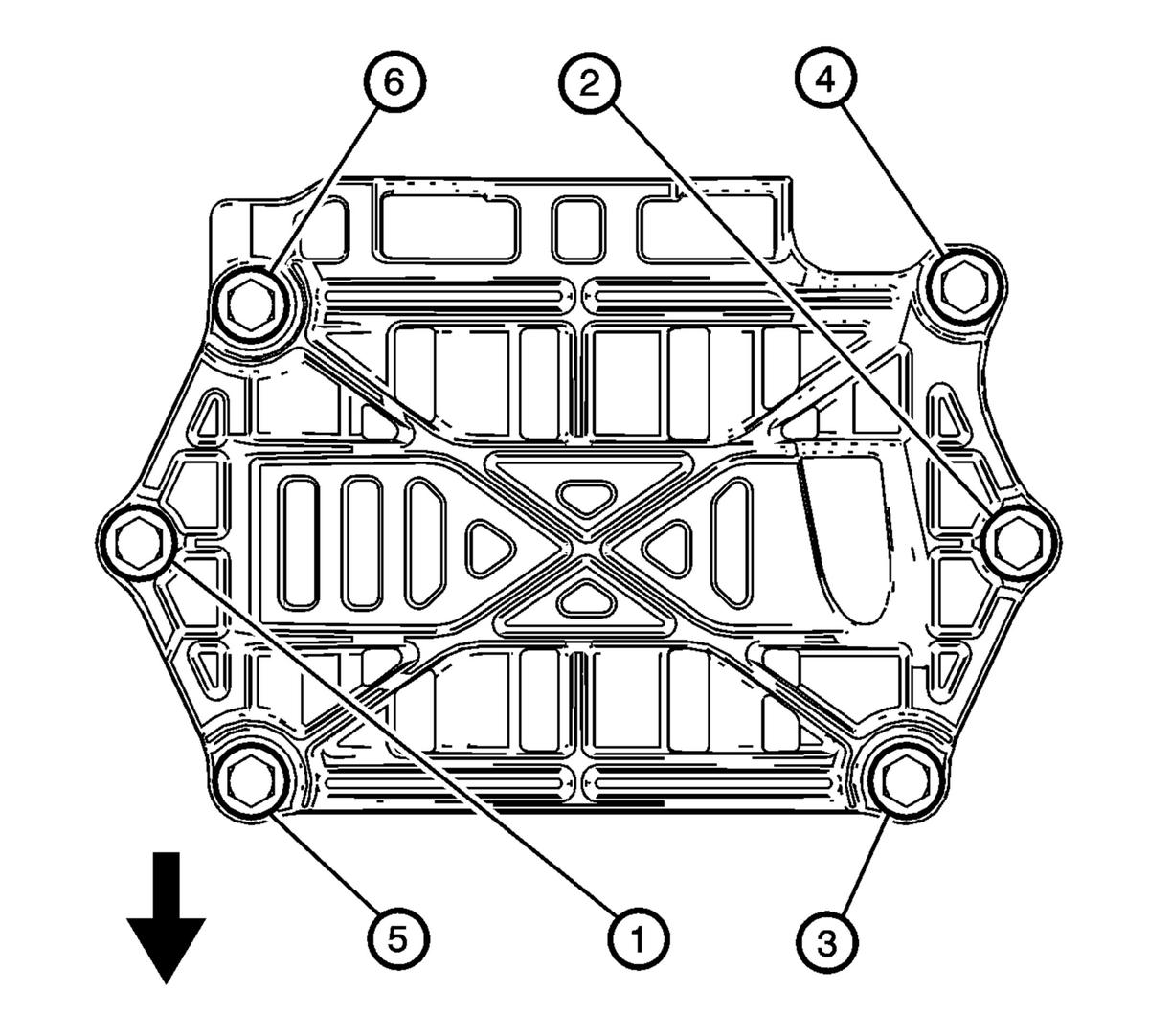

Tighten the bolts in sequence to 32 N. m (24 lb ft).
