Intake Manifold Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

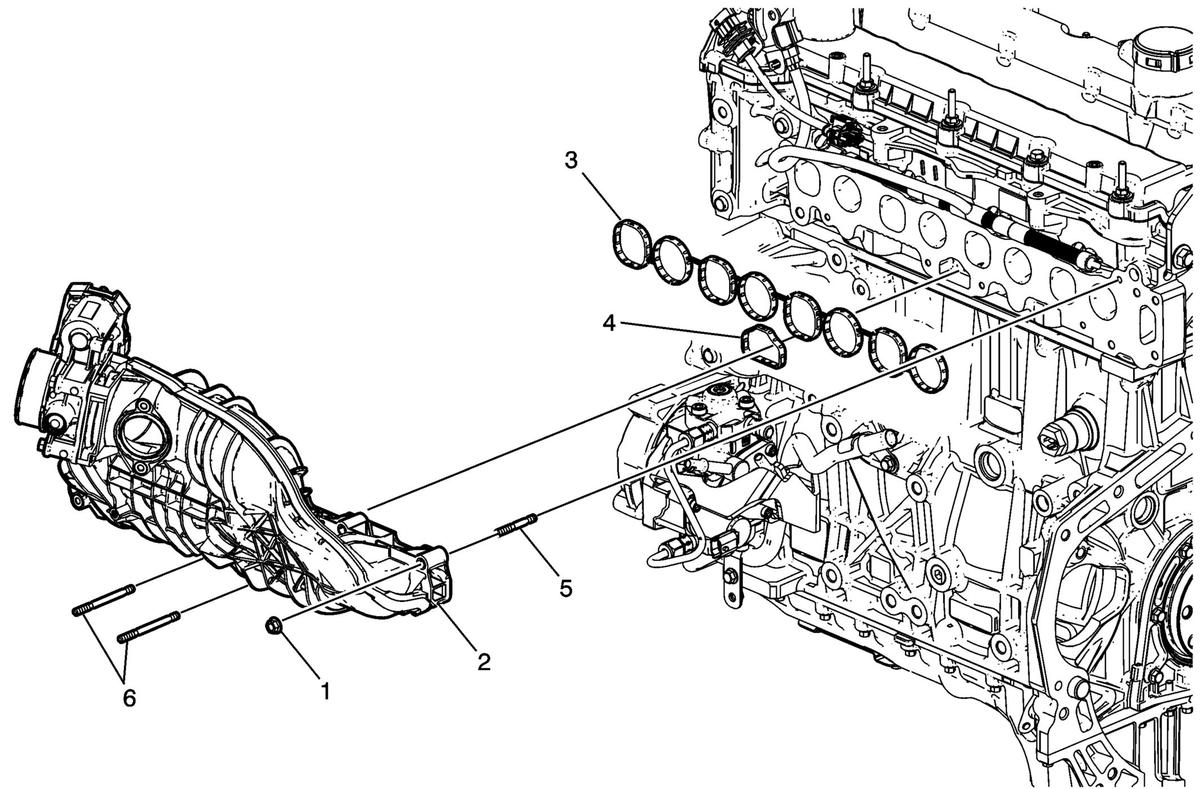

| Callout |
Component Name |
| 1 |
Intake Manifold Nut |
| 2 |
Intake Manifold |
| 3 |
Intake Manifold Gasket
NOTE:
Discard gasket, it is not reusable.
|
| 4 |
Intake Manifold Gasket
NOTE:
Discard gasket, it is not reusable.
|
| 5 |
Intake Manifold Stud |
| 6 |
Intake Manifold Stud |
