Intake Manifold Disassemble

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

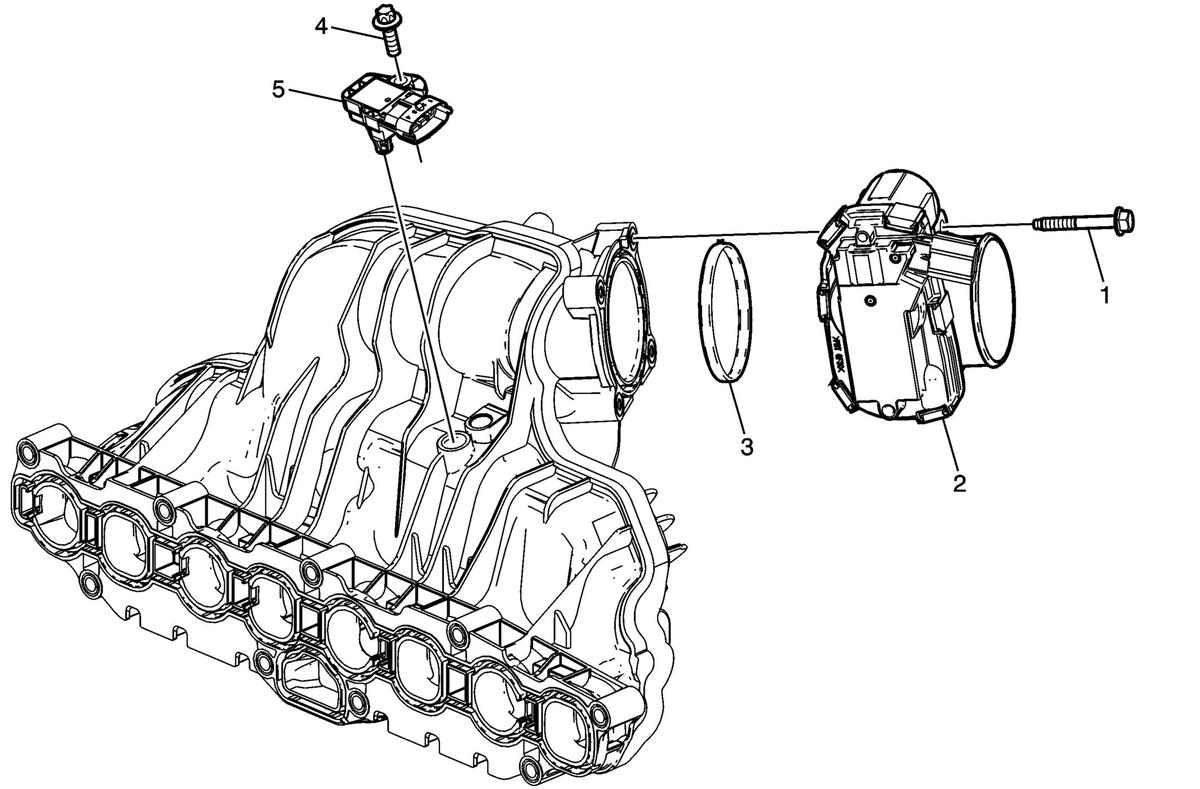

GM3217303Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Throttle Body Bolt
2 Throttle Body
3 Throttle Body Gasket
NOTE:

Discard gasket, it is not reusable.
4 Manifold Absolute Pressure Sensor Bolt
5 Manifold Absolute Pressure Sensor
