Intake Manifold Assemble
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

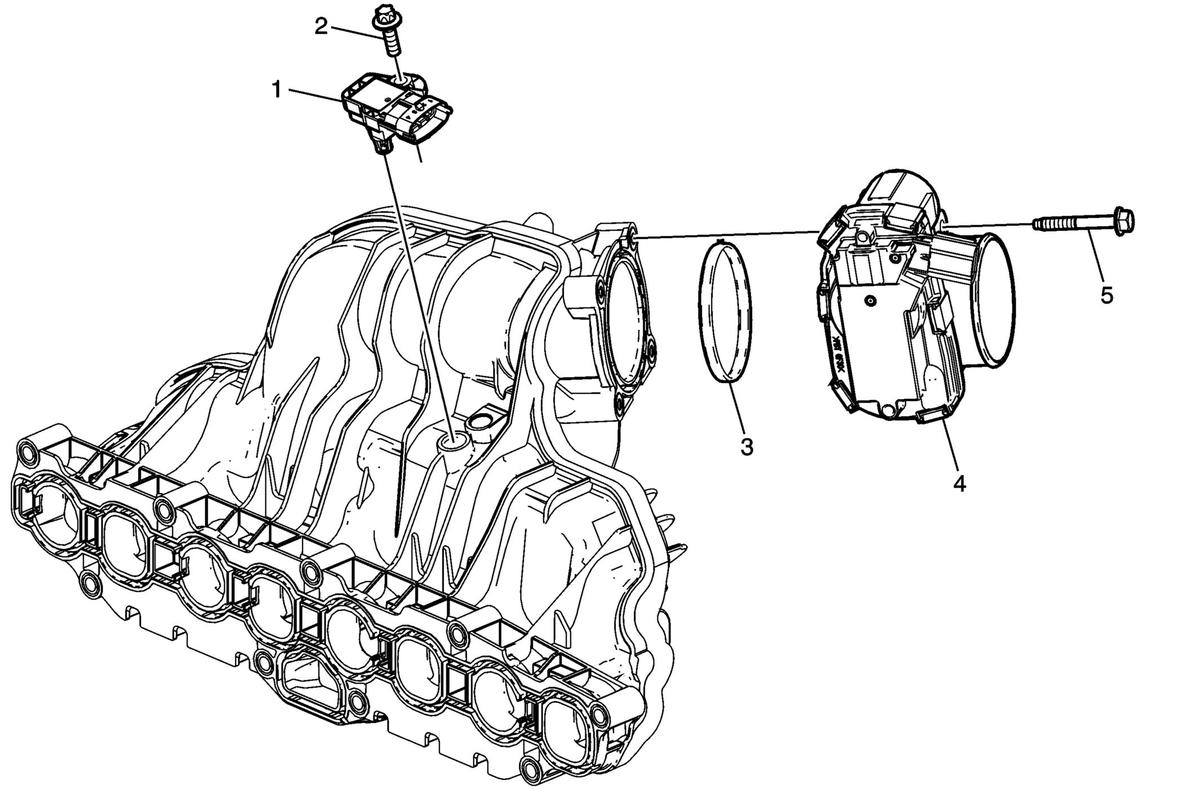

| Callout | Component Name |
|---|---|
| 1 | MAP Sensor Manifold Absolute Pressure Sensor |
| 2 | Manifold Absolute Pressure Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N. m (80 lb in) |
| 3 | Throttle Body Gasket
NOTE:
Install a NEW gasket. It is not reusable. |
| 4 | Throttle Body |
| 5 | Throttle Body Bolt Tighten 11 N. m (97 lb in) |
