Glow Plug Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

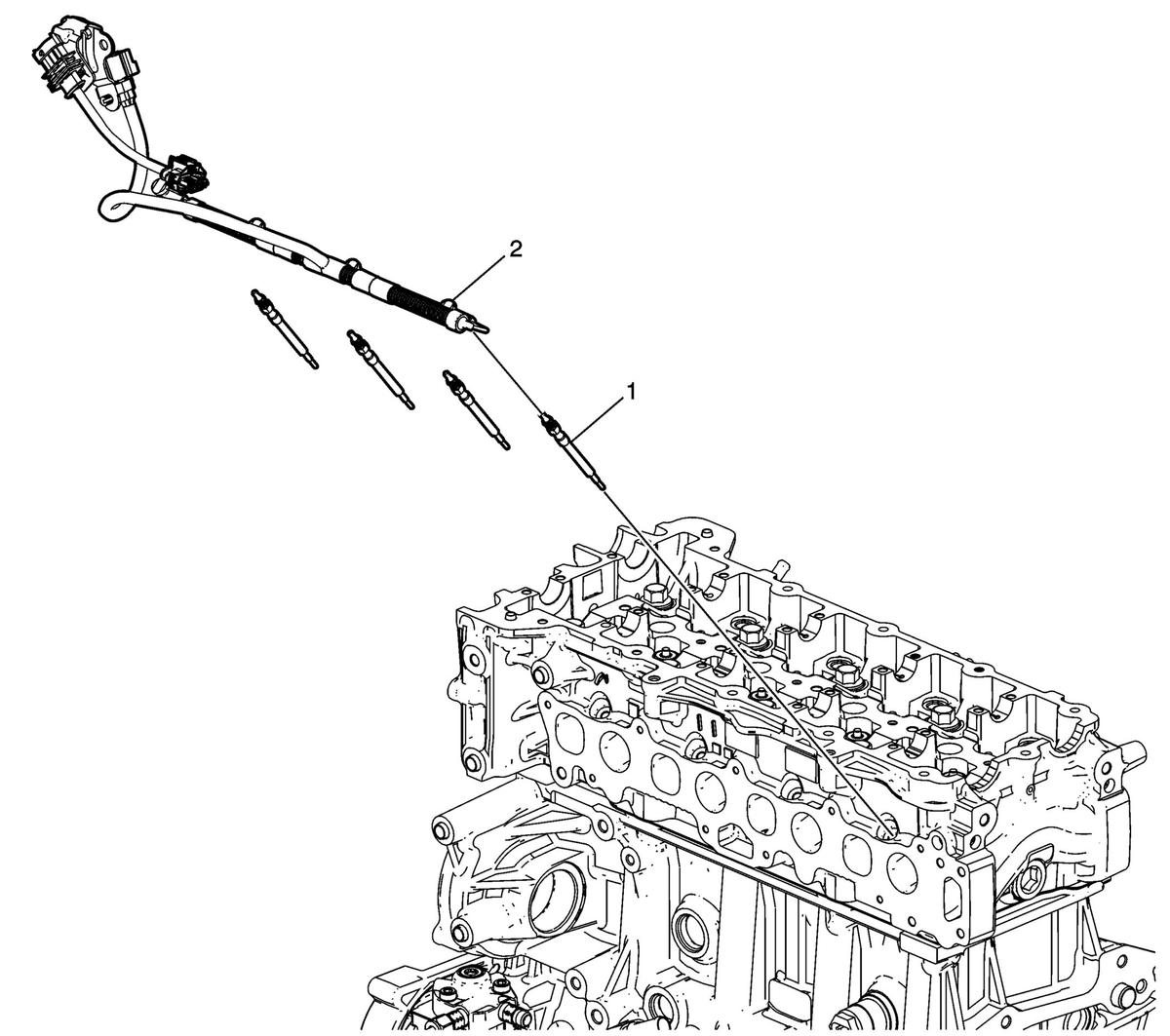

| Callout | Component Name |
|---|---|
| 1 | Glow Plugs
CAUTION:
Refer to Fastener Caution .
NOTE:
To aid in hand starting glow plugs into their bores, a hose or tube with an inner diameter of 4 mm (0. 2 in) can be used as an extension when installed on the end of the glow plug. Tighten 14 N. m (124 lb in) |
| 2 | Diesel Glow Plug Wiring Harness |
