Engine Oil Cooler Inlet Pipe Installation

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

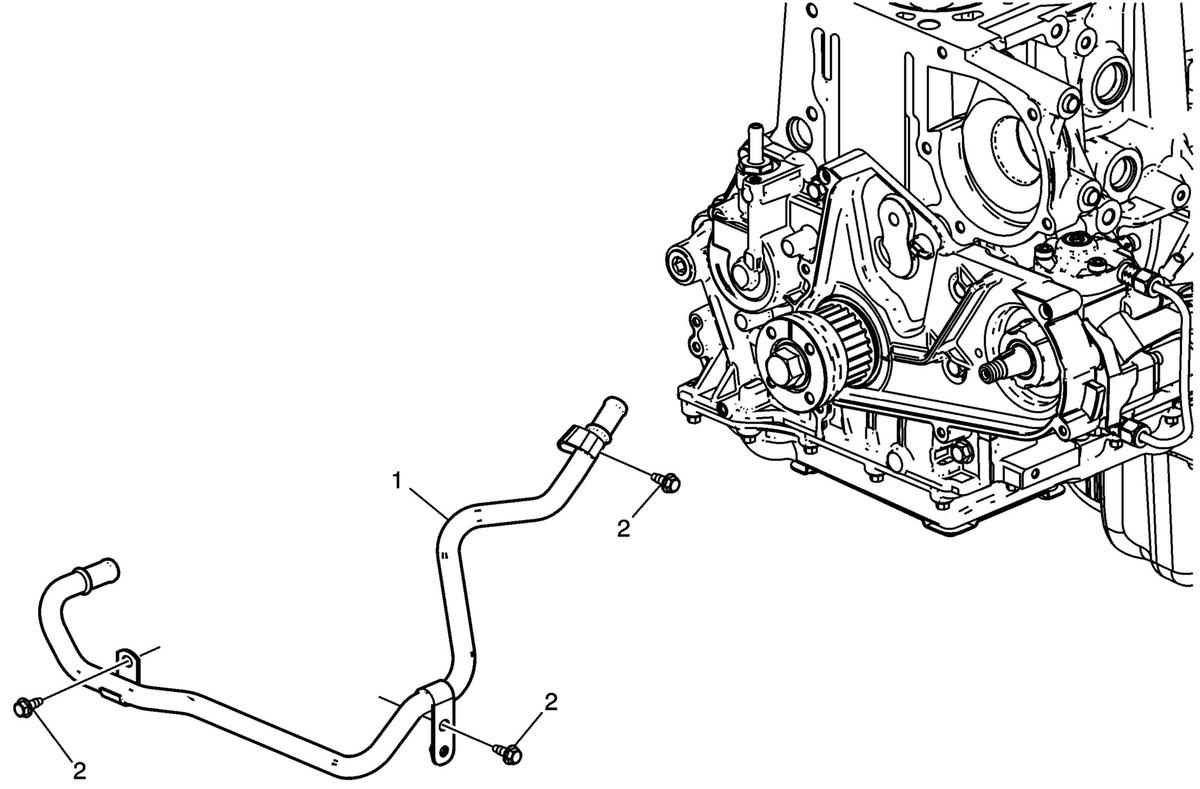

GM4087248Courtesy of GENERAL MOTORS COMPANY
Engine Oil Cooler Inlet Pipe Installation

Callout Component Name
1 Engine Oil Cooler Inlet Pipe
2 Engine Oil Cooler Inlet Pipe Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
15 N. m (11 lb ft)
