Fuel Pump Cleaning and Inspection

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

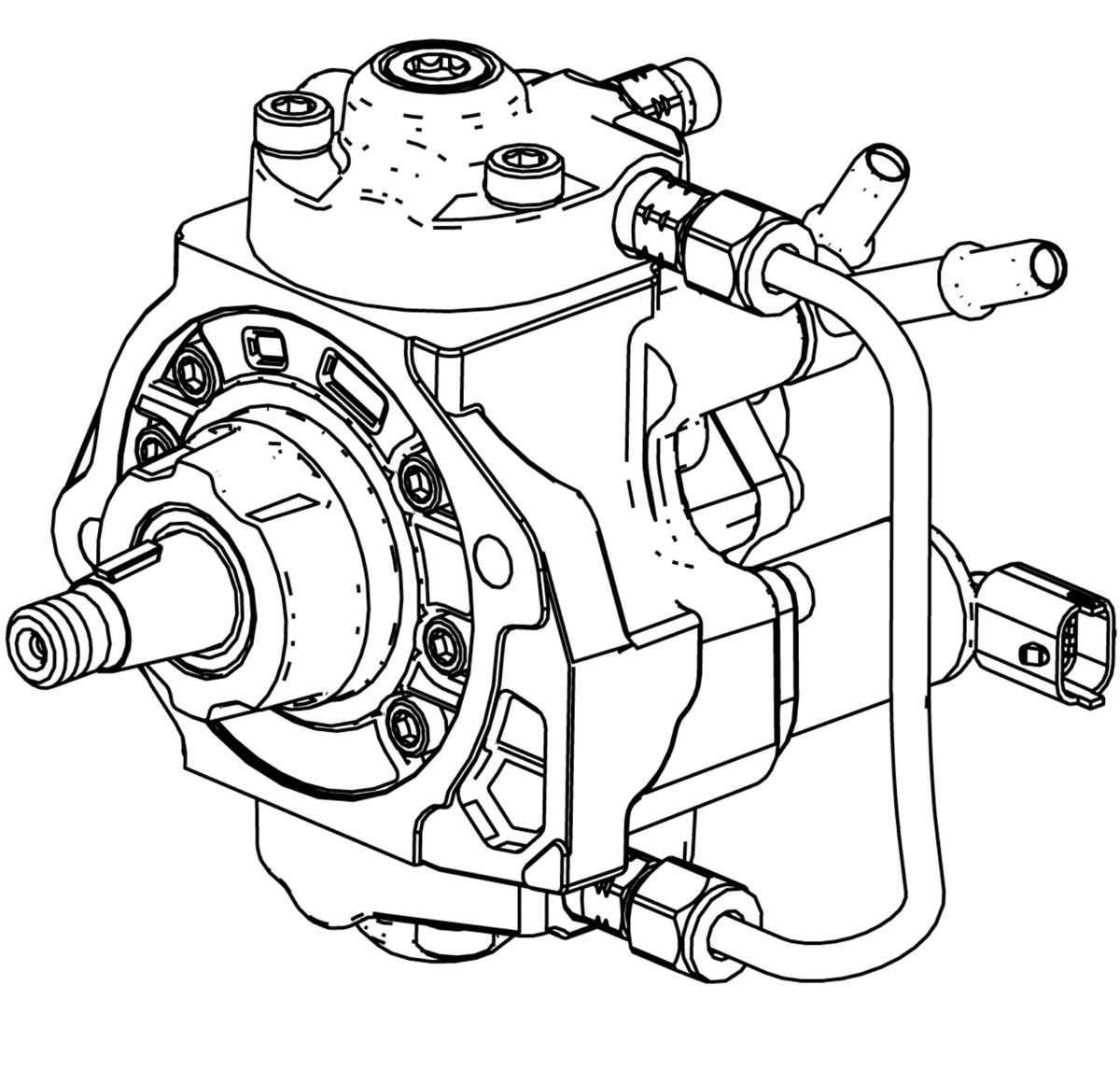

  1. GM4376454Courtesy of GENERAL MOTORS COMPANY

    Clean all dirt and debris from the fuel pump surfaces.

  2. Clean the fuel injection pump mating surfaces.
  3. Inspect for any sign of leaking around pipe connections.
  4. Replace component if any damage or leaks are found.
