Fuel Injector Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

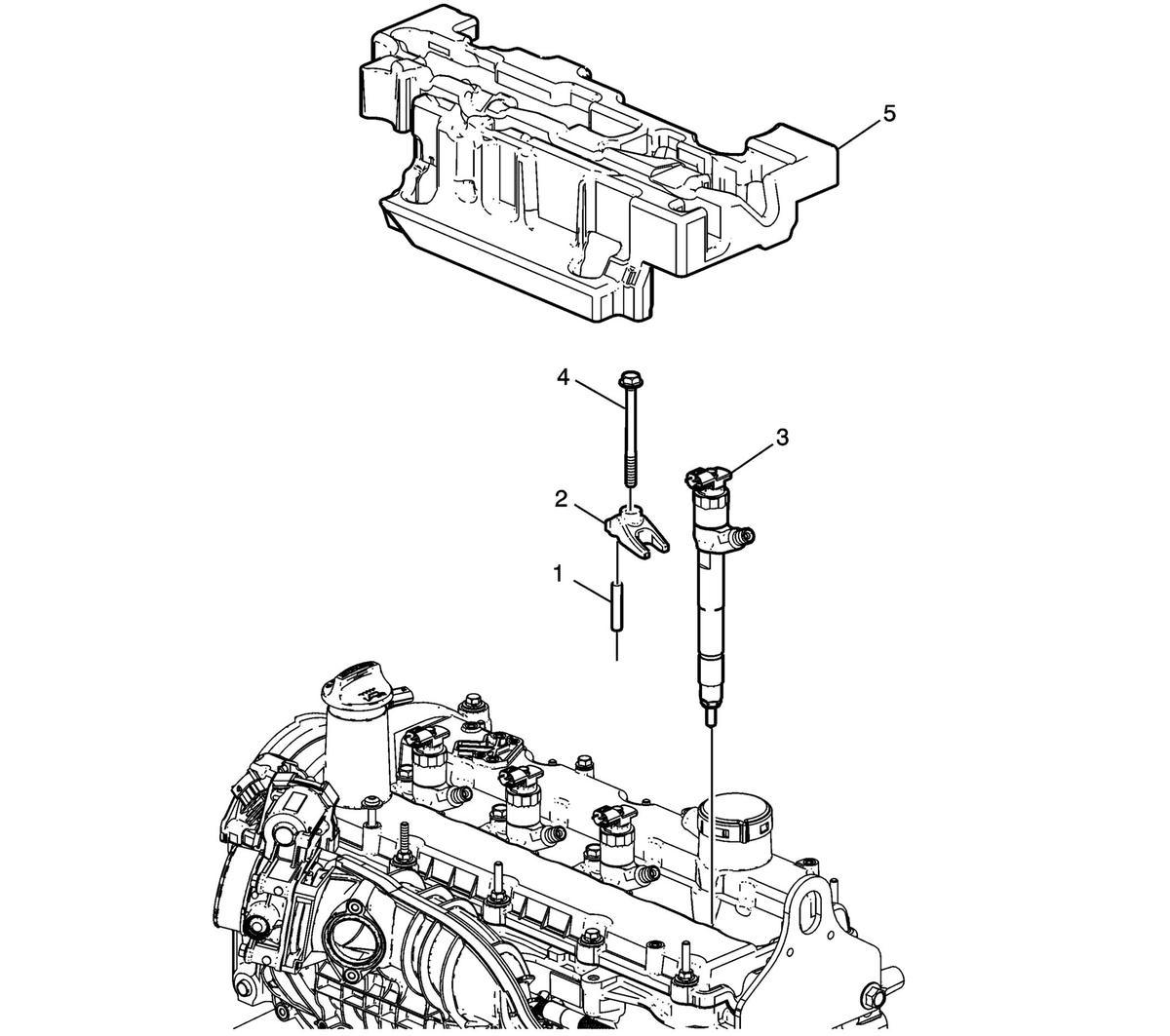

| Callout | Component Name |
|---|---|
| 1 | Fuel Injector Locating Pin
NOTE:
The unique fuel injector flow rates are programmed into the ECM according to cylinder location. Mark the fuel injectors for correct re-installation to the same cylinders. Failure to do so may result in a poor drive-ability condition. |
| 2 | Fuel Injector Hold Down Clamp |
| 3 | Fuel Injector
NOTE:
Install NEW fuel injector combustion seals. |
| 4 | Fuel Injector Bracket Bolt
CAUTION:
Refer to Fastener Caution . Tighten 32 N. m (24 lb ft) |
| 5 | Fuel Injector Deadener |
