Fuel Injector Cleaning and Inspection
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
The fuel injector must be cleaned with the proper cleaning equipment. DO NOT use abrasive cleaning methods, such as a metallic brush, to remove deposits. Cleaning an injector with improper tools will damage the fuel injector.
NOTE:Remove the fuel injector combustion seals and discard.

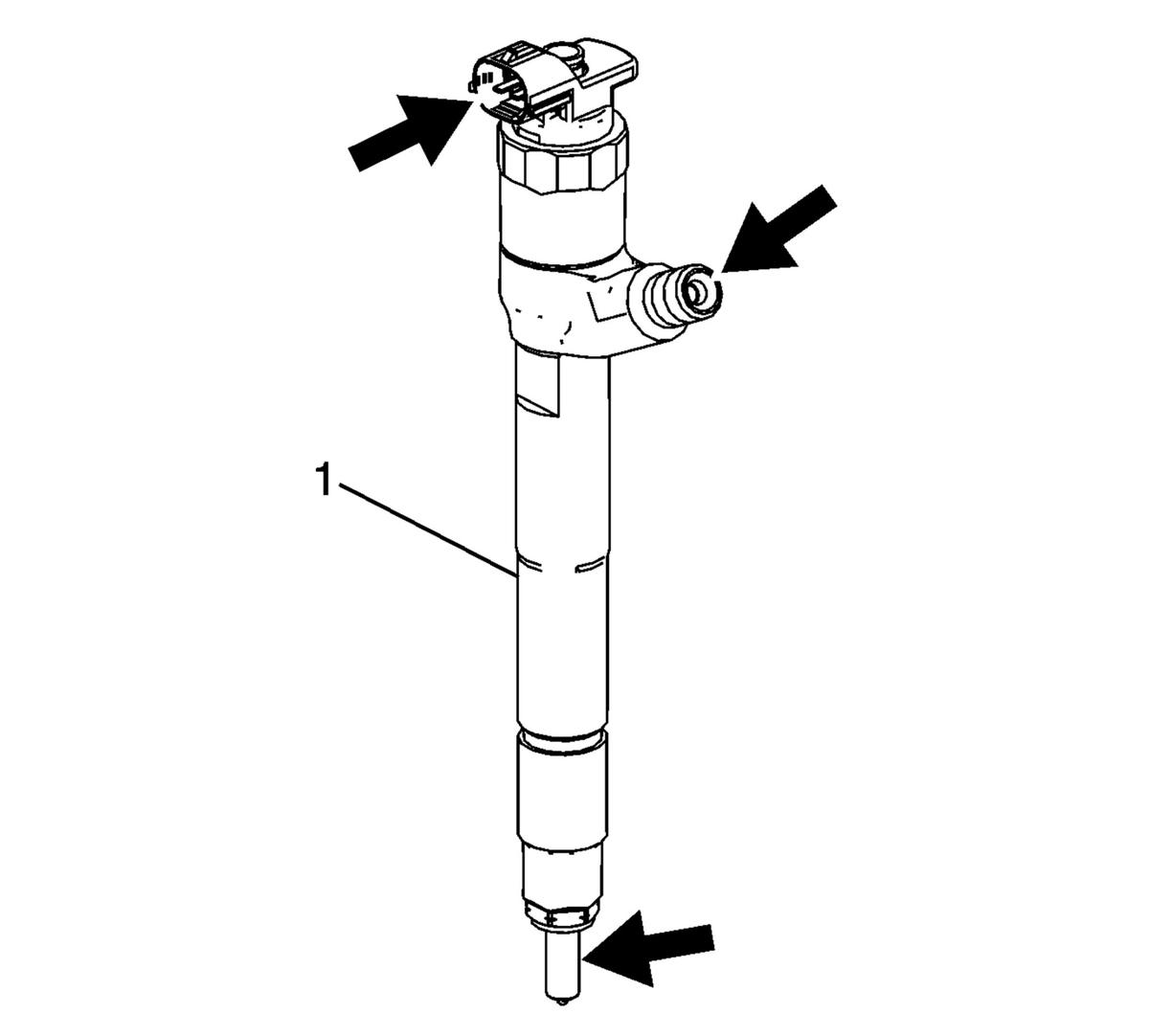

Use a soft bristle non-metallic brush and top engine cleaner, GM P/N 1052626 or equivalent, to remove any deposits from the fuel injector (1) nozzle tip and the copper washer sealing area before reinstallation.
- Inspect the fuel injector nozzle tip for cracks, dents, or other damage.
- Inspect the nozzle tip for any signs of discoloration
