Vacuum Pump Pipe and Hose Removal

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

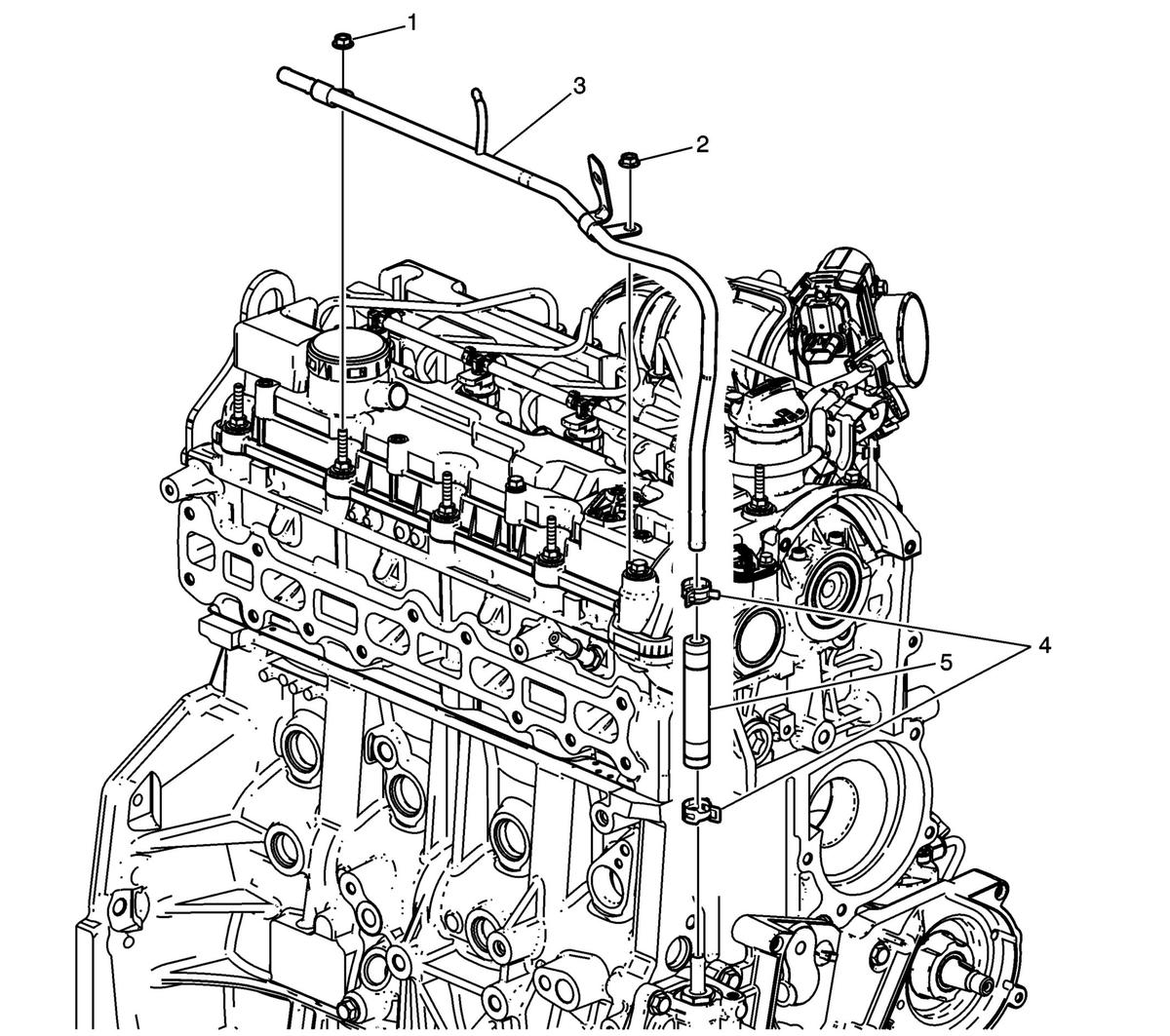

GM4074277Courtesy of GENERAL MOTORS COMPANY
Vacuum Pump Pipe and Hose Removal

Callout Component Name
1 Vacuum Pipe Nut
2 Vacuum Pipe Nut
3 Vacuum Pump Pipe
4 Vacuum Pump Hose Clip
5 Vacuum Pump Hose
