Fuel Rail and Lines Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Fuel Rail and Lines Removal

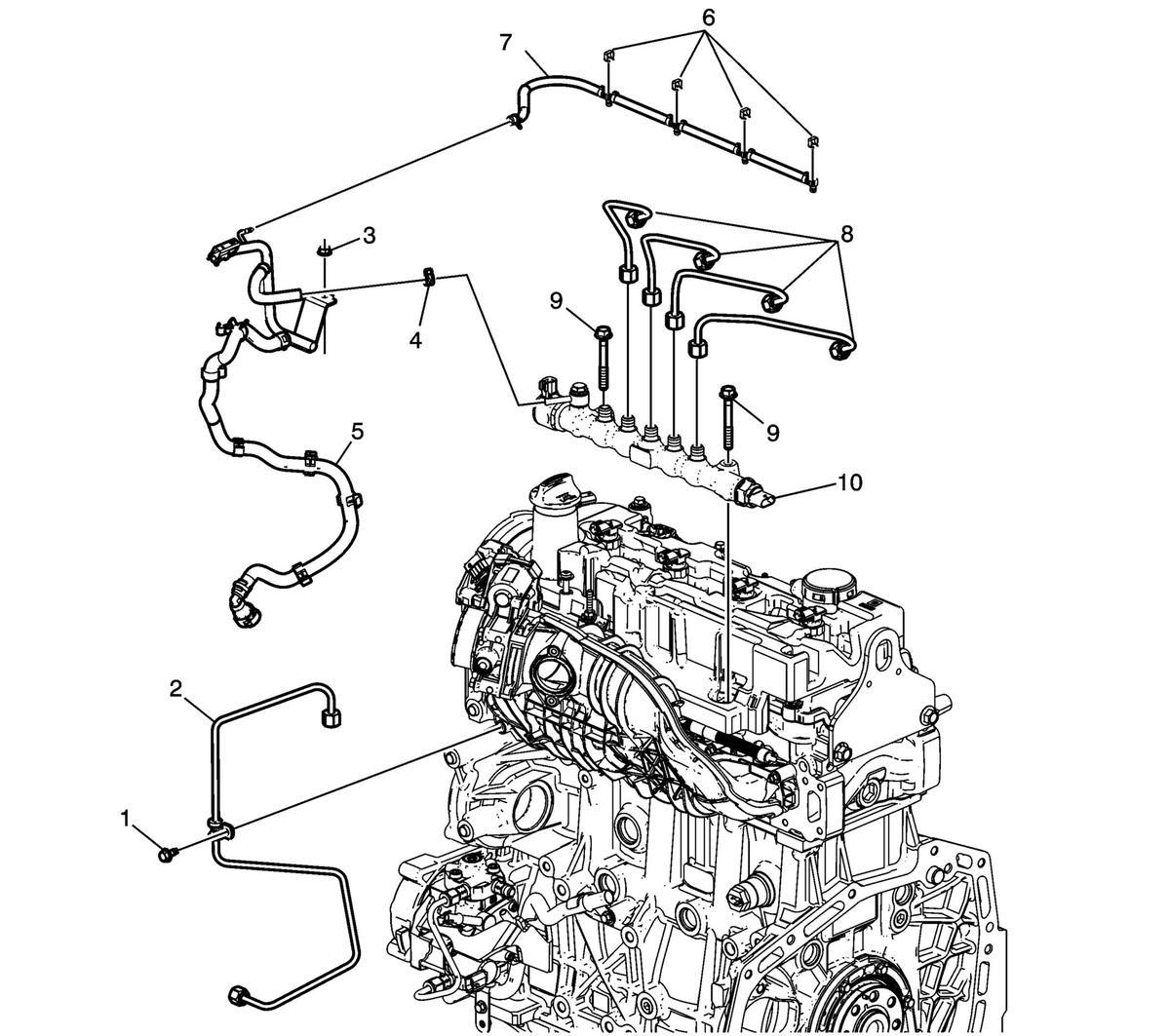

| Callout | Component Name |
|---|---|
| 1 | Fuel Feed Pipe Bolt |
| 2 | Fuel Feed Pipe
NOTE:
Discard after removal, High Pressure Pipes are not reusable. |
| 3 | Engine Wiring Harness Bracket Nut |
| 4 | Diesel Fuel Separator Hose Clamp |
| 5 | Diesel Fuel Separator |
| 6 | Fuel Injection Fuel Return Pipe Clip
NOTE:
Discard the clips, they are not reusable. |
| 7 | Fuel Injection Fuel Return Pipe |
| 8 | Fuel Injector Fuel Feed Pipe
NOTE:
Discard after removal, High Pressure Pipes are not reusable. |
| 9 | Fuel Injection Fuel Feed Pipe Bracket Bolt |
| 10 | Direct Fuel Injection Fuel Rail |
