Vacuum Pump Pipe and Hose Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Vacuum Pump Pipe and Hose Installation

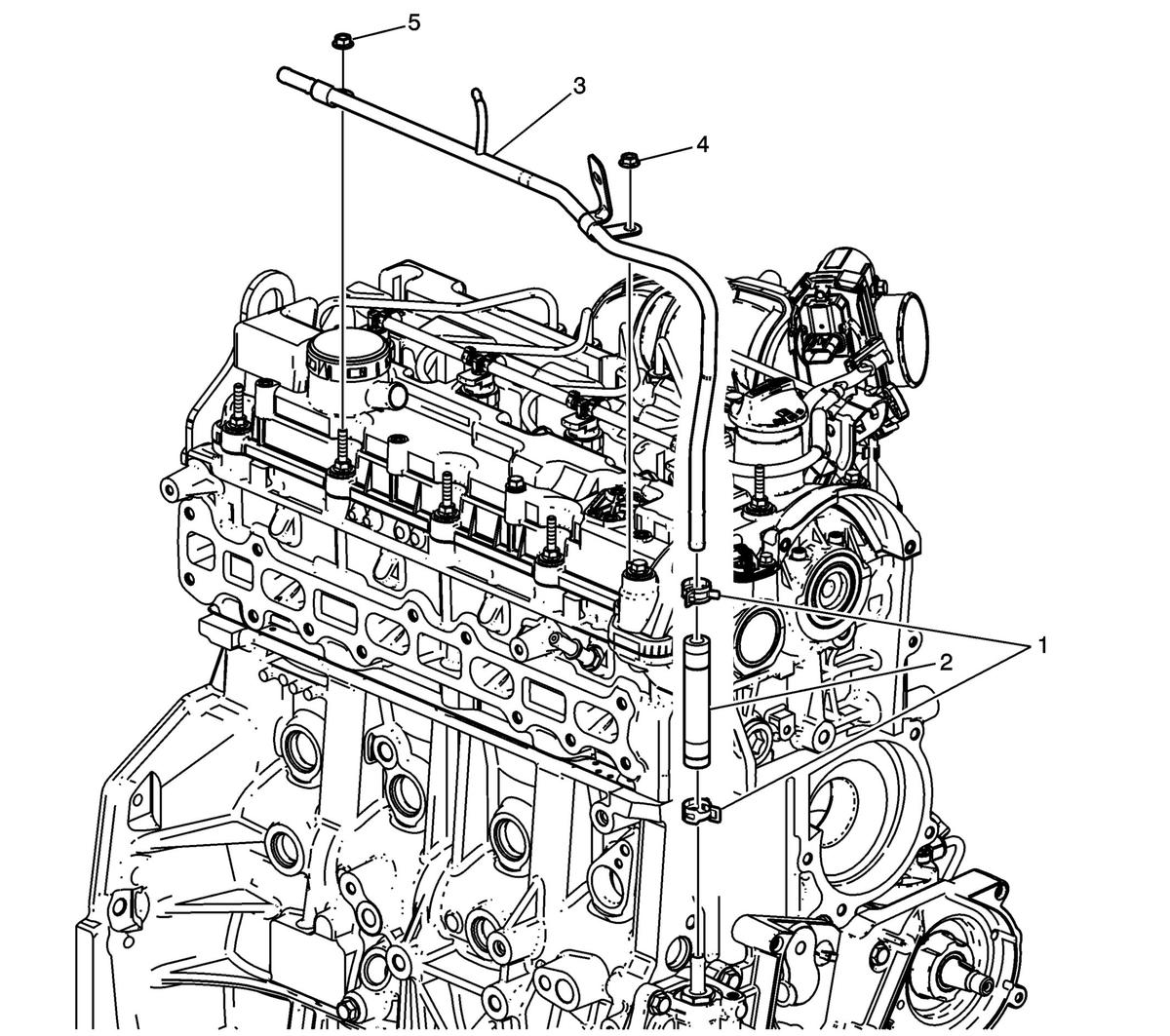

| Callout | Component Name |
|---|---|
| 1 | Vacuum Pump Hose Clip |
| 2 | Vacuum Pump Hose |
| 3 | Vacuum Pump Pipe |
| 4 | Vacuum Pipe Nut
CAUTION:
Refer to Fastener Caution . Tighten 5 N. m (44 lb in) |
| 5 | Vacuum Pipe Nut Tighten 5 N. m (44 lb in) |
