EGR Pipe, Brace, and Hoses Removal
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

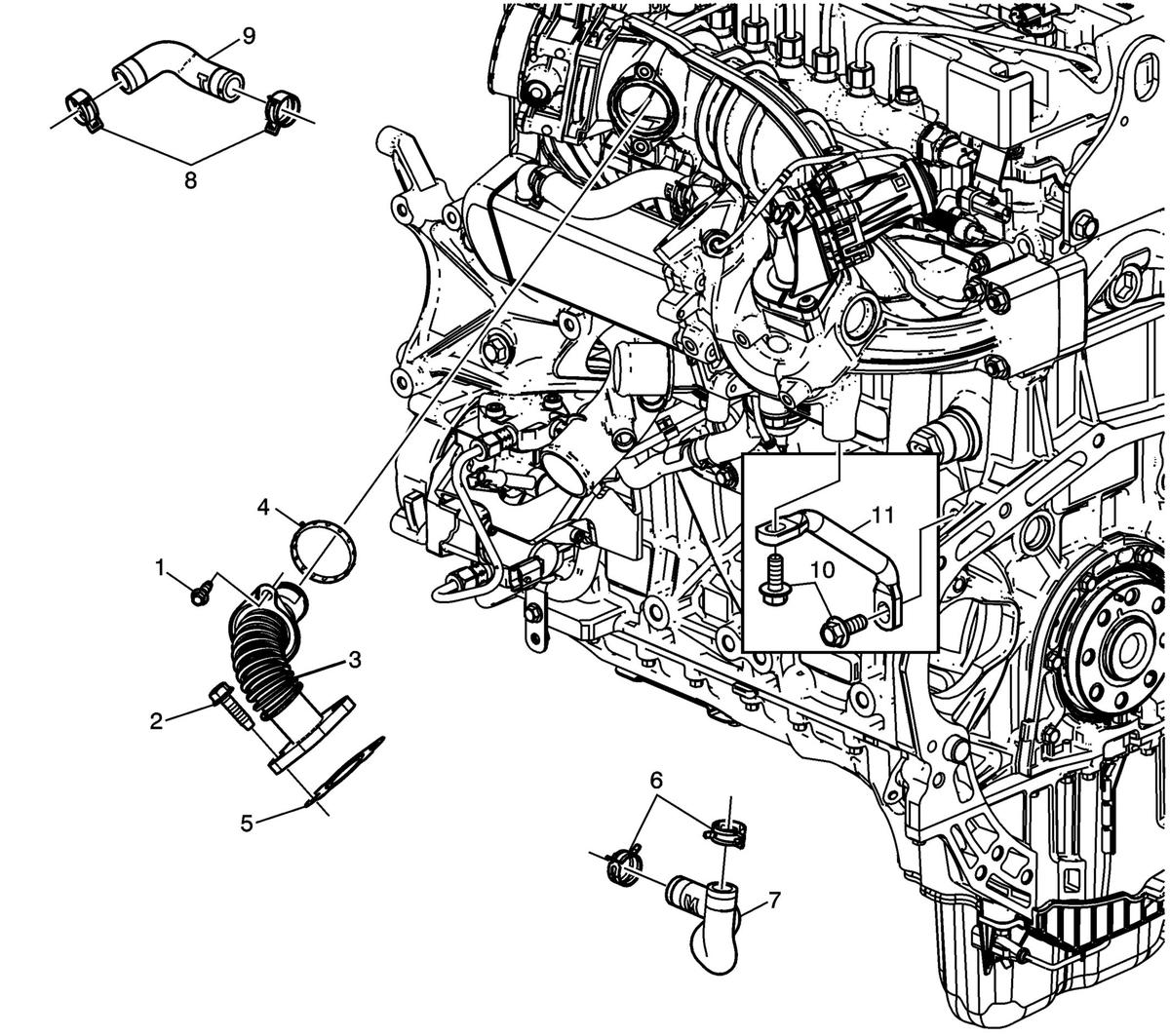

EGR Pipe, Brace, and Hoses Removal
| Callout | Component Name |
|---|---|
| 1 | Exhaust Gas Recirculation Pipe Bolt |
| 2 | Exhaust Gas Recirculation Pipe Bolt |
| 3 | Exhaust Gas Recirculation Pipe |
| 4 | Exhaust Gas Recirculation Pipe Gasket
NOTE:
Discard seal, it is not reusable. |
| 5 | Exhaust Gas Recirculation Pipe Gasket
NOTE:
Discard seal, it is not reusable. |
| 6 | Thermostat Bypass Hose Clamp |
| 7 | Exhaust Gas Recirculation Manifold Cooling Return Hose |
| 8 | Thermostat Bypass Hose Clamp
NOTE:
Remove and DISCARD the clamps. |
| 9 | Exhaust Gas Recirculation Manifold Cooling Feed Hose |
| 10 | Exhaust Gas Recirculation Manifold Brace Bolt |
| 11 | Exhaust Gas Recirculation Manifold Brace |
